DiMenSiOnS/SpecificatiOnS (trOWel)

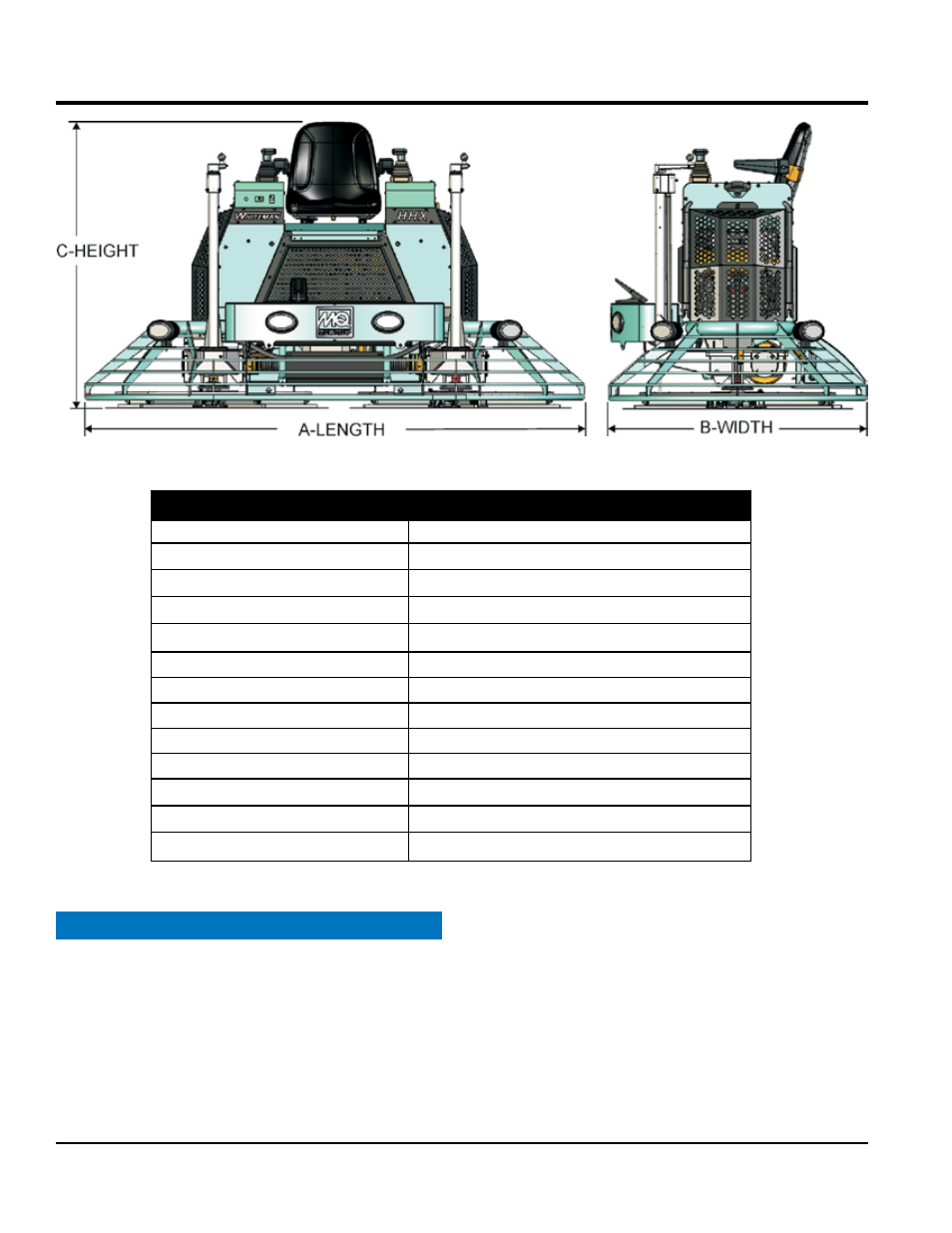

Figure 1. HHX Dimensions
Table 1. HHX Specifications
SpeCIFICaTION paRameTeR HHXg5 (vaNguaRD)
A–Length – in. (cm) 98.00 (249)
B–Width – in. (cm) 50.0 (127)
C–Height – in. (cm) 54.0 (137.2)
Weight – lbs. (kgs.) Operating 1,397 (634)
Weight – lbs. (kgs.) Shipping 1,472 (668)
Sound Pressure – dBA 2 tbd
Vibration – ft/s2 (m/ s2) 3 tbd
Blade Tip Speed – FPM (m/s) 1425 (7.24)
Fuel Tank – gallons (liters) 9 (34)
Rotor – RPM 40 to 170
Path Width – in. (cm) 91 (231)
Hydraulic Oil4 Whiteman P/N 10139 0r ISO 680
NOTICE
1. Sound pressure is "A" weighted . Measured at the
operators ear position while the ride-on trowel is
operating at full throttle on concrete in a manner
most often experienced in “normal ” circumstances.
Sound pressure may vary depending upon the
condition of the concrete. Hearing protection is always
recommended.
2. The vibration level indicated is the maximum RMS
(Root Mean Square) value obtained at the handle grip
while operating the ride-on trowel on curing concrete
in a manner most often experienced in “normal ”
circumstances. Values were obtained from all three
axes of motion. The values shown represent the
maximum RMS value from these measurements.
