PAGE 24 — MS120 HYDRAULIC MIXER • OPERATION AND PARTS MANUAL — REV. #0 (07/10/08)
OPERATION
DUMPING (MANUAL)
1. Release drum lock lever by pushing lever into vertical
position (Figure 22).
2. Pull dump handle downward to discharge (empty) the
drum. Move dump handle upward to return it to vertical
position. (Figure 23).
3. Drum lock lever automatically moves back to horizontal
position, locking the drum back into vertical position.
4. Inspect for proper functionality before starting the engine
or engaging blades. Any binding of material between the
mixing blades and drum will cause the handle to quickly
rotate if not in the “up and locked” position.

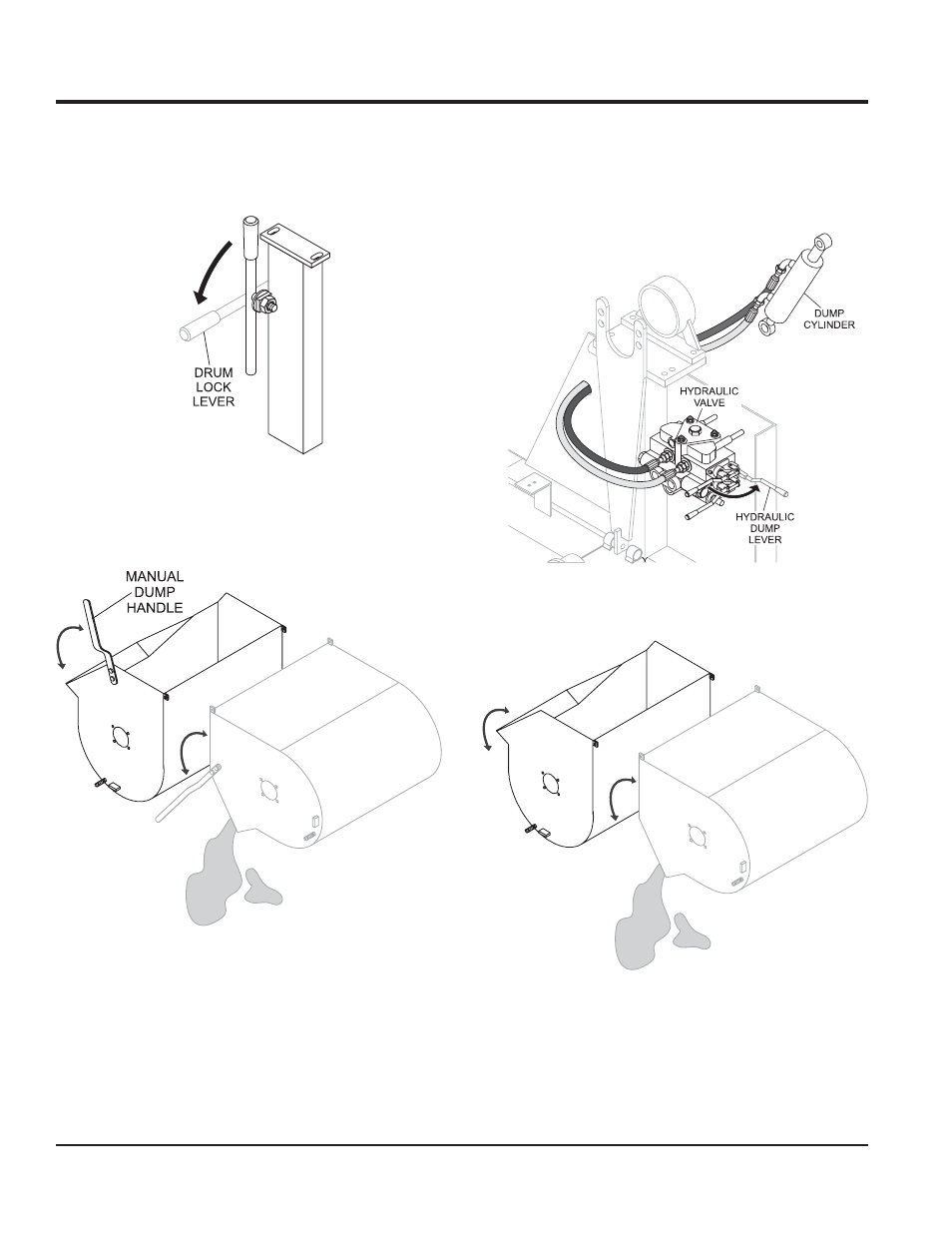

Figure 24. Hydraulic Dump Lever
Figure 23. Manual Dump Handle
Figure 22. Drum Lock Lever
DUMPING (HYDRAULIC)
1. If operating a mixer with hydraulic dump capability, pull
hydraulic dump lever (Figure 24) outward to place drum
in dump position (Figure 25).
Figure 25. Hydraulic Dump
2. Push hydraulic dump lever inward to place drum back
in vertical position.
