PAGE 20 — MQ62TDD TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #0 (07/30/09)
ENGINE COMPONENTS
Figure 5 illustrates the location of the basic components
for the Deutz engine. The function of each component is
described below:
1. Oil Filter – Replace this filter as recommended in the
maintenance section of this manual
2. Fuel Filter – Replace or clean the fuel pump or fuel
filter as specified in the maintenance section of this
manual.
3. Engine – This pump uses a 29 horsepower air-cooled,
2-cylinder, four stroke Deutz diesel engine. See Deutz
engine owners manual for more detailed information.
4. Oil Filler Port Cap Upper – Remove this cap to add
engine oil to the crankcase. Fill with recommended type
oil as specified in the maintenance section of this
manual.
5. Air Cleaner – Prevents dirt and other debris from
entering the fuel system. Remove wing-nut on top of
air filter cannister to gain access to filter element.
Replace with only manufactures recommended type
air cleaner.
6. Cooling Fan Blades – Make sure that the blades of
the cooling fan are not bent or broken. A damaged
fan blade can cause the engine to run hot and overheat.
7. Starter Motor/Solenoid – +12 VDC electrical device
used to engage the flywheel when starting the engine.
8. Fuel Solenoid – Stops the flow of fuel into the injection
system when the ignition key is in the OFF position.
When ignition key is in the ON position fuel will flow
into the injection system.
9. Alternator – Provides power to the electrical system.
Replace with only manufactures recommended type
alternator. s switch will shutdown the engine
10. Fan V-Belt – ALWAYS make sure V-belt is properly
tensioned. A loose or defective V-belt can adversely
affect the performance of the pump.
11. Speed Control Lever – Regulates engine speed.
When pumping always place this lever in the high
engine speed position.
12. Dipstick – Remove dipstick to determine if engine oil
is low. Maintain oil level at the "H "marking on the
dipstick.
NEVER run engine with low oil.
13. Control Box – Includes ignition switch, reset switch
and engine warning staus indicators.
14. Oil Filler Port Cap Lower – Remove this cap to add
engine oil to the crankcase. Fill with recommended type
oil as specified in the maintenance section of this
manual.
15. Crankcase Drain Plug – Remove this plug to drain
engine oil from the crankcase. Replace with
recommended engine oil as specified in the
maintenance section of this manual.
16. Oil Sending Unit – In the event of low oil in the engine
crankcase or low oil pressure, the indicator lamp will
illuminate. STOP the engine immediately if this occurs.
NEVER run the engine when this lamp is lit.
17. Muffler/Guard – DO NOT touch the muffler when
engine is running. The muffler can become extremely
hot, causing severe burns. NEVER run the pump with
the muffler guard removed.

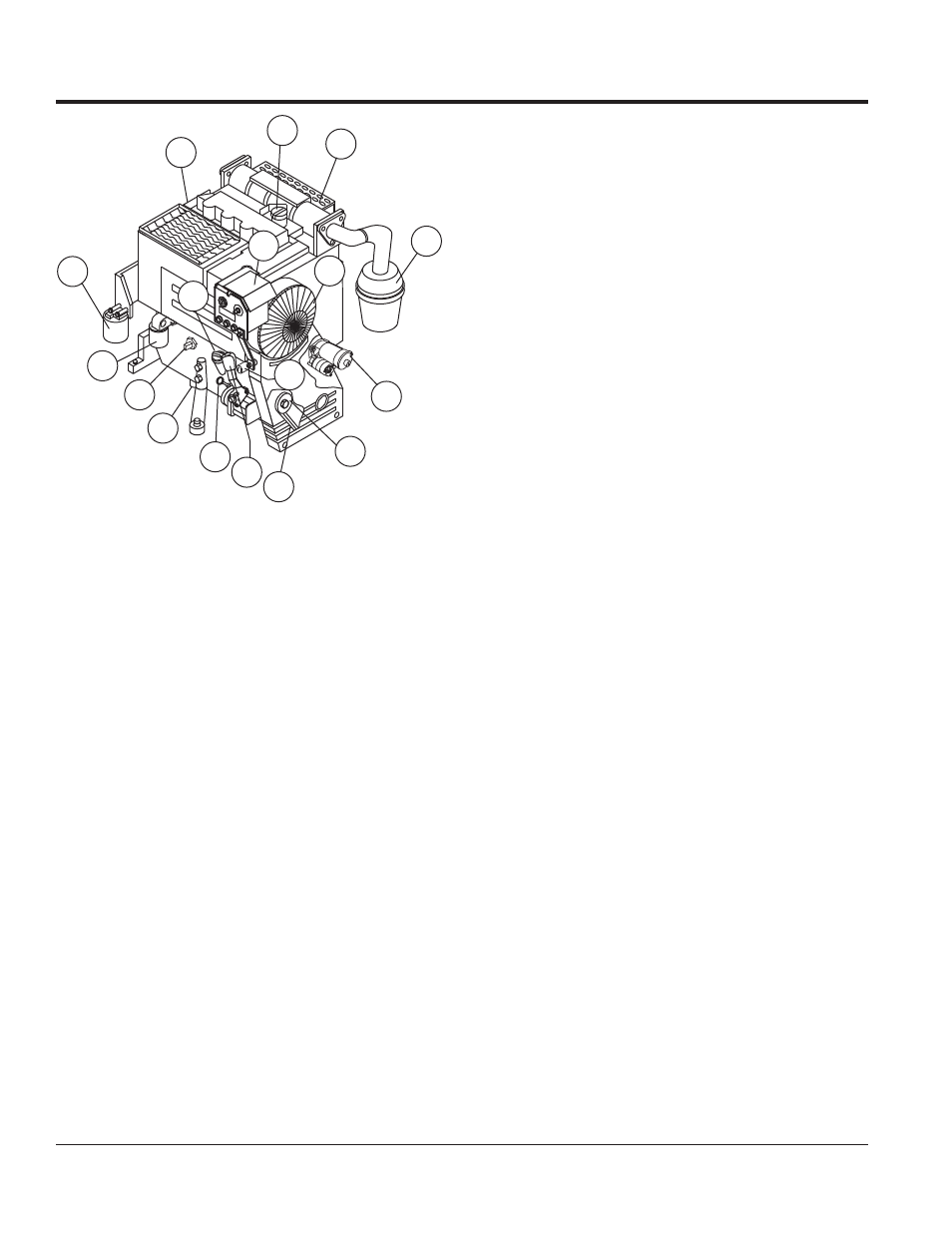

Figure 5. Deutz Engine Basic Components
15
5
9
2
12
4
3
10
11
8
1
16
13
14
17
6
7
