mvh406dsz/dsCpas pLaTe COmpaCTOR • OpeRaTiOn and paRTs manuaL — Rev. #7 (02/28/14) — page 25
vibrator Oil Level Check
1. In every 100 hours of operation, with the machine
positioned horizontally, use a 3/4” (19 mm) wrench and
remove vibrator oil level guage/dipstick (Figure 30).
Visually inspect and see if vibrator oil level is up to
filler port. Be sure to clean area around check hole to
prevent dirt and dust from entering.

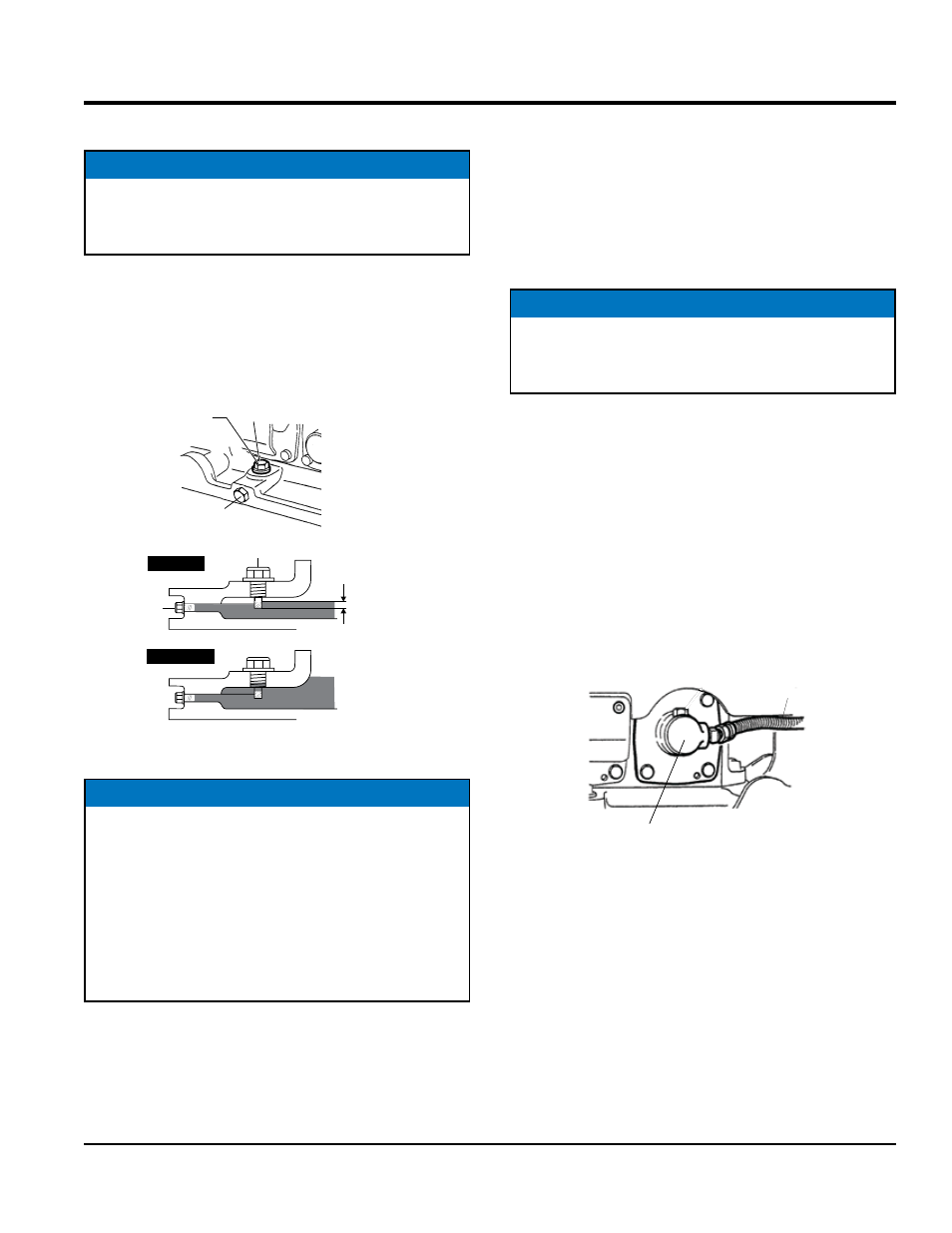

Figure 30. Vibrator Oil Drain and Check Plugs
NOTICE
ALWAYS clean the area around the vibrator oil level
check plug before removing oil check plug. This will
prevent dirt and debris from entering the system.
OILGAUGE/
DIPSTICK
EXCITER OIL LEVEL CASING NORMAL
OILGAUGE/
DIPSTICK
DRAIN
BOLT
FILL TO 600CC
MAXIMUM
CORRECT
EXCITER OIL LEVEL CASING OVERFILLED
INCORRECT
DRAIN
BOLT
ADD 10W-30 WT.
MOTOR OIL
HERE
NOTICE
The oil fill gauge (dipstick) should be threaded down
completely when checking the oil level. Quickly inserting
and removing the dipstick from the reservoir will provide
inaccurate readings and possibly lead to overfilling the
exciter casing.
Overfilling the exciter casing will overload the engine
and adversely affect performance. dO nOT OveRFiLL
600CC Maximum oil level!
MAINTENANCE
draining vibrator Oil
1. Replace vibrator oil after first 200 hours and in every
1,000 hours of operation.
2. Position handle bar vertically (storage position).
3. Using a 14 mm wrench remove the vibrator oil drain
plug (Figure 30) from the vibrating plate assembly.
4. After hydraulic oil has been completely drained from
machine, fill with 10W-30 motor oil to the appropriate
safe operating level (Figure 30).
5. Reinstall drain plug into vibrating plate assembly. Apply
seal tape or Loctite #575 to thread portion of drain plug.
draining hydraulic Oil
1. Disconnect the hydraulic hose (Figure 31) connected
to the hydraulic oil cylinder.
2. Push the travel lever back and forth to drain the hydraulic
oil from the hand pump (hydraulic oil reservoir).
Figure 31. Hydraulic Oil Cylinder/Hose
3. After draining hydraulic oil, reconnect hydraulic oil
hose to cylinder.
4. Place handle in upright position. Pull travel lever all the
way back (reverse), and using a rope, secure travel
lever to hand grip.
NOTICE
For draining oil through level check hole, have the
machine inclined with a sleeper or the like placed under
the compaction plate on opposite side.
HYDRAULIC
HOSE
HYDRAULIC
CYLINDER
