mvh406dsz/dsCpas pLaTe COmpaCTOR • OpeRaTiOn and paRTs manuaL — Rev. #7 (02/28/14) — page 19
7. If the engine fails to start, dO nOT continue to rotate
the ignition key for more than 5 seconds. Return the
key to the Run position and wait 10 seconds before
starting again

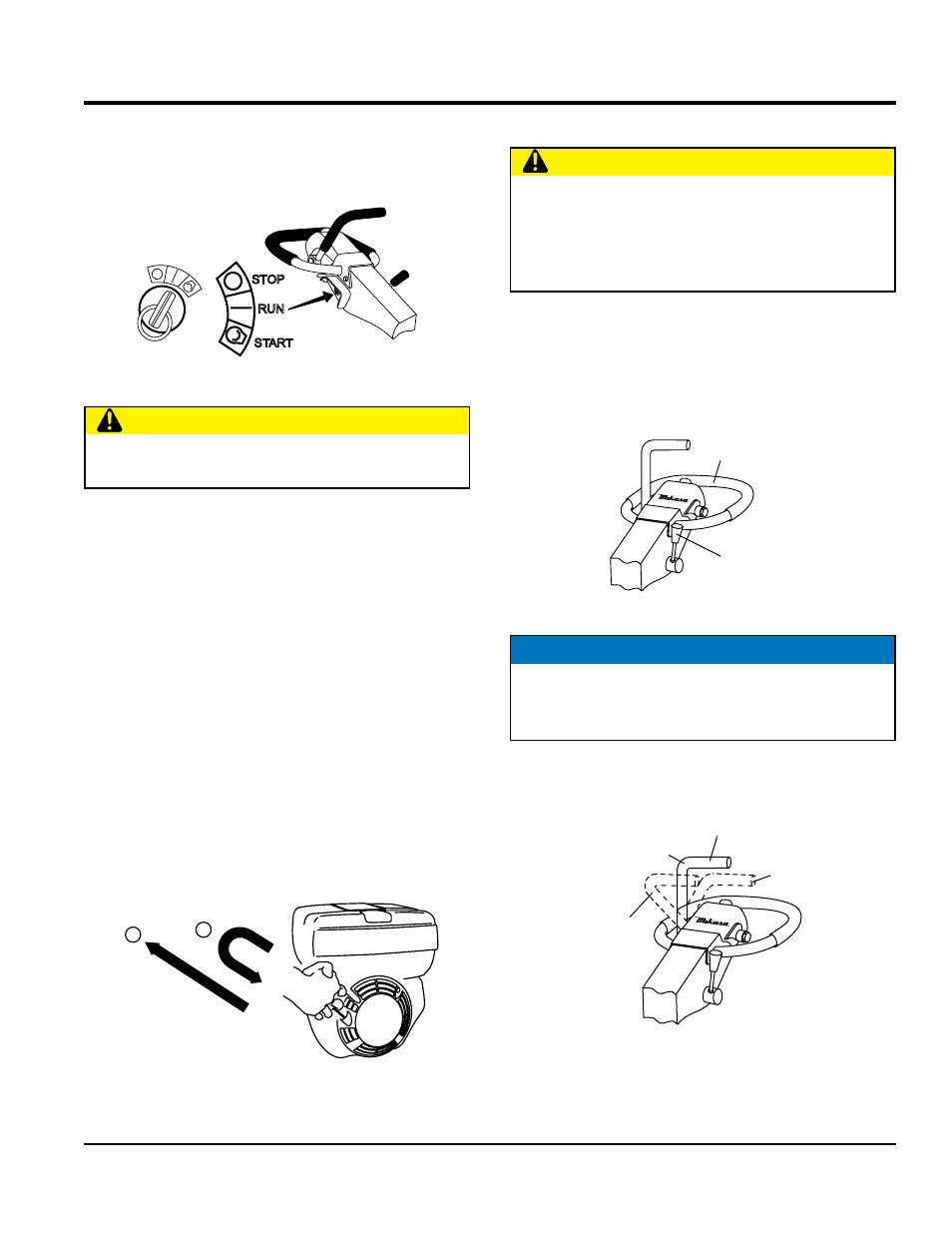

Figure 14. Starter Switch (Option)
;
8. After starting the engine, continue to warm up the
engine for about 3 to 10 seconds especially in cold
weather.
9. If the buzzer does not stop sounding after the engine
has started, shutdown engine immediately and check
engine oil level. The buzzer functions as a engine oil
level alarm warning device.
Recoil Start
1. Place the throttle lever (Figure 13) in the START
position (center).
2. Place the travel lever in the neutral position (center).
3. Grasp the starter grip (Figure 15) and slowly pull it
out. The resistance becomes the hardest at a certain
position, corresponding to the compression point. Pull
the starter grip briskly and smoothly for starting.
Figure 15. Engine Start Handle
4. If the engine does not start, repeat steps 1 through 3.
STOP
RUN
START
CauTiOn
While the engine is running, never try to turn the ignition
key to the START position.
1
2
OpERATION
TRaveLing
1. Grasp the compactor's hand grip, and move the engine
throttle lever (Figure 16) quickly to the fast position.
2. With the throttle lever in the fast position, the engine
speed should be around 3,600 RPM, therefore
engaging the centrifugal clutch.
Figure 16. Throttle Lever (Fast)
3. To make the compactor move in the forward direction
push the travel lever ( Figure 17) forward.
Figure 17. Travel Lever
CauTiOn
Make sure to follow all safety rules referenced in
the safety section of this manual before operating
compactor. Keep work area clear of debris and other
objects that could cause damage to the compactor or
bodily harm.
HAND
GRIP
FULL THROTTLE
POSITION
NOTICE
ALWAYS move the throttle lever quickly without
hesitation, because increasing the engine speed slowly
causes the clutch to slip.
NEUTRAL
FORWARD
REVERSE
TRAVEL
LEVER
