vibrator Oil Level Check
1. In every 100 hours of operation, with the machine
positioned horizontally, use a 3/4” (19 mm) wrench and
remove vibratoroil level check plug (Figure 33). Visually
inspect and see if vibrator oil level is up to filler port.
Be sure to clean area around check hole to prevent
dirt and dust from entering.

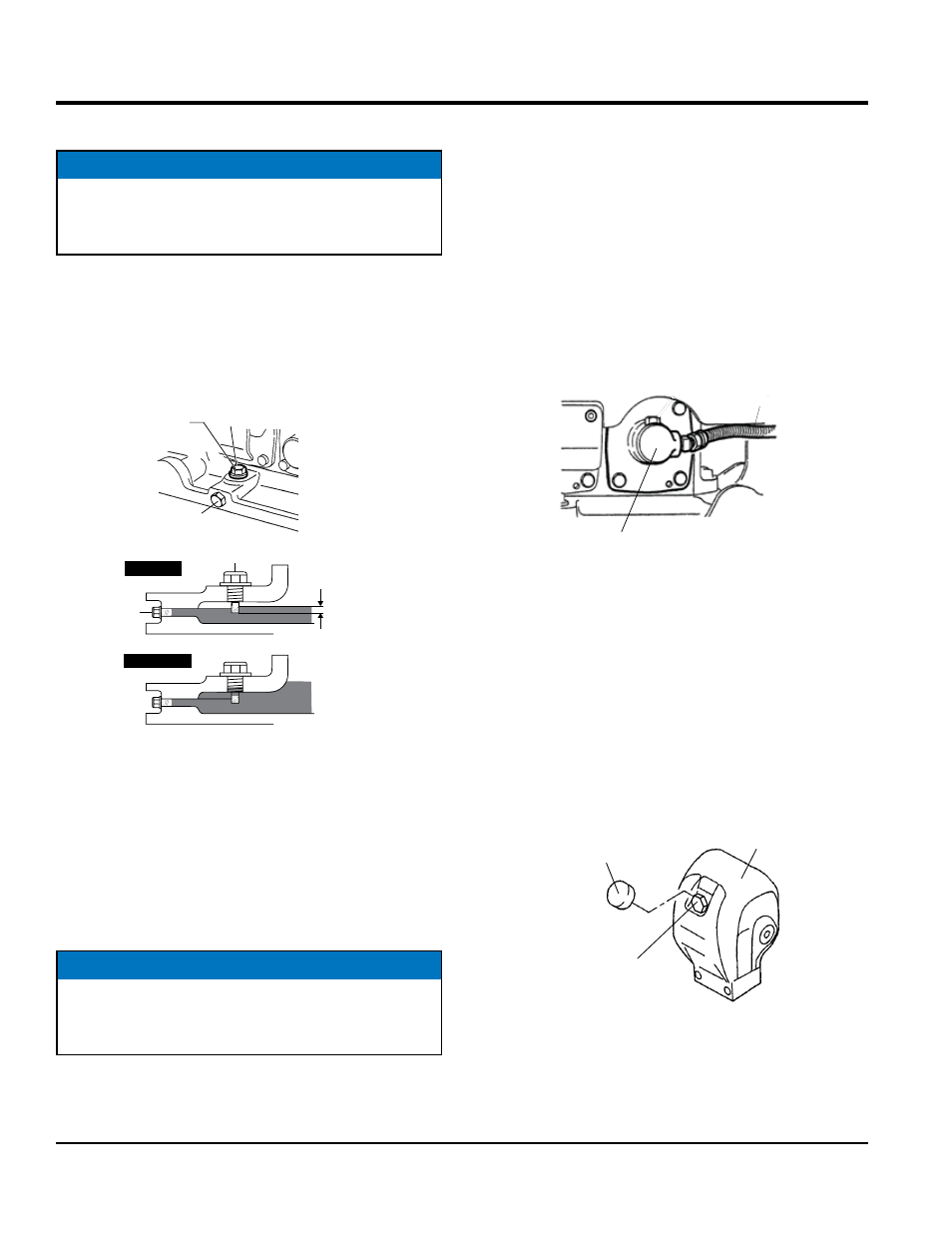

Figure 33. Vibrator Oil Drain and Check Plugs
draining vibrator Oil
1. Replace vibrator oil after first 200 hours and in every
1,000 hours of operation. Oil capacity is 600 cc.
2. Position handle bar vertically (storage position).
3. Using a 14 mm wrench remove the vibrator oil drain
plug (Figure 33) from the vibrating plate assembly.
NOTICE
ALWAYS clean the area around the vibrator oil level
check plug before removing oil check plug. This will
prevent dirt and debris from entering the system.
OILGAUGE/
DIPSTICK
EXCITER OIL LEVEL CASING NORMAL
OILGAUGE/
DIPSTICK
DRAIN
BOLT
FILL TO 600CC
MAXIMUM
CORRECT
EXCITER OIL LEVEL CASING OVERFILLED
INCORRECT
DRAIN
BOLT
ADD 10W-30 WT.
MOTOR OIL
HERE
NOTICE
For draining oil through level check hole, have the
machine inclined with a sleeper or the like placed under
the compaction plate on opposite side.
MAINTENANCE
4. After hydraulic oil has been completely drained from
machine, fill with 10W-30 motor oil to the appropriate
safe operating level (Figure 33).
5. Reinstall drain plug into vibrating plate assembly. Apply
seal tape or Loctite #575 to thread portion of drain plug.
draining hydraulic Oil
1. Disconnect the hydraulic hose (Figure 34) connected
to the hydraulic oil cylinder.
2. Push the travel lever back and forth to drain the hydraulic
oil from the hand pump (hydraulic oil reservoir).
Figure 34. Hydraulic Oil Cylinder/Hose
3. After draining hydraulic oil, reconnect hydraulic oil
hose to cylinder.
4. Place handle in upright position. Pull travel lever all the
way back (reverse), and using a rope, secure travel
lever to hand grip.
adding hydraulic Oil
1. Remove the breather cap and oil plug (Figure 35) from
thehydraulic oil tank using a 24mm hex socket.
Figure 35. Hydraulic Oil Tank
HYDRAULIC
HOSE
HYDRAULIC
CYLINDER
BREATHER
CAP
OIL
TANK
HYDRAULIC
OIL PLUG
(24 MM WRENCH)
