mvh306ds2/dsCpas pLaTe COmpaCTOR • OpeRaTiOn and paRTs manuaL — Rev. #7 (02/04/14) — page 15

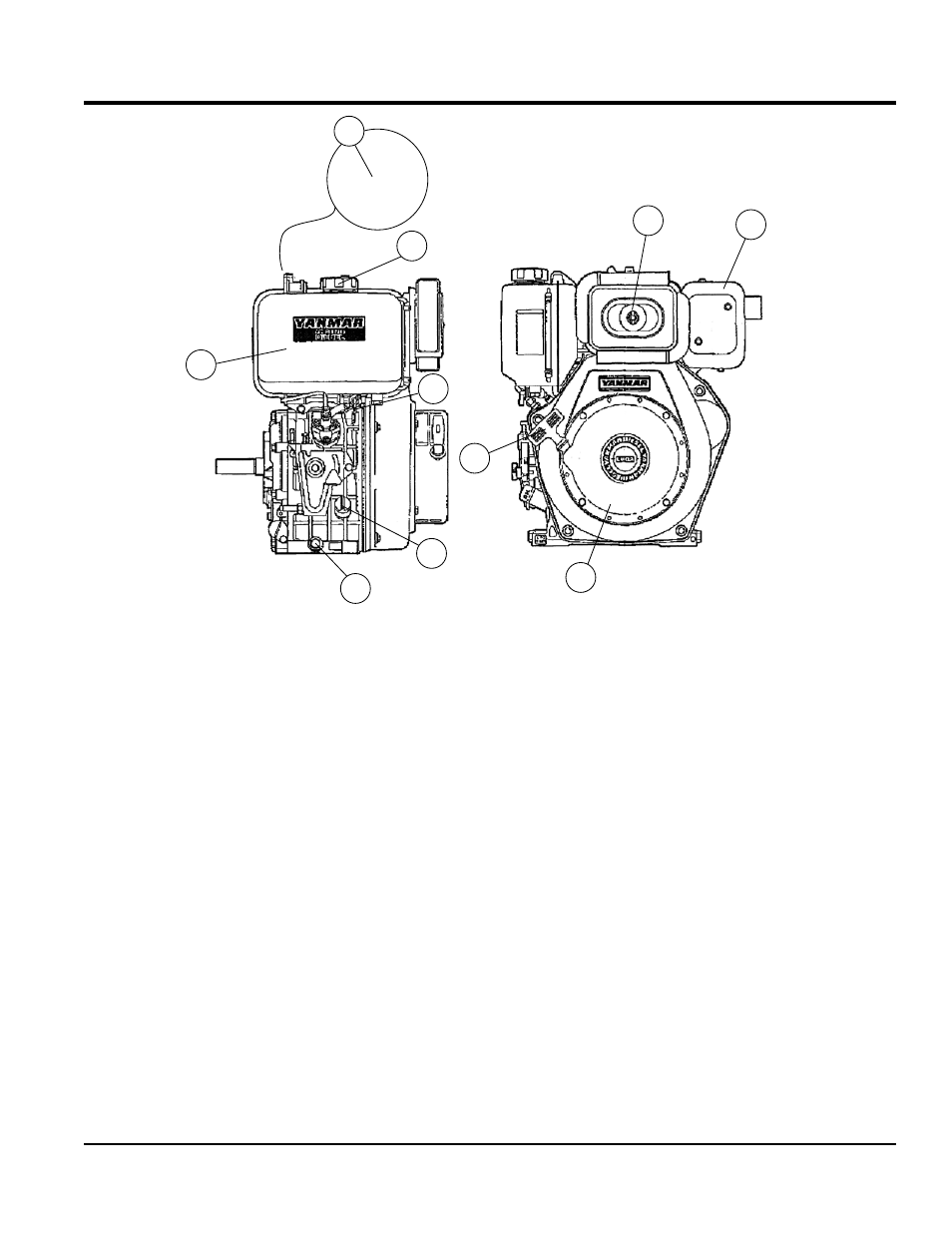

Figure 3. Yanmar L70V6 Engine Components
1
2
10
5
3
4
8
7
6
9
bASIC ENGINE
engine COmpOnenTs
Figure 3 illustrates the location of the major components
for the Yanmar L70V6 diesel engine. The function of each
component is described below
1.
Fuel Filler Cap – Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tighten
securely. dO nOT over fill.
2. Fuel Tank – Capacity is 3.5 quarts (3.31 liters) of
diesel fuel.
3. Air Cleaner – Prevents dirt and other debris from
entering the fuel system. Remove wing-nut on top of
air filter cannister to gain access to filter element.
4. muffler – Used to reduce noise and emissions.
5. Recoil starting handle (pull rope) – Type of engine
starting method. Alternate type would be electric start
(ignition key).
6. Recoil Starter – Manual-starting method. Pull the
starter grip until resistance is felt, then pull briskly and
smoothly.
7. Oil Filler Cap / dipstick – Remove this cap to add oil
to the engine crankcase. Read dipstick to determine if
oil level is low. dO nOT over fill.
8. Oil Drain Plug – Unscrew plug to drain oil from engine
crankcase. Dispose of oil in a safe manner.
9. decompression Lever – Press down before starting
engine. To prevent damage to engine, dO nOT use for
any other purpose.
10. Fuel Cock – Controls the flow of diesel fuel to the
carburetor. Must be in the ON position when starting
and running the engine.
