mvh306ds2/dsCpas pLaTe COmpaCTOR • OpeRaTiOn and paRTs manuaL — Rev. #7 (02/04/14) — page 25

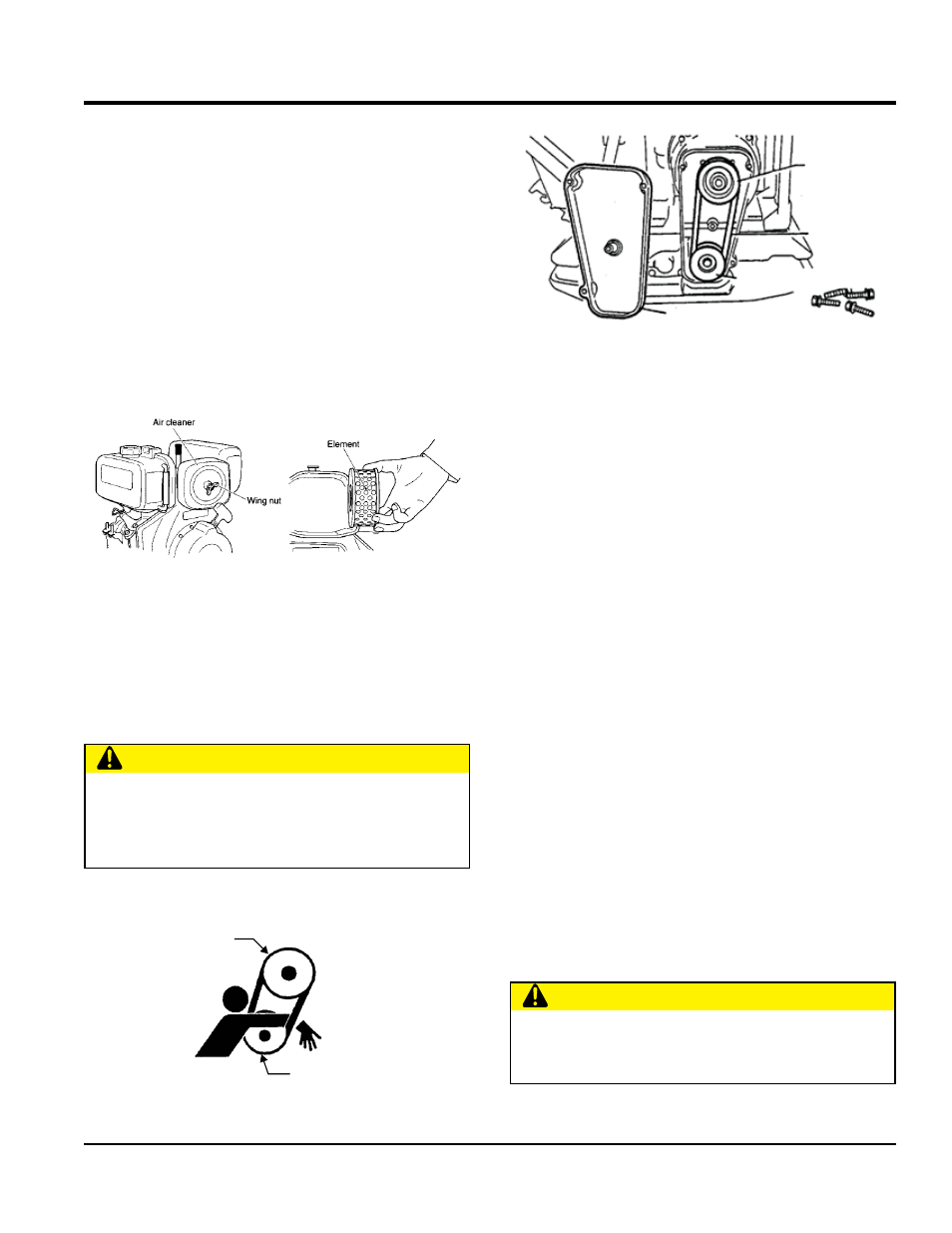

MAINTENANCE
engine Oil Replacement:
1. Replace engine oil, in first 25 hours of operation and
every 50 to 100 hours afterwards.
2. Oil may be drained more easily when it is warm
afteroperation (For more details, see separate engine
Owner's Manual).
air Filter (every 6 months or 400 hours)
1. The air filter element (Figure 30) should be cleaned
because a clogged air cleaner can cause poor
engine starting, lack of power and shorten engine life
substantially.
Figure 30. Engine Air Filter and Element
2. To clean or replace air filter loosen the wing nut on the
air filter housing (Figure 30) remove the cover and take
out air filter cartridge. If only cleaning of the air filter
is desired blow through the air filter cartridge from the
inside, moving a jet of dry compressed air up and down
until all dust is removed.
Figure 31. V-Belt Hazard
CauTiOn
neveR attempt to check the V-belt with the engine
running. Severe injury can occur if your hand gets
caught between the V-belt and the clutch (Figure 31).
Always use safety gloves.
CLUTCH
PULLEY
VIBRATOR
PULLEY
Figure 32. V-Belt Check
Replacing the v-belt
„ Remove the belt cover (Figure 32). Engage an offset
wrench 3/4”(19 mm) or the like to vibrator pulley (lower)
fastening bolt. Engage wastecloth or the like at midway
of V-belt on the left side and whilepulling it back strongly,
rotate the offset wrench clockwise so that the V-belt will
come off.
Reinstalling the v-belt
„ Engage V-belt to lower vibrator pulley and push the V-belt
to leftside of upper clutch and, in the same manner as
in removal, rotate offset wrench clockwise so that the
V-belt goes back on.
Checking Clutch
„ Check the clutch simultaneously with V-belt checking.
With belt cover removed, check outer drum of the clutch
for seizure and "V" groove for wear or damage with your
eyes. Clean the "V" groove as necessary. If the shoe is
worn, power transmission becomes deficient and slipping
will result.
Replacing Clutch
„ Remove V-belt. Remove bolt at engine power output by
giving a light tap with a hammer to an engaged wrench
and rotate bolt counterclockwise. Remove clutch with a
pulley extractor. To reinstall, reverse the procedure.
BELT COVER
VIBRATOR PULLEY
V-BELT
CLUTCH
CauTiOn
When ever the compactor's vibration becomes weak
or lost during normal operation regardless of operation
hours, check the V-belt and clutch immediately.
