Page 32
PAGE 32 — MRH800DS2 VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #1 (04/12/11)
MAINTENANCE

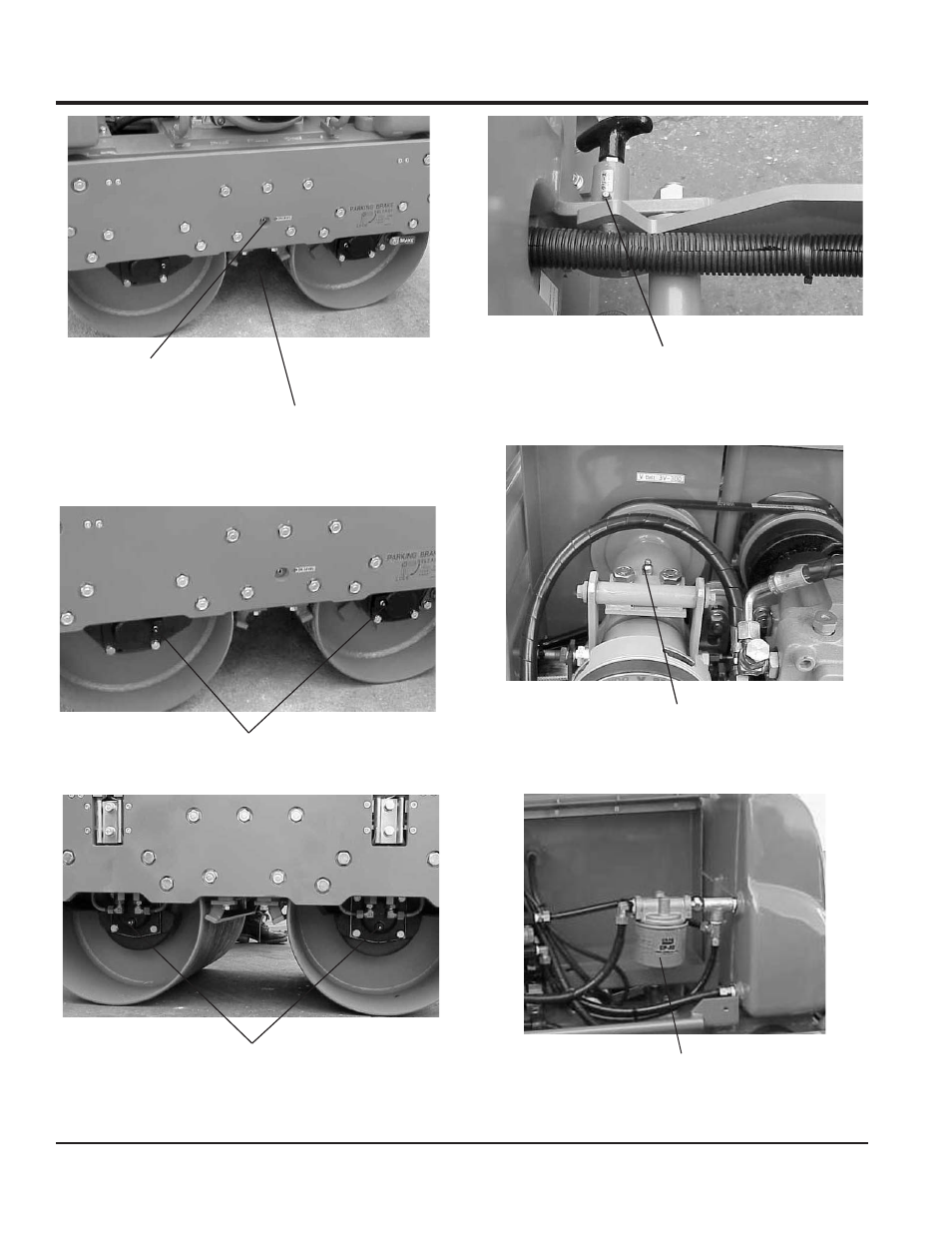

Figure 25. Vibrator Oil Maintenance
Figure 26. Bearing Cover Maintenance
VIBRATOR OIL
LEVEL PLUG
VIBRATOR OIL
DRAIN PLUG
BEARING COVER
GREASE FITTING
BEARING COVER
GREASE FITTING
HANDLE BAR RELEASE
PIN GREASE FITTING
Figure 27. Handle Bar Maintenance
Figure 28. Clutch Box Maintenance
Figure 29. Hydraulic Oil Filter Location
CLUTCH BOX
GREASE FITTING
HYDRAULIC OIL FILTER
