PAGE 14 — MRH800DS2 VIBRATORY ROLLER • OPERATION AND PARTS MANUAL — REV. #1 (04/12/11)
DIMENSIONS
Table 3. Dimensions
LENGTH
A 105 in. 2670 mm.
B 57 in. 1445 mm.
C 10 in. 255 mm.
D 22.8 in. 580 mm.
E 13.8 in. 350 mm.
WIDTH
F 27.2 in. 692 mm.
G 13.6 in. 346 mm.
HEIGHT
H 78.3 in. 1990 mm.
I 46.5 in. 1180 mm.
J 37.4 in. 950 mm.
K 41.7 in. 1060 mm.
L 9.6 in. 245 mm.

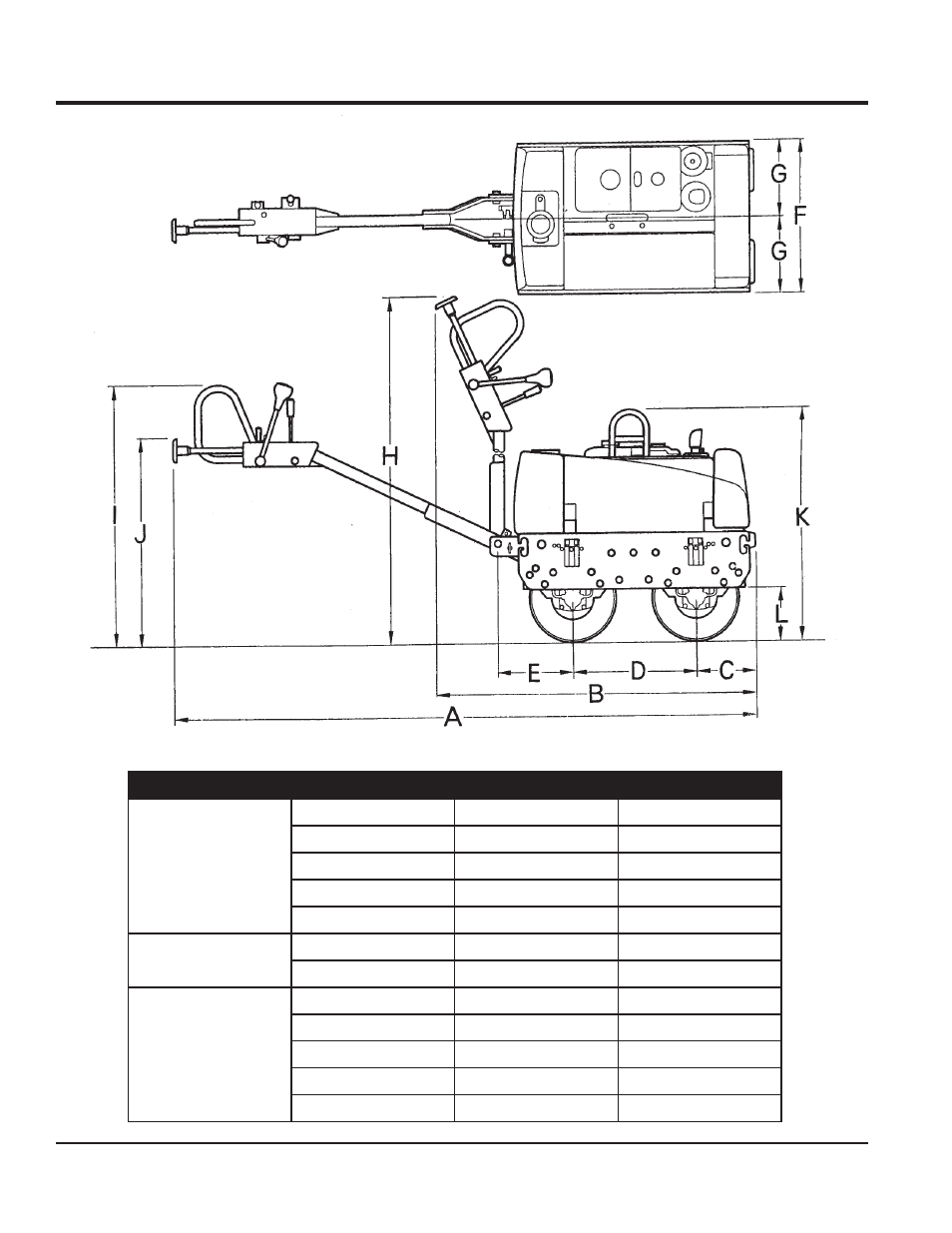

Figure 1. MRH800DS2 Dimensions
