11. Overview GUI Menus
Adjustment mode - Random Access/2
RANDOM ACCESS
ADJUSTMENT MODE
FILE SERVICE
IMAGE SETTINGS
PICTURE TUNING
GEOMETRY
PIP
Select with
−
or
/
then
to return
ADJUSTMENT MODE
Select a path from
below
RANDOM ACCESS
INSTALLATION
SERVICE
Source 6
Select with
−
or
/
then
to return
FILE SERVICE
LOAD
EDIT
RENAME
COPY
DELETE
OPTIONS
Select with
−
or
/
then
to return
RENAME FILE
Filename Src Resolution
video525.c01 1 692x240i
video525.c02 7 692x240i
video525.c10 2 692x240i
Active file : video525.c01
Select with
−
or
/
to accept
to return
COPY FILE
Filename Src Resolution
video525.c01 1 692x240i
video525.c02 7 692x240i
video525.c10 2 692x240i
Active file : video525.c01
Select with
−
or
/
to accept
to return
DELETE FILE
Filename Src Resolution
video525.c01 1 692x240i
video525.c02 7 692x240i
video525.c10 2 692x240i
[ALL]
Active file : video525.c03
Select with
−, /
or
.
to accept
to return
FILE OPTIONS
FILE SORT [NAME]
FILE LOAD [AUTOMATIC]
Select with
−
or
/
to accept
to return
* a ct i ve i t e m
** i t e m n o t i m p l e m e n t e d
*** a ct i ve i f P I P st a t u s O N
Image 11-6

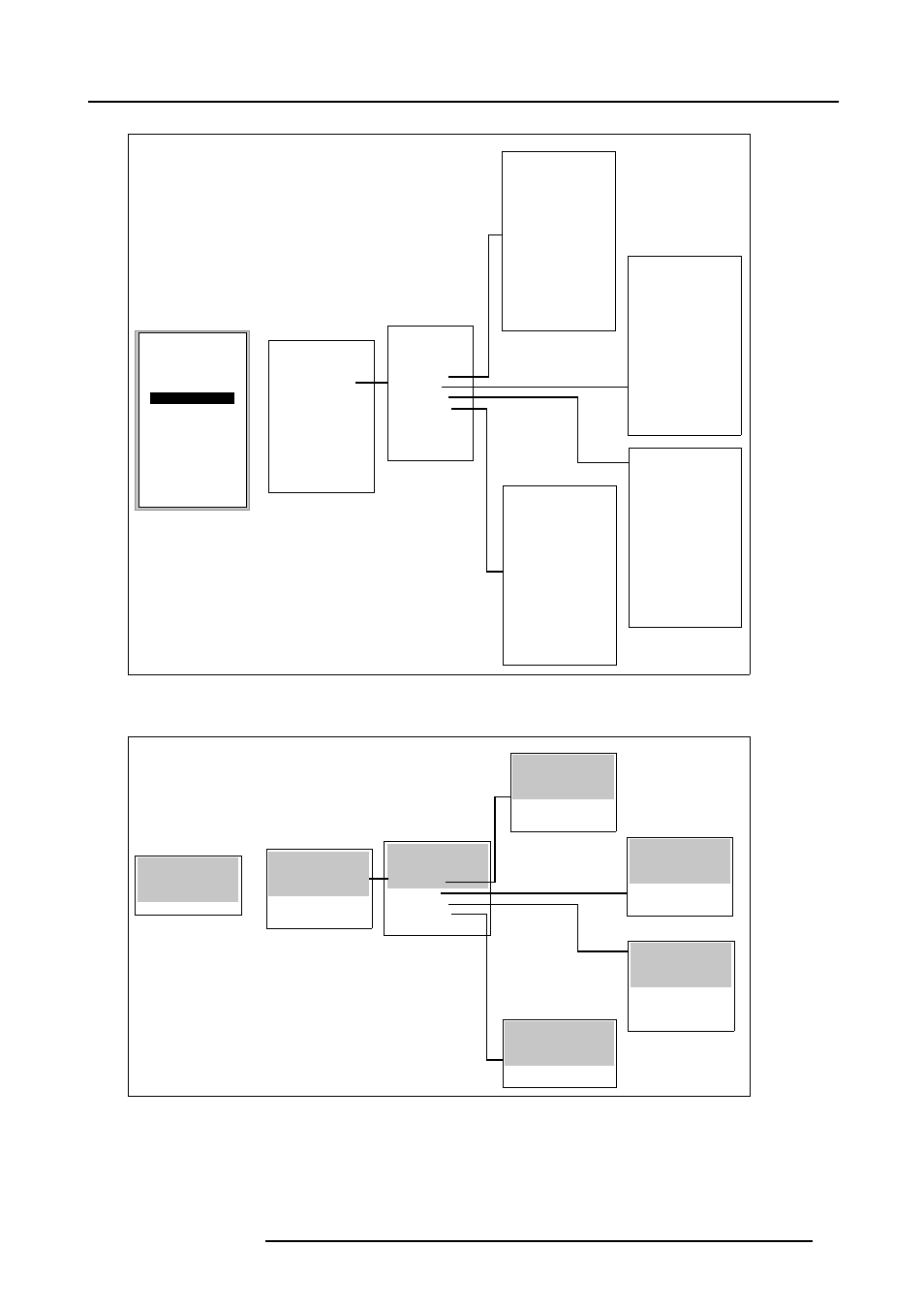

Random access mode, part 2 – On screen menu
FILE SERVICE
LOAD
>EDIT
RENAME
COPY
DELETE
OPTIONS
< RETURN>
Adjustment mode - Random Access/2
ADJUSTMENT MODE
< RETURN>
>RANDOM ACCESS
INSTALLATION
SERVICE
RANDOM ACCESS
< RETURN>
>FILE SERVICE
IMAGE SETTINGS
PICTURE TUNING
GEOMETRY
PIP
RENAME FILE
video625.c01*
video525.c02
video525.c10
< RETURN>
COPY FILE
video625.c01*
video525.c02
video525.c10
< RETURN>
DELETE FILE
video625.c01
video525.c02
video525.c10
[ALL]
< RETURN>
FILE OPTIONS
FILE SORT [NAME]
FILE LOAD [AITOMATIC]
< RETURN>
* active file
* active file > selected
> selected
> selected
Image 11-7
Random access mode, part 2– Menu in Graphical display
