MTS Multipurpose Getting Started User Manual
Page 8
•
Click Start > Programs > MTS TestSuite > Multipurpose Elite.

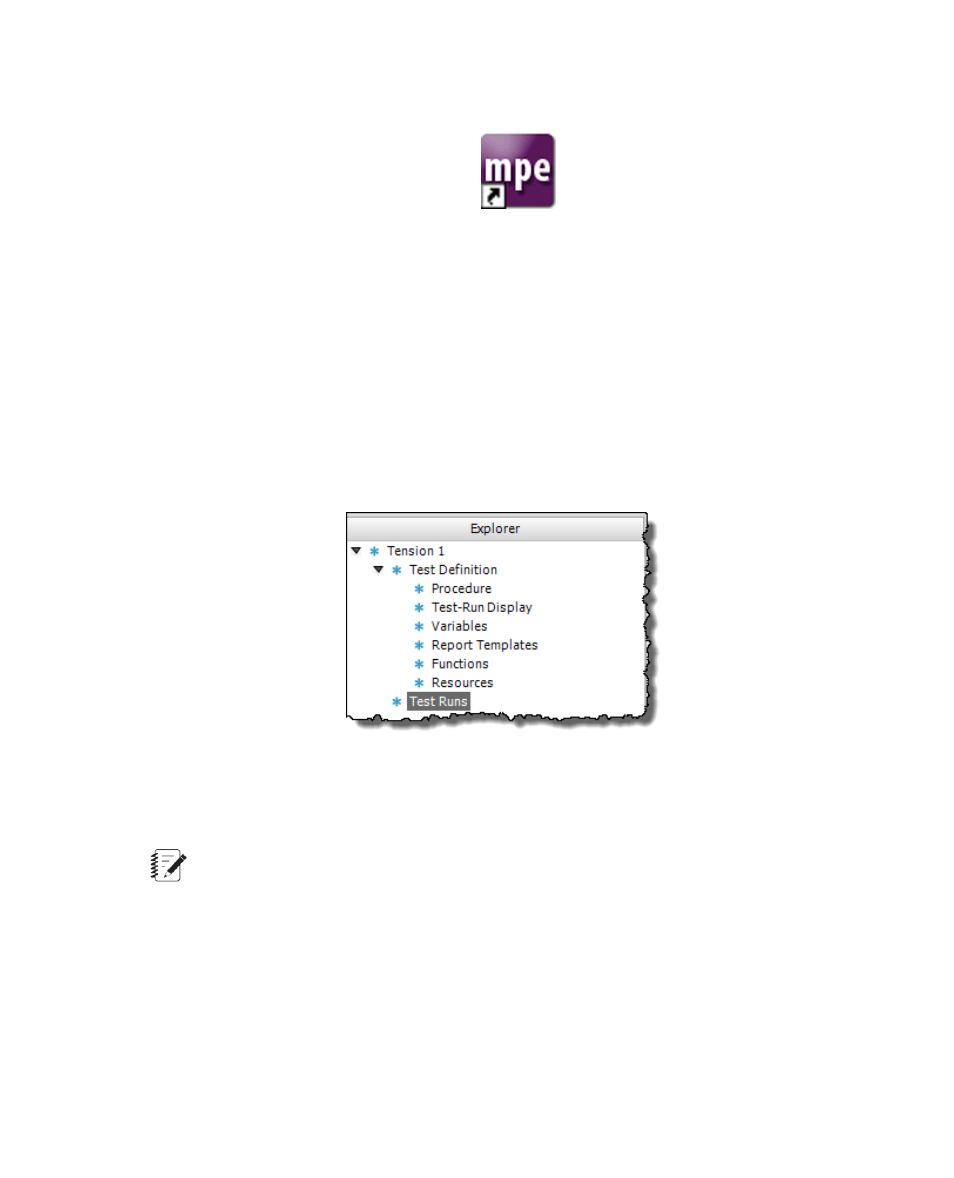

MPE Icon
The application opens and connects to the station configuration. The controller and station configuration
are shown in the title bar, which is labeled Multipurpose (MTS TestSuite Simulation (MTS FlexTest
40):Virt_3-02_CF_LCF.cfg).
1.2.4.0 Familiarize Yourself with the MTS TestSuite Environment
1. On the File menu, click Open Test.
2. In the Open Test window, select Example LCF Strain Test, and then click Open.
3. On the Explorer panel, click the Procedure node to display a graphical view of the test.
Explorer Procedure Node
4. In the Procedure tab, select the Flowchart View and click each test activity and observe its associated
properties.
Note:
A test is created by dragging test activities from the Toolbox panel into the Procedure tab and then
defining the properties for the activities.
5. Review the features in the main window as shown in the following figure, which shows the Multipurpose
Elite application with the Example LCF Strain Test open.
8 MTS TestSuite
1.0 Introduction
