Note:
Ensure that you connect the Drain Out line hose to the HPU reservoir or the drain circuit on the
hardline before you apply hydraulic pressure.
Note:
Remove a fluid cap port plug only when a hose is ready for connection. Retain these plugs for use
during service.

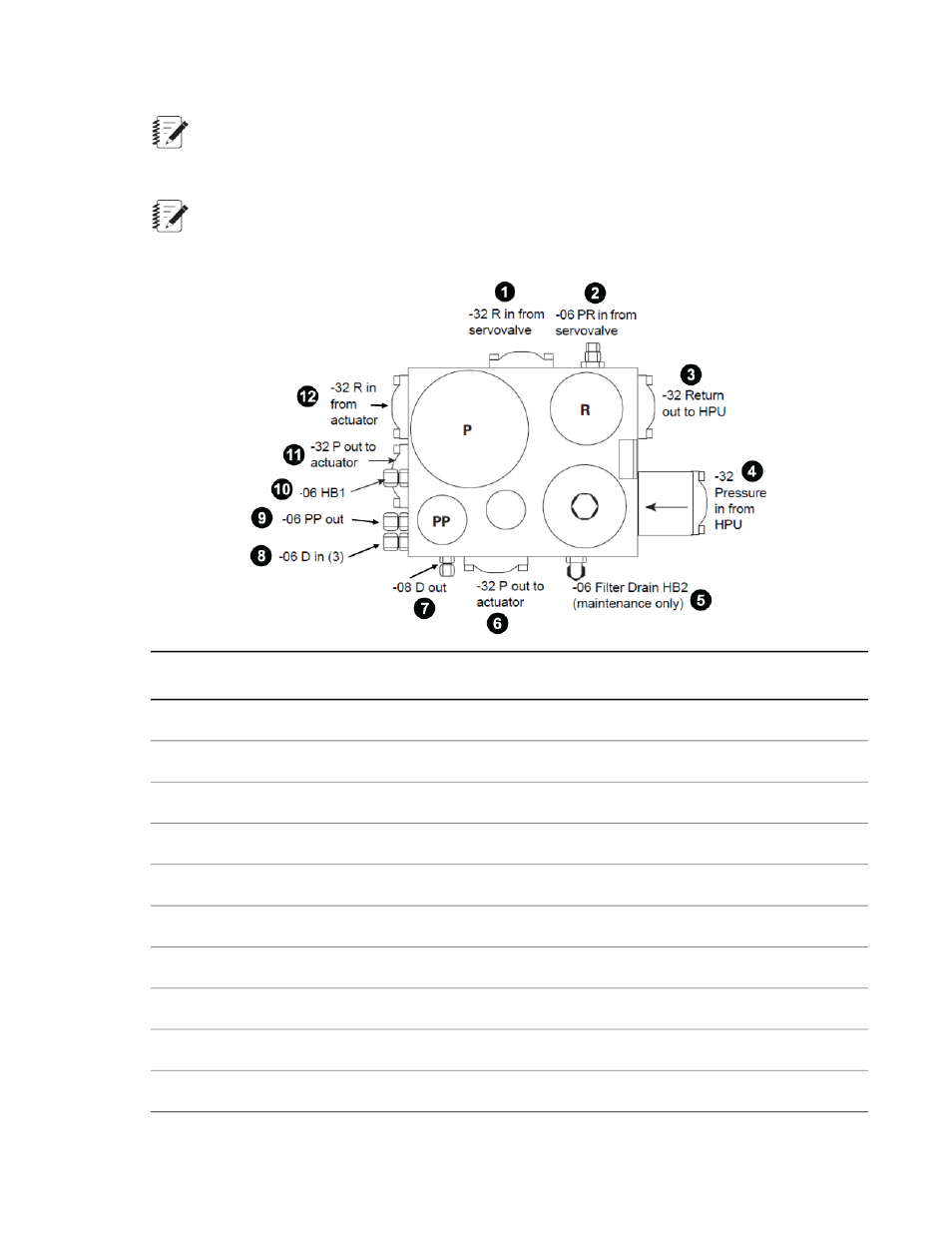

Description Item
Pressure P
Return R
Pilot Pressure PP
-32 Return in from servovalve 1
-06 Pilot Pressure Return in from servovalve 2
-32 Return out to HPU 3
-32 Pressure in from HPU 4
-06 Filter Drain HB2 (maintenance only) 5
-32 Pressure out to actuator 6
-08 Drain out 7
Model 293.32 Hydraulic Service Manifold | 37
Installation
