Page 6
MTS Fundamental™ Bolt Grips and Nut Grips
6
Introduction
Component Identification
The fixture consists of two assemblies: upper assembly indicated by Figure 1 and
Figure 2; Lower assembly indicated by Figure 3 and Figure 4. The wedge faces
(Part 3) have markers for pairs, use wedge faces which have same markers
together.

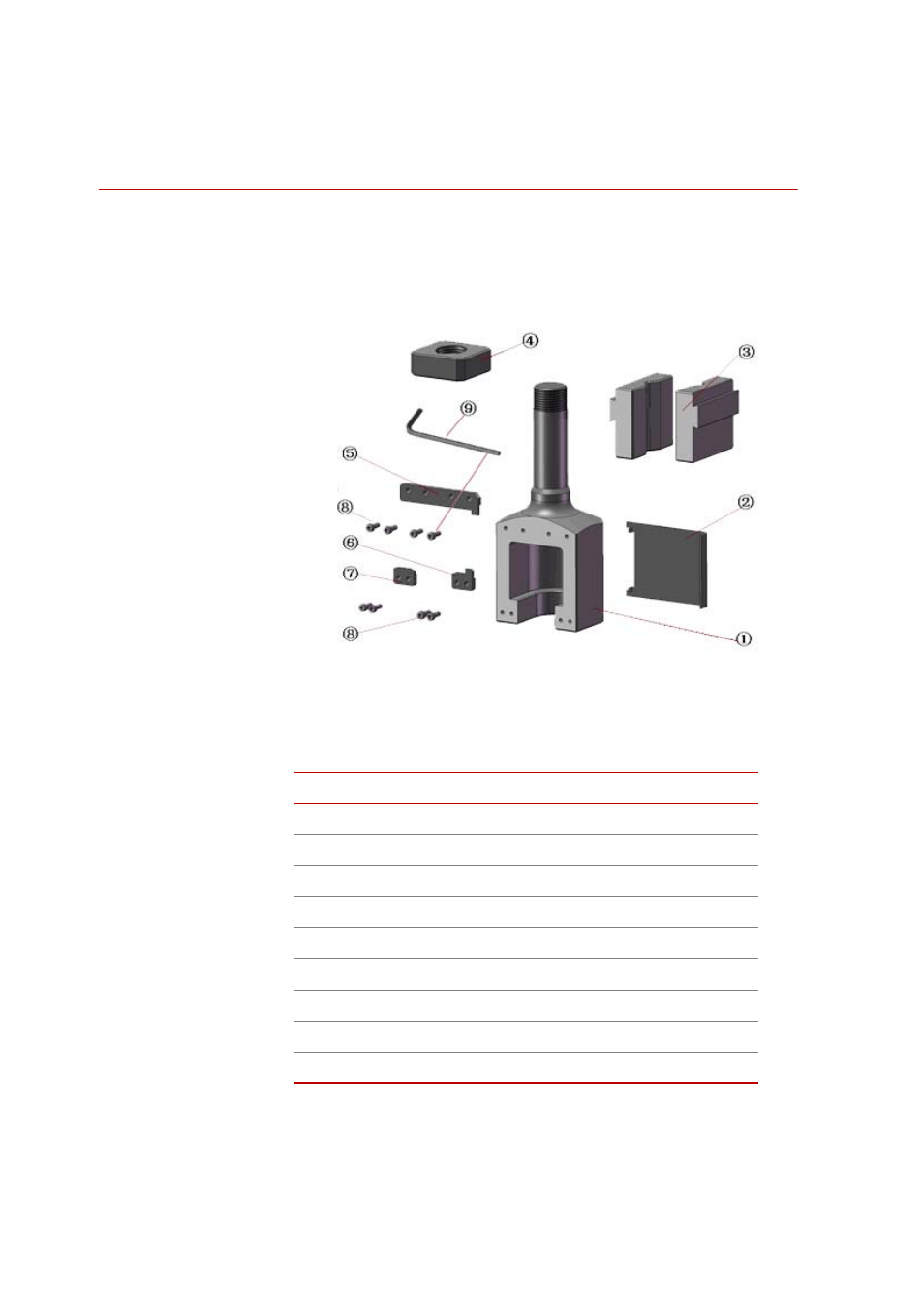

Figure 1 Parts of Upper Assembly
(F-JLL605A1/ F-JLL605A2/ F-JLL106A1/ F-JLL106A2)
Parts of Upper Assembly
C
ALLOUT
D
ESCRIPTION
1
Upper Joint
2
Upper Protection Plate
3
Wedge Faces
4
Square Nut
5
Leading Block 1
6
Leading Block 2
7
Leading Block 3
8
Allen Screw M6×16
9
Hexagon Spanner (5mm)
