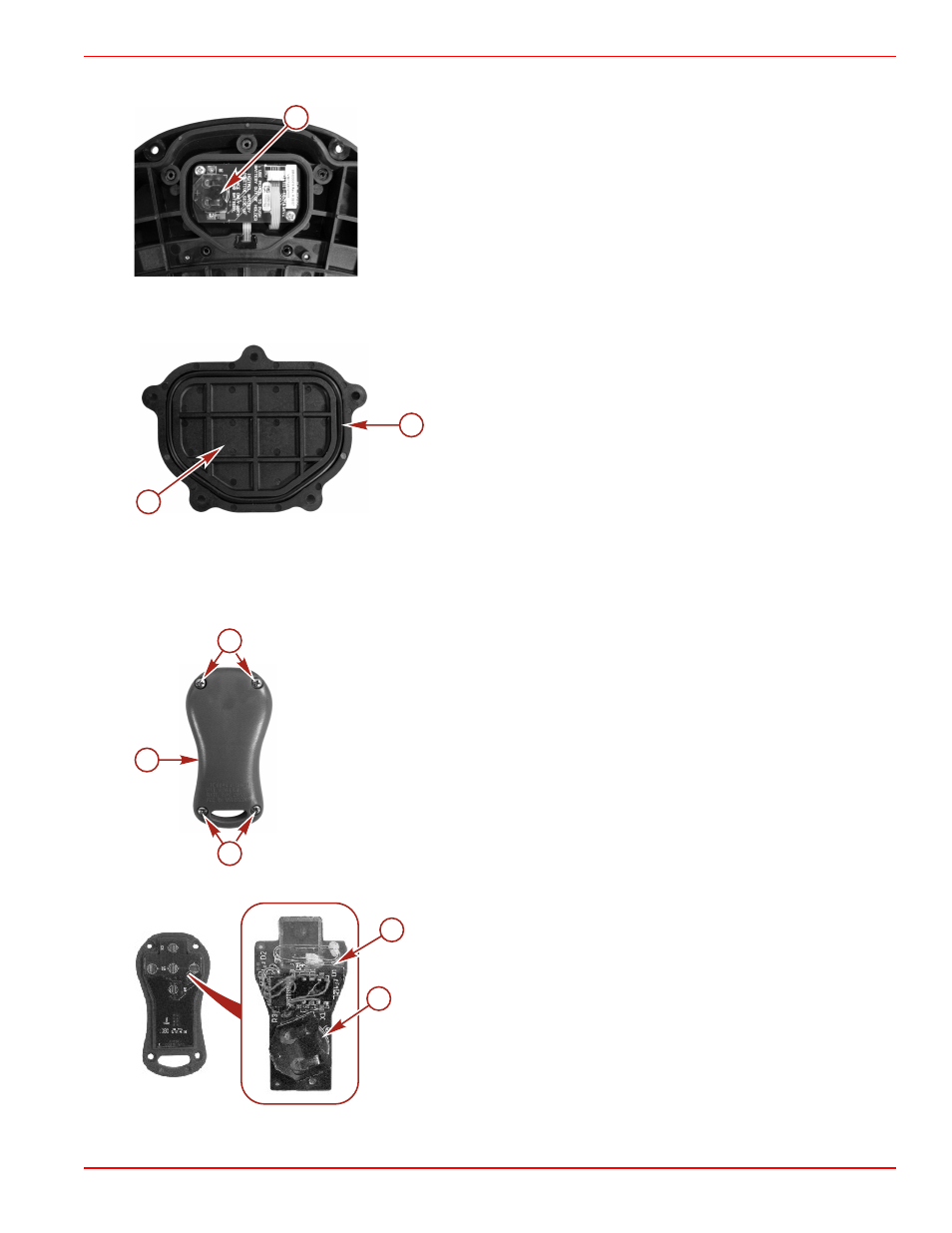

2. Using a pencil or a similar tool, push out the old battery.
a - Battery
3. Insert the new battery with the positive side facing up.
4. Ensure the O‑ring is positioned correctly on the inside of the battery cover.
a - Battery cover
b - O‑ring
5. Replace the battery cover plate and install the five screws. Tighten the screws securely.
Handheld Remote Battery Replacement
Battery required: 3V lithium, CR2032
1. Remove the four screws from the back of the handheld remote. Remove the back cover.
a - Handheld remote back cover
b - Screws
2. Remove the green circuit board. Turn the circuit board over. Using a pencil or similar tool, push out the old battery.
a - Battery
b - Green circuit board
3. Insert the new battery with the positive side facing up.
a
44739
a
b
44740
a
b
b
44741
a
b
44742
