Section 4 - Trolling Motor Operation

Page 16

90-8M4002601

eng

JUNE 2010

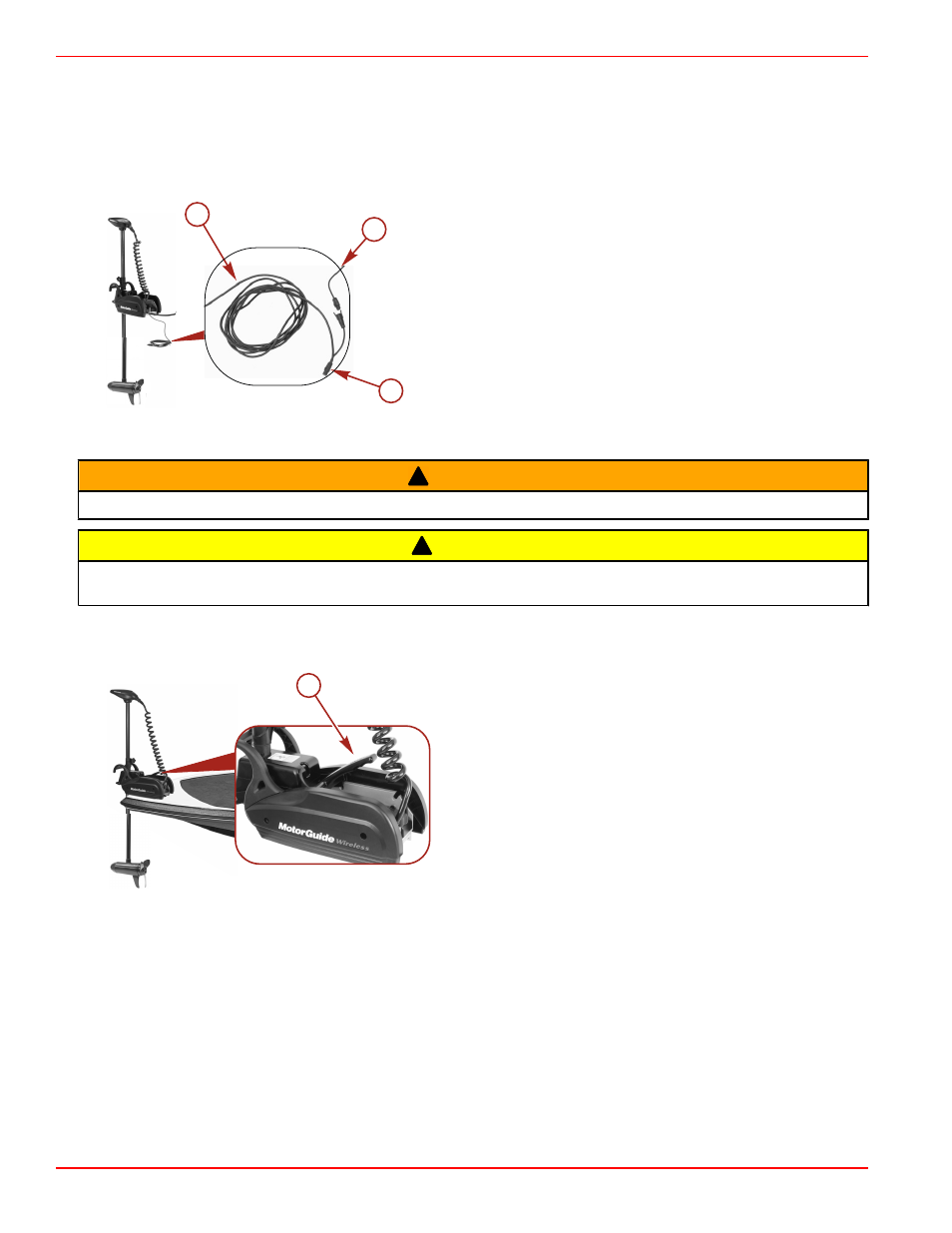

Connecting the Sonar Display to Motor

NOTE: This sonar display connection procedure applies to the Wireless Series motor that offers built‑in 200/83 kHz sonar
transducers compatible with Eagle

, Garmin

, Humminbird

, Lowrance

, and Vexilar

brand sonar displays. Wireless sonar

models connect with Lowrance 6 pin sonar units. For compatibility with other sonar units, refer to www.motorguide.com.
Match the cable connector to the sonar port on the back of the sonar display. Power up the unit to ensure that the sonar cable is

connected securely.

a -

Harness to nose cone sonar

b -

To 12 VDC source, if required

c -

To graph display

Stowing and Deploying the Trolling Motor

WARNING

Rotating propellers can cause serious injury or death. Never start or operate the motor out of water.

CAUTION

Moving parts, such as hinges and pivot points, can cause serious injury. Keep away from moving parts when stowing, deploying,

or tilting the motor.

Stowing the Motor

1. Firmly grasp the column with one hand and then pull up on the release handle with the other hand.

a -

Release handle

44712
