MotorGuide Wireless User Manual

Page 15

Section 3 - Product Installation, Wiring, and Battery Information

90-8M4002601

eng

JUNE 2010

Page 11

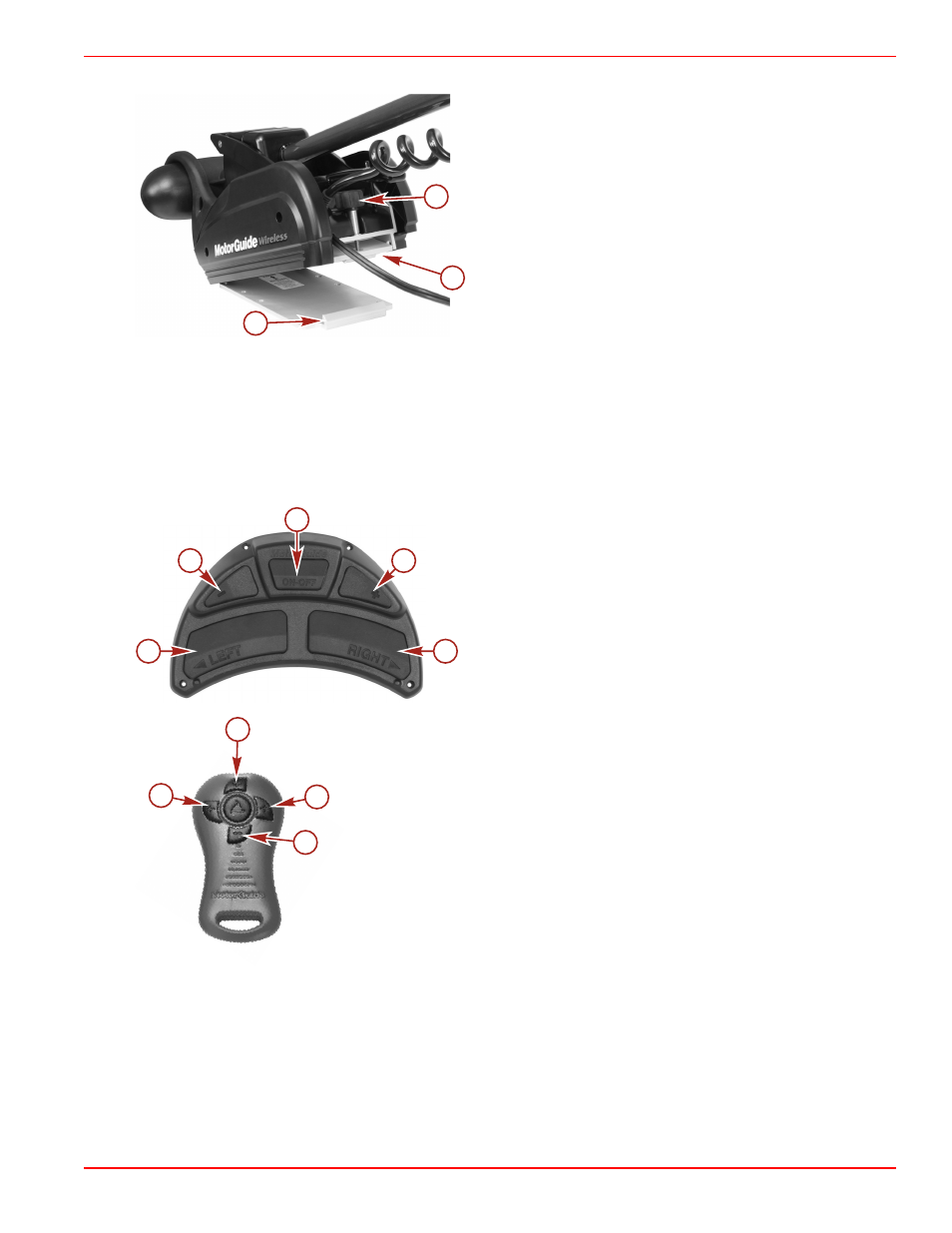

4. Secure the back of the mount by turning the mount lock knob to engage the cam lock into the base plate lip.

a -

Mount lock knob

b -

Cam lock

c -

Base plate lip

5. Deploy the motor. Refer to Section 4 - Adjusting the Motor Depth for depth collar adjustment instructions.
6. Ensure that the motor is properly secured to the mount base plate before operation.

Activating the Wireless Foot Pedal or Handheld Remote

Each foot pedal and handheld remote has a unique serial number. Program the trolling motor receiver with the serial number of

each controller used. The receiver can store up to four serial numbers. This ensures that the trolling motor will only respond to

commands from designated controllers. For erasing and reprogramming information, refer to Section 6 - Erasing the Receiver's
Memory

and Section 6 - Reprogramming the Wireless Foot Pedal or Remote.

Foot pedal

a -

"LEFT" button

b -

"–" button ‑ slower

c -

"ON‑OFF" button

d -

"+" button ‑ faster

e -

"RIGHT" button

Handheld remote

a -

Left arrow button

b -

"+" button ‑ faster

c -

Right arrow button

d -

"–" button ‑ slower

NOTE: This activation procedure applies to the foot pedal and handheld remote.
IMPORTANT: To activate multiple foot pedals or remotes, the motor must be unplugged from the power source and then plugged

back into the power source between activating each control device.
1. Plug in the battery cable to a power source. In less than ten seconds, press and hold the (+) and (–) buttons on the controller

simultaneously.

2. Listen for a long beep indicating the receiver has stored the electronic serial number.
