Section 3 - Product Installation, Wiring, and Battery Information
90-8M4002601
eng
JUNE 2010
Page 13
Battery Connection
!
CAUTION
Disconnecting or connecting the battery cables in the incorrect order can cause injury from electrical shock or can damage the
electrical system. Always disconnect the negative (‑) battery cable first and connect it last.

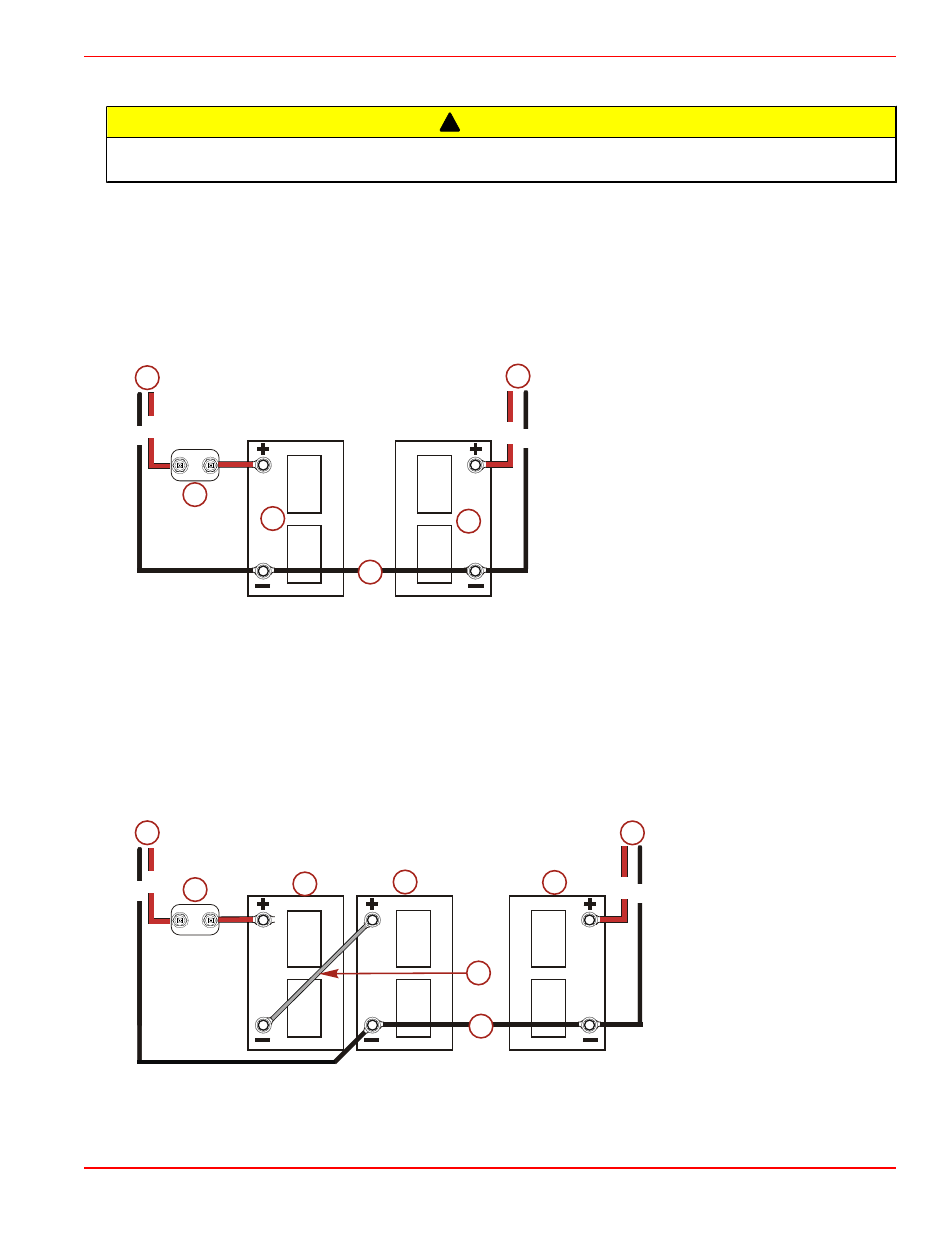

12 Volt Battery Connection
1. Install a 50 amp manual reset circuit breaker in line with the trolling motor power cable positive (+) lead and the battery positive
(+) terminal.
2. Connect the black trolling motor power cable negative lead to the engine battery negative (–) terminal.
3. Connect a jumper cable (common ground bond) from the trolling motor battery negative terminal to the engine battery negative
terminal.
NOTE: Vessels with multiple batteries must have a common ground bonding circuit. Not establishing a common ground
between the vessel batteries may cause severe corrosion, electrolysis, or electrical shock.
a -
Power cables to trolling motor
b -
50 amp manual reset circuit breaker
c -
Trolling motor battery
d -
Engine starting battery
e -
Power cables to engine
f -
Common ground bond
24 Volt Battery Connection
1. Install a 50 amp manual reset circuit breaker in line with the trolling motor power cable positive (+) lead and battery "c" positive
(+) terminal.
2. Connect a jumper wire (reference grey) between the negative (–) terminal on battery "c" to the positive (+) terminal on battery
"d."
3. Connect the trolling motor negative (–) lead to the negative (–) terminal on battery "d."
4. Connect a jumper cable (common ground bond) from the trolling motor battery "d" negative (–) terminal to the engine battery
negative terminal.
NOTE: Vessels with multiple batteries must have a common ground bonding circuit. Not establishing a common ground
between the vessel batteries may cause severe corrosion, electrolysis, or electrical shock.
a -
Power cables to trolling motor
b -
50 amp manual reset circuit
breaker
c -
Trolling motor battery "c"
d -
Trolling motor battery "d"
e -
Series cable connection
f -
Common ground bond
g -
Engine starting battery
h -
Power cables to engine
RED
BLK
BLK
REDRED
a
b
c
d
e
44291
f
RED
BLK
BLK
REDRED
a
b
c
44328
f
e
g
d
h
