17

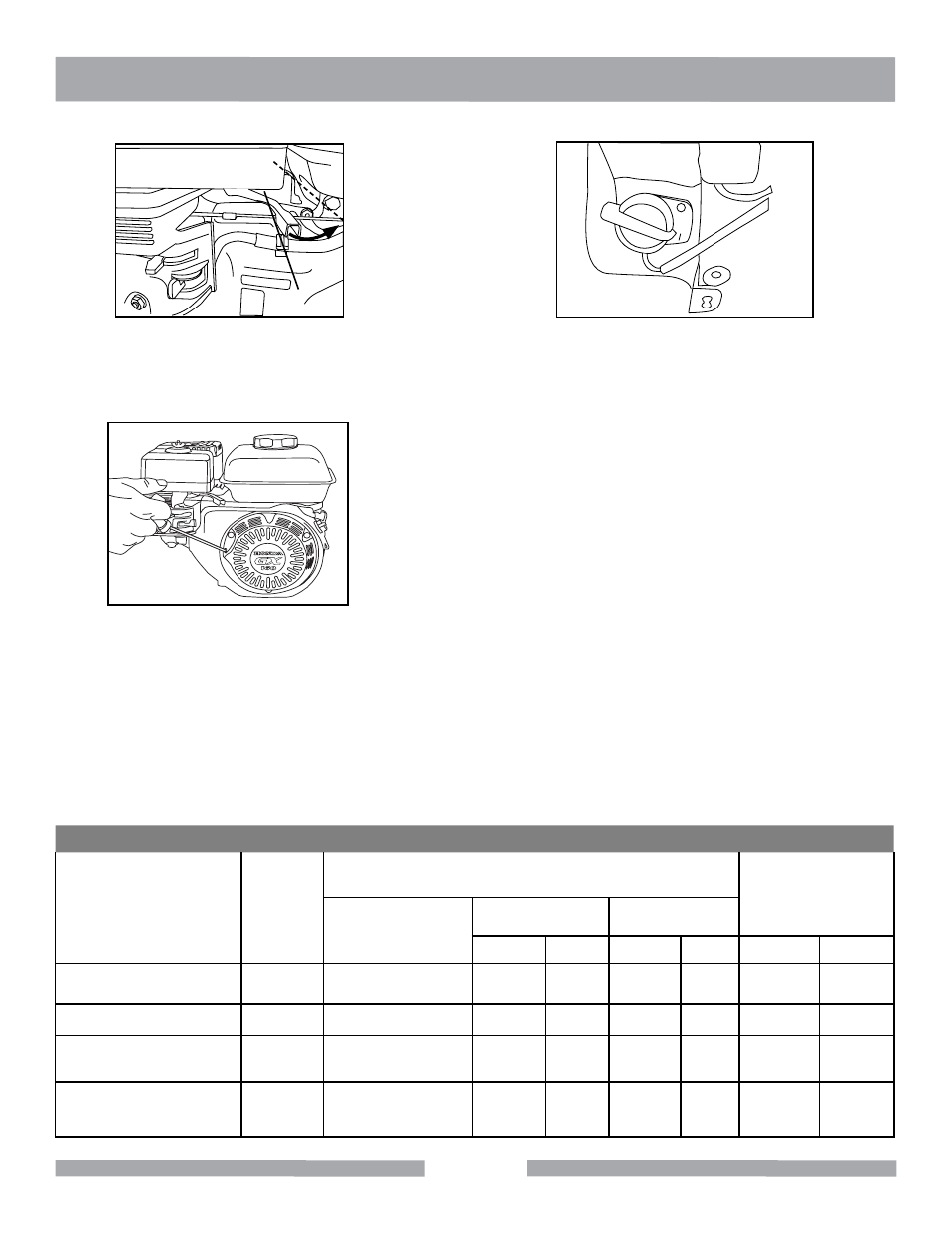

193 SERIES CONCRETE MIXER INSPECTION & START-UP
Move the throttle lever away
from the slow position, about
1/3 of the way toward the fast
position.
Pull the starter grip lightly until you feel
resistance, then pull briskly. The drum
should begin to rotate at this time.
Turn the engine switch to the
ON position.
SLOW
FAST
OFF
ON
Application
This mixer is only intended for the production of cement concrete. The mixer must be used for its
intended purpose and is not suitable for the mixing of flammable or explosive substances. The mixer
must not be used in an explosive atmosphere. Refer to the reference table below when mixing con-
crete for various applications.
CONCRETE MIXING HINTS
APPLICATIONS
MIX
RATIOS
BATCH QUANTITIES
APPROX. BATCH
OUTPUT
CEMENT 112 lbs.
(50 Kgs.)
Bag
SAND STONE
CU. FT. LTR CU. FT. LTR CU. FT. LTR
Most Ordinary 1:2:4 1/2 BAG 1-1/4 35 2-1/2 71 3 85
Foundations 1:3:6 1/3 BAG 1-1/4 35 2-1/2 71 2-3/4 78
Rough Mass
Concrete
1:4:8 1/4 BAG 1-1/4 35 2-1/2 71 2-3/4 78
Watertight Floors,
Tanks, Pits, Etc.
1:1-1/2:3 2/3 BAG 1-1/4 35 3 71 3 85
