13
193 SERIES CONCRETE MIXER PRODUCT SPECIFICATIONS

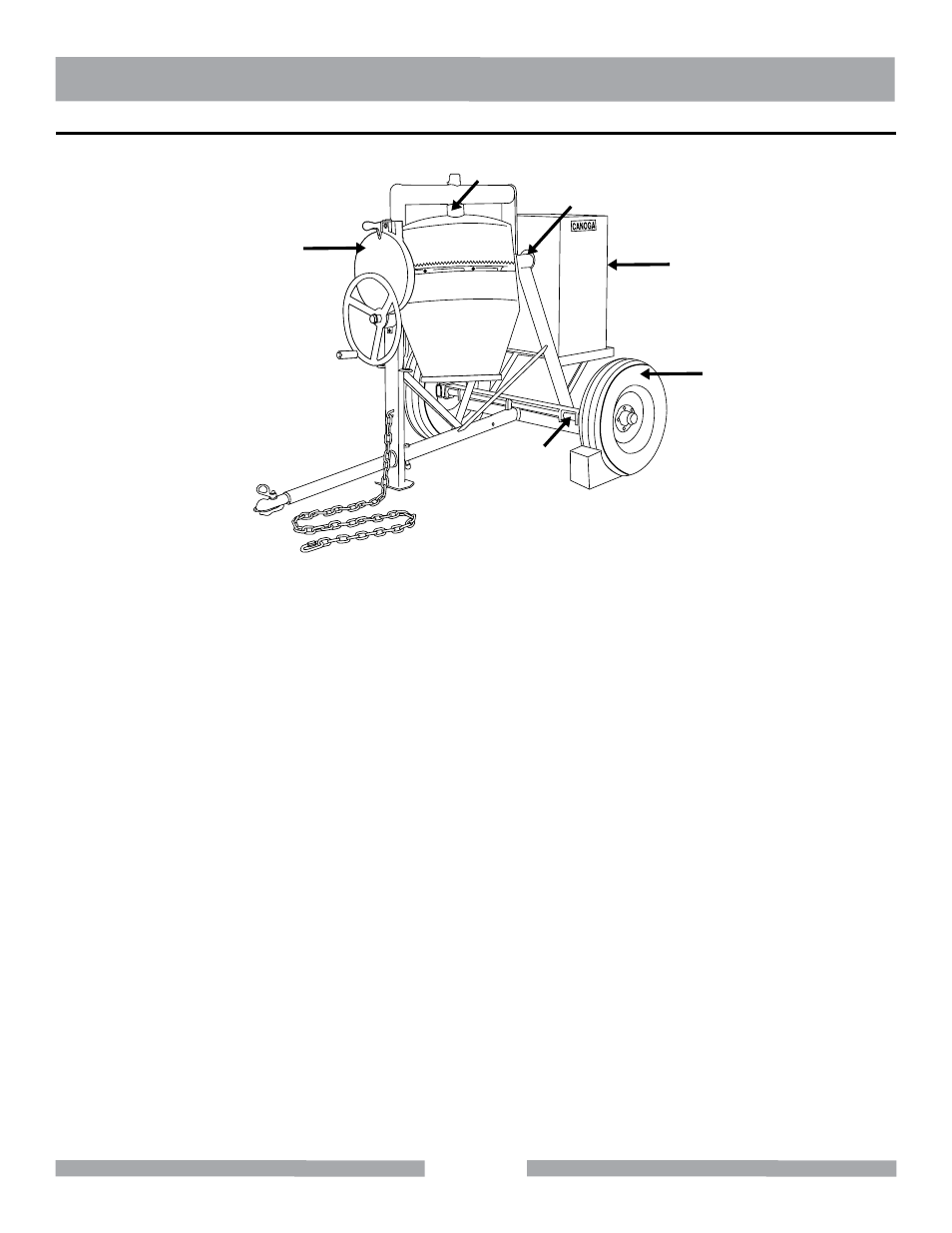

Mixer Major Components
MIXER BASIC COMPONENTS
A
B
C
C
D
E
F
G
H
I (on rear of cabinet)
A. Steel Mixing Drum – The Canoga concrete mixer uses an 9 cu. ft. steel mixing drum. This
drum is to be used for mixing of concrete. Always clean the drum after each use.
B. Dump Gear Guard – NEVER remove the guarding on the dump guard.
C. Zerk Fittings – Zerk fittings are located at the top of the engine side of the yoke and center of the
drum bearing. Lubricate these fittings as referenced in the maintenance section of this manual.
D. Safety Chain – This mixer uses a 3/16-inch thick, 72-inches long zinc-plated safety chain.
ALWAYS connect the safety chain when towing.
E. Tow Bar – This mixer uses various towing bars. Reference the tow bar drawing on page 9 to
determine which tow bar meets your requirements.
F. Torsion Bar Suspension –This mixer has a torsion bar suspension that should be inspected
periodically.
G. Chock Blocks – Place these blocks (not included as part of the mixer package) under each
mixer wheel to prevent rolling, when mixer is not connected to the towing vehicle.
H. Tires Ply – The tire ply (layers) number is rated in letters. This mixer uses 13-inch 2-ply tires.
Replace with only recommended type tires.
I. Cabinet/Latch – Encloses gas engine. NEVER run mixer with cabinet removed. Use latches to
secure motor compartment cabinet.
