14
193 SERIES CONCRETE MIXER PRODUCT SPECIFICATIONS

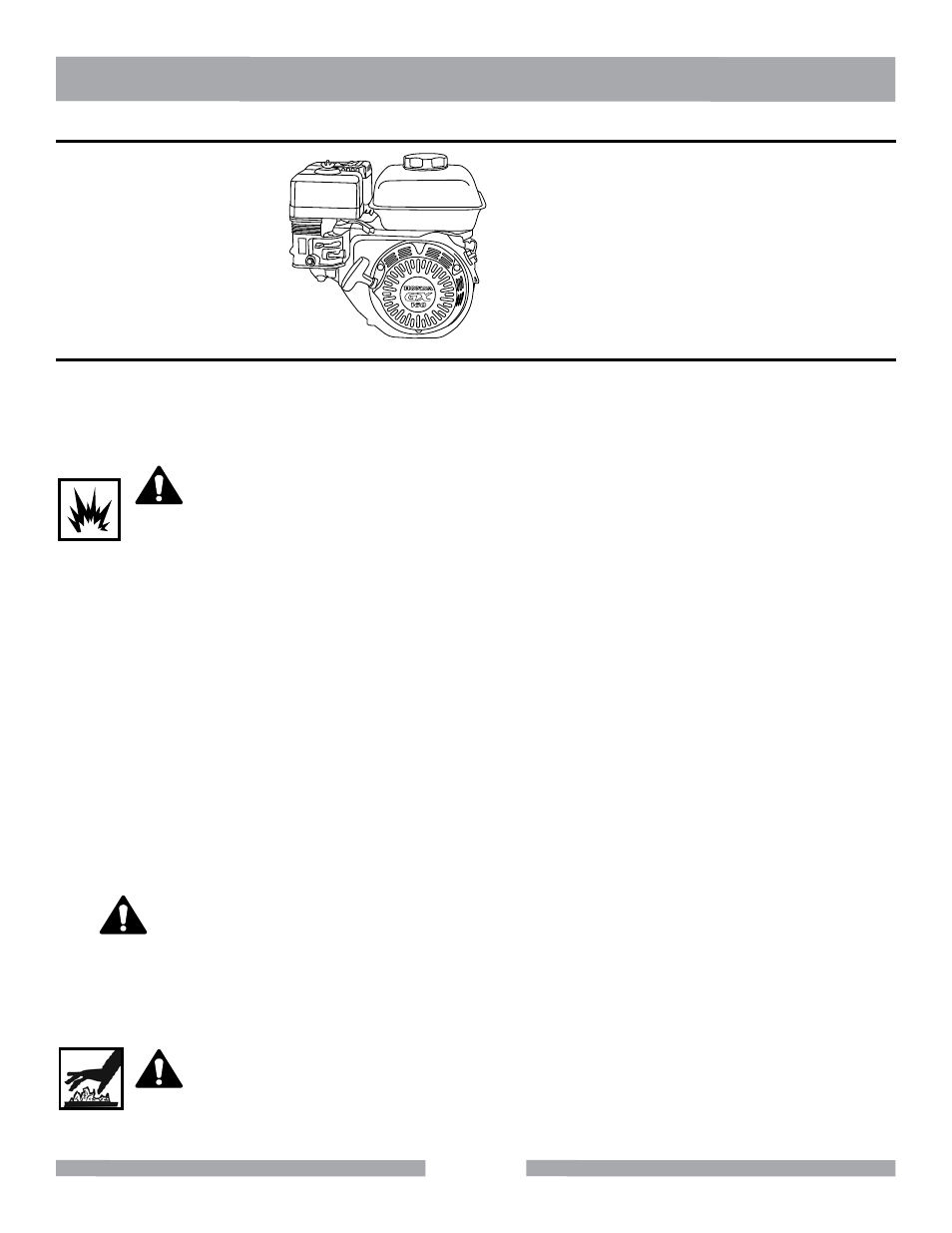

Honda CX Series Engine
(Refer to engine manual for full instructions.)
Adding fuel to the tank should be accomplished only when the engine is stopped and has had
an opportunity to cool down. In the event of a fuel spill, DO NOT attempt to start the engine
until the fuel residue has been completely wiped up, and the area surrounding the engine is dry.
NOTICE: Operating the engine without an air filter, with a damaged air filter, or a filter in
need of replacement will allow dirt to enter the engine, causing rapid engine wear.
WARNING
WARNING: Engine components can generate extreme heat. To prevent burns, DO
NOT touch these areas while the engine is running or immediately after operating.
NEVER operate the engine with the muffler removed.
BASIC ENGINE COMPONENTS
INITIAL SERVICING
The engine must be checked for proper lubrication and filled with fuel prior to operation. Refer to the
manufacturers engine manual for instructions and details of operation and servicing.
1. Fuel Filler Cap – Remove this cap to add unleaded gasoline to the fuel tank. Make sure cap is
tightened securely. DO NOT over fill.
2. Throttle Lever – Used to adjust engine RPM speed (lever advanced forward SLOW, lever back
toward operator FAST).
3. Engine ON/OFF Switch – ON position permits engine starting, OFF position stops engine
operations.
4. Recoil Starter (pull rope) – Manual-starting method. Pull the starter grip until resistance is felt,
then pull briskly and smoothly.
5. Fuel Valve Lever – OPEN to let fuel flow, CLOSE to stop the flow of fuel.
6. Choke Lever – Used in the starting of a cold engine, or in cold weather conditions. The choke
enriches the fuel mixture.
7. Air Cleaner – Prevents dirt and other debris from entering the fuel system. Remove wing-nut on
top of air filter canister to gain access to filter element.
8. Spark Plug – Provides spark to the ignition system. Set spark plug gap to 0.6 - 0.7 mm (0.028 -
0.031 inch). Clean spark plug once a week.
9. Muffler – Used to reduce noise and emissions.
10. Fuel Tank – Holds unleaded gasoline. For additional information refer to engine owner’s manual.
