MK Diamond MK-S User Manual

Page 16

Slide the pivot bar into clamp.

Adjust to proper radius.

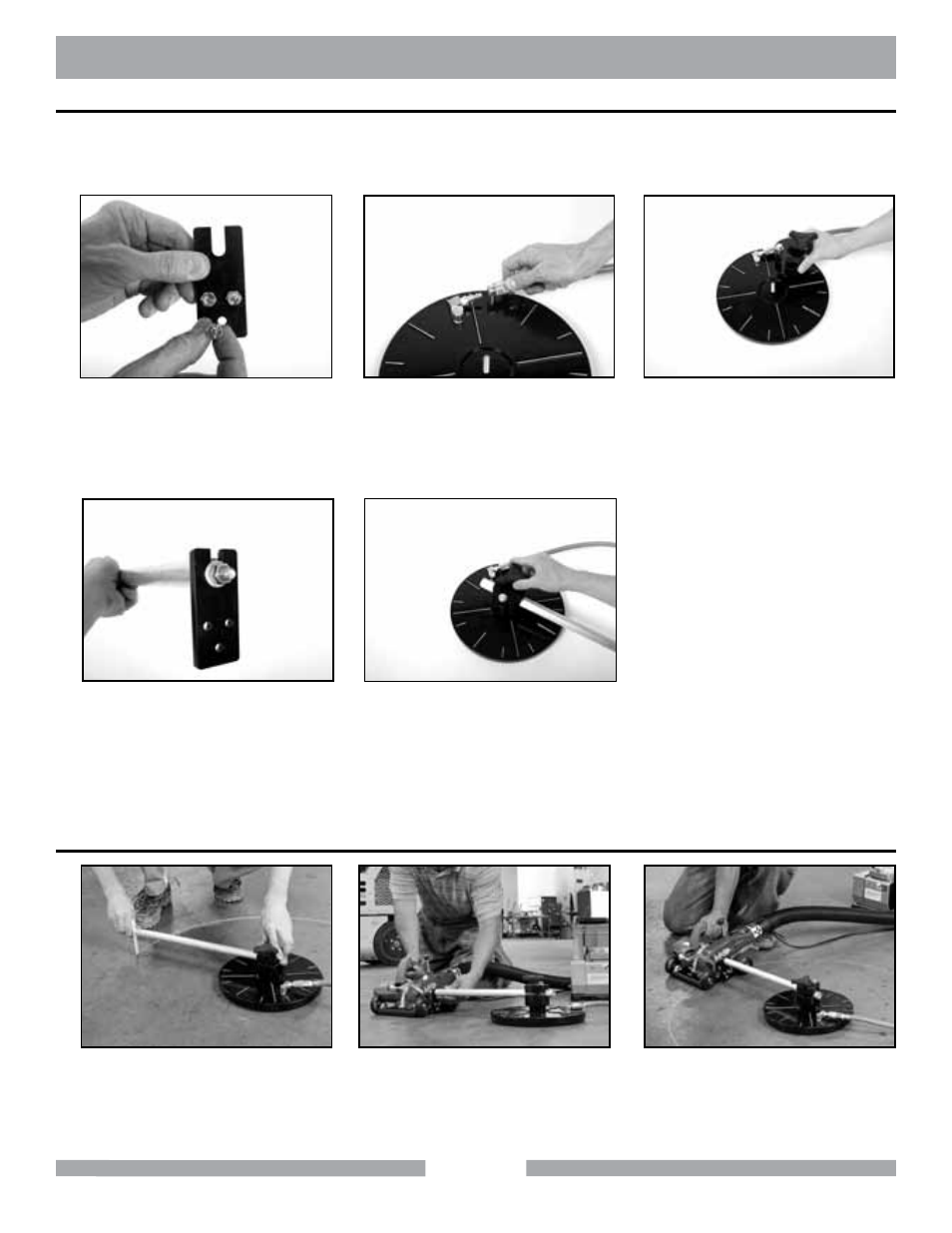

The Vacuum Pivot Kit (part #168186) is used for radius and circular cutting. The kit consists of one

base, one vacuum pump, one air hose and four pivot bars.

VacUUM KiT

Place the three bolts into

center pivot mounting bracket

and screw into to saw

Place base on clean, flat

surface and attach air hose

to base by pulling back collar

and sliding onto coupling.

Place the clamp on the center

screw.

Screw pivot bar into center

pivot mounting bracket on

saw.

Add additional pivot bars to increase radius of cut.

noTE:

MK-S oPEraTionS

For PErFEcT circLES anD arcS

Set up vacuum base and

mark cut with soap stone by

rotating pivot bar

Attach saw to pivot

bar

Adjust depth of cut

and begin cutting
