MK-S oPEraTion

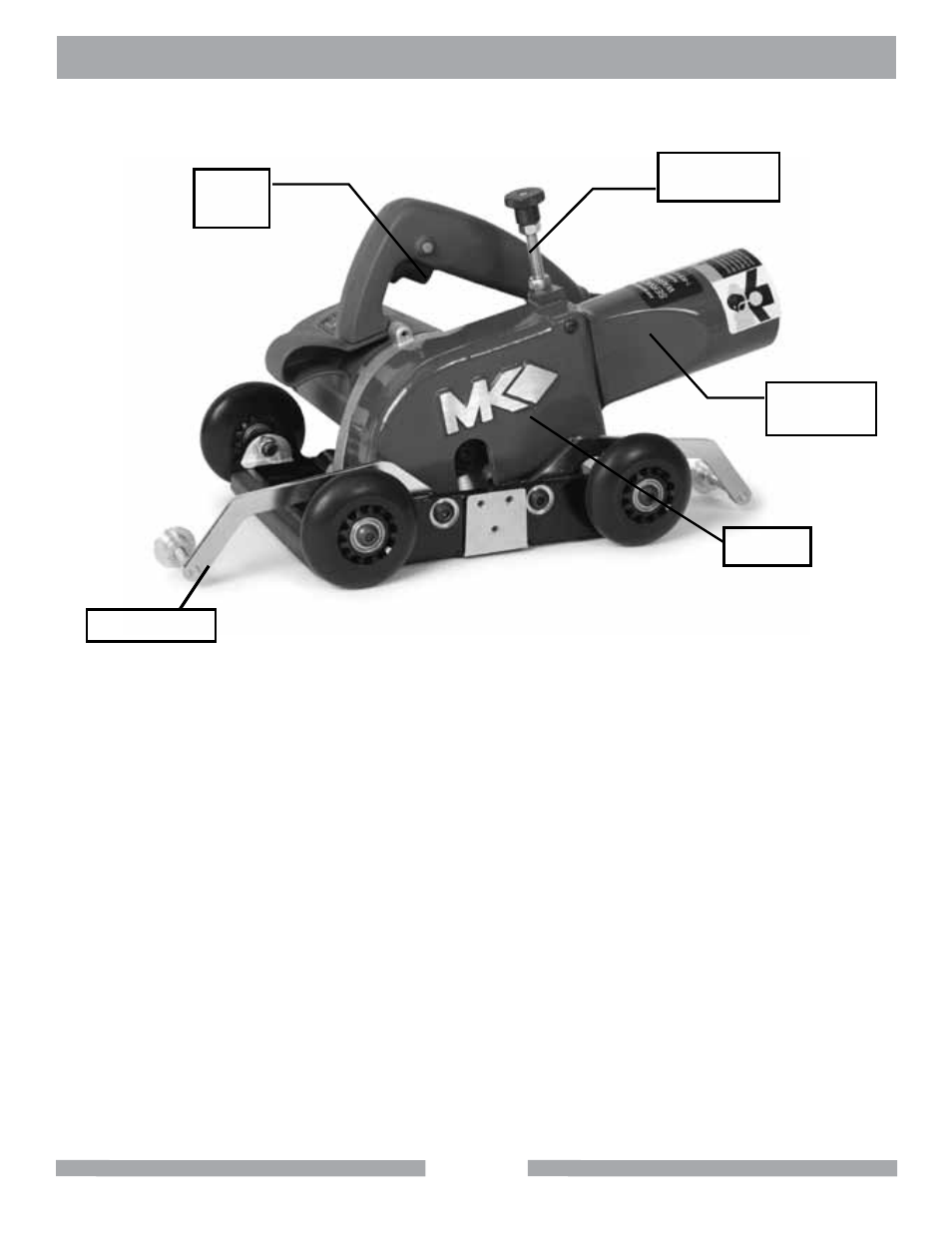

Guide Stop
Adjustment
Rod
Shroud
On/Off
Switch
2 1/2” Vac
Port
Line up the front and rear guide stops with the blade and tighten the set screws.
Use the set screws on the guide stop to secure the guide in position.
Using the adjustment rod located on the top of the saw shroud, set the cutting depth of the blade. By
tightening the adjustment rod or threading it downward, you will reduce the cut depth. The adjustment
rod provides a stop which controls the cut depth. Once set, tighten the jam nut against the top of the
shroud to secure the adjustment rod setting.
Attach the dust collector hose into the 2 1/2” Vac port. Plug the saw and the dust collector into the
appropriate power source(s).
