MK Diamond MK-212 User Manual

Page 30

(A)

Remove the Blade Guard.

(C)

Loosen the two Beam Post Cutting

Head Pivot Knobs located on each

end of the saw.

(B)

Using a combination square,

check the Blade for vertical

alignment.

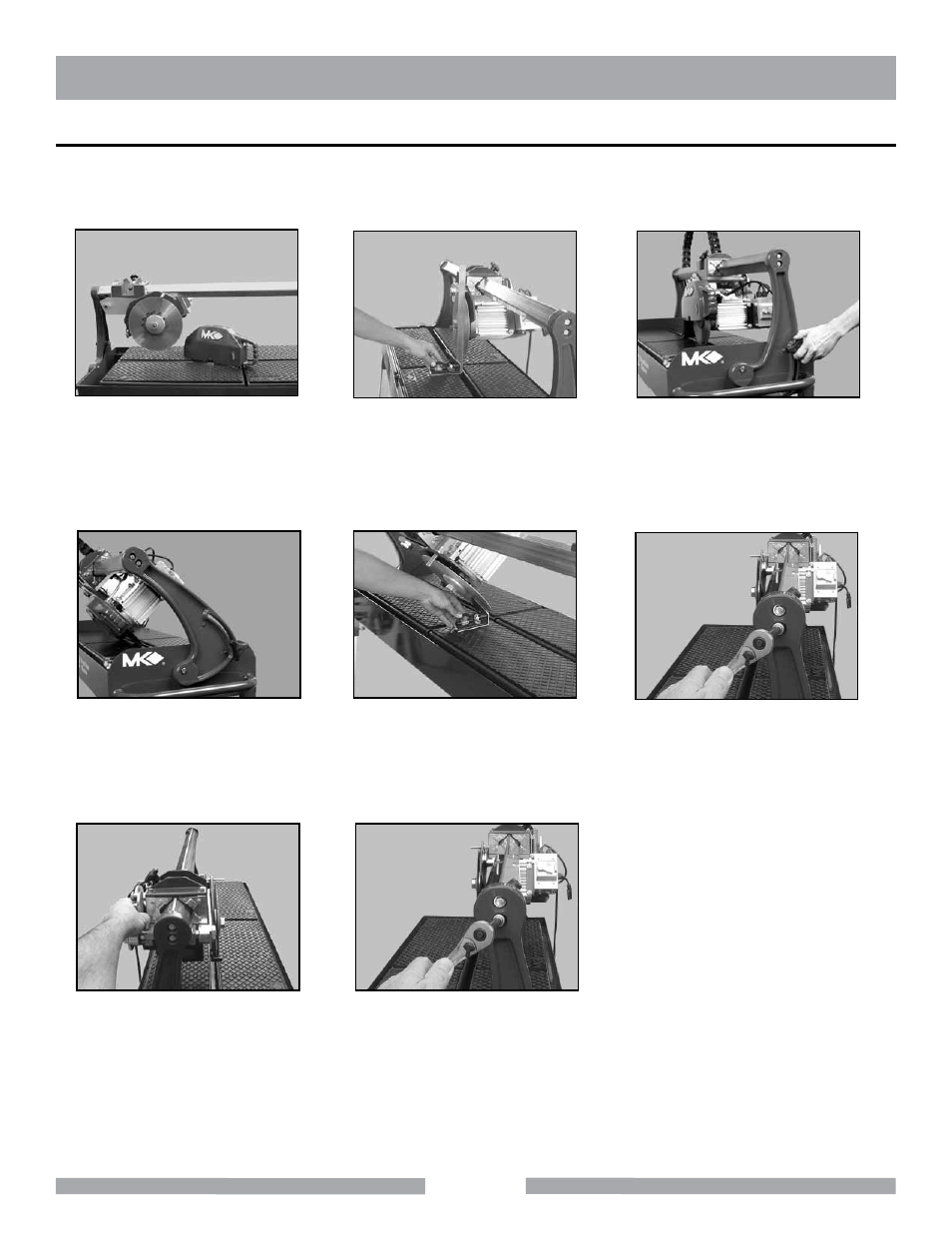

CUTTING HEAD ALIGNMENT

(E)

Using a combination square,

check the Blade for 45° alignment.

(D)

Pivot the Beam and retighten the

two Pivot Knobs.

(F)

Loosen the four Guide Rail

Adjusting Screws using a

1/2-inch socket.

MK-212 SAW

MAINTENANCE

(G)

Adjust the Guide Rail until it

is aligned both vertically and

horizontally.

(H)

Tighten the four Guide Rail

Adjusting Screws using a

1/2-inch socket.

NOTE:

The alignment of the Cutting Head should be checked periodically to ensure the

accuracy of the cut.
