The lightweight portable MK-1070 is a powerful tile cutting machine that
features an innovative adjustable cutting head that allows the operator
to make precision miter cuts quickly and accurately. The MK-1070 is
uniquely designed with the professional in mind to meet all requirements
for any cutting application.
Motor
The MK-1070 features a powerful high torque right angle drive universal
motor with the following specifications:
120 volts/ 50/60 hertz, single phase
2000 watts 17.6 ampere
4300 r.p.m.
The heavy-duty pinion and gear wheel assembly is permanently lubricated
in the sealed right-angle gearbox.
Cutting Head
The cutting head includes a built-in, fully adjustable, 45° miter system.
The 10 inch blade capacity yields a depth of cut of 3-3/4” or 2-1/8” at
a miter. The hinged blade guard allows easy blade changes, and is wide
enough to accept 8” profile wheels.
Conveyor Table
The rugged conveyor table assembly utilizes a linear guide bar and cover
that provides accurate, minimal maintenance operation, and increases
operator control and safety. The full movement of the table allows for the
cutting of 24” tile, or full diagonal cutting 18” tile.
Frame and Tower
The unitized structural steel frame and cast aluminum tower of the MK-
1070 provide maximum strength and rigidity, while keeping weight to a
minimum. The MK-1070 is very portable at 107 pounds and an overall
size of 41”L x 23”W x 18”H. Carrying handles are provided for ease of
transporting.
Water System
The water system of the MK-1070 consists of a thermoplastic water
reservoir and a submersible recirculating pump that connected to water
tubes in the blade guard in order to provide a continuous supply of water
to both sides of the blade. The water reservoir will not rust or peel, and
can be removed for easy cleaning.

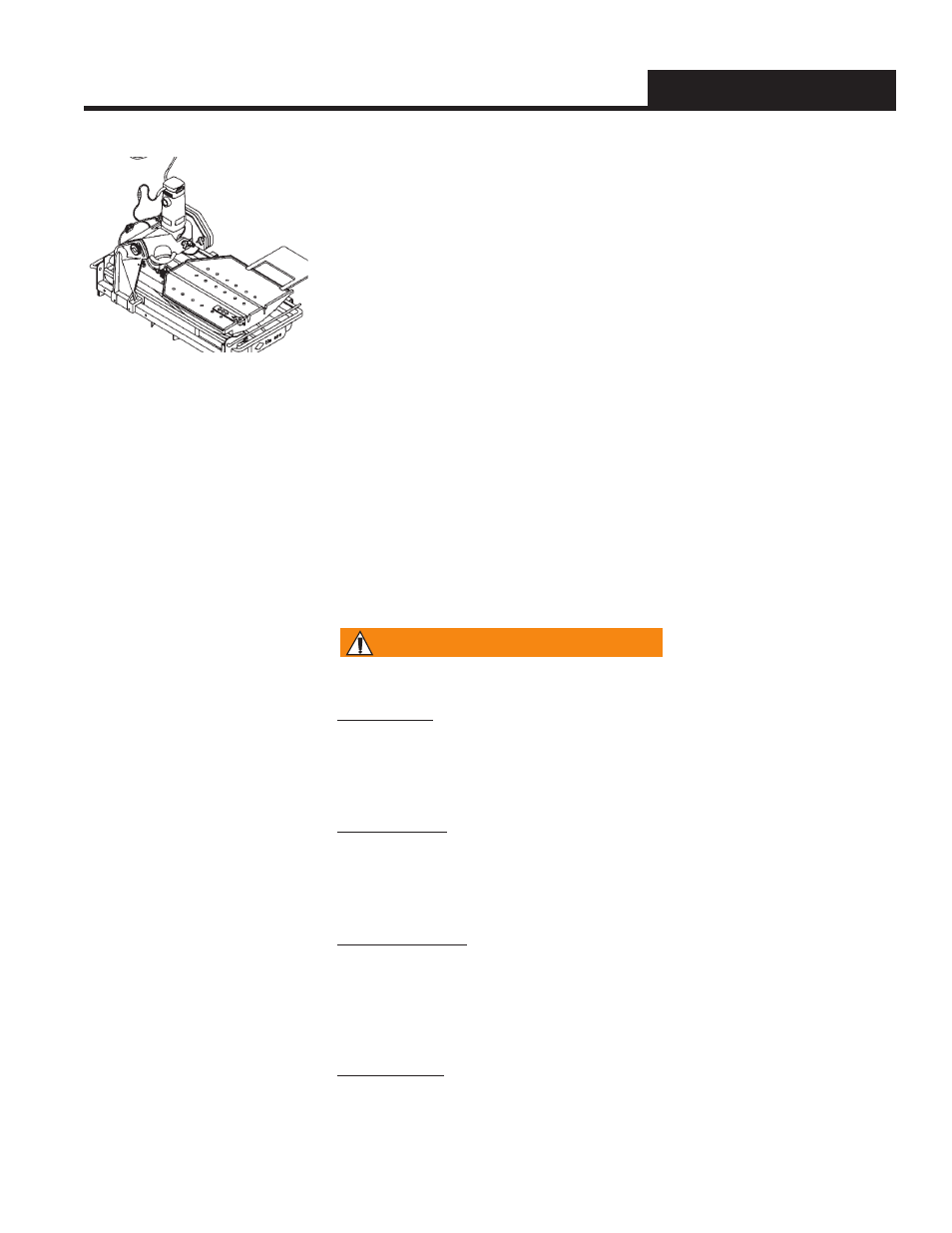

1070 TILE SAW
10 inch blade capacity, with built-in mitering
Saw Features
5
R
( (
)
)
on
Caution
Wear hearing protection when operating saw.
