TX-3 GENERAL PRODUCT INFORMATION

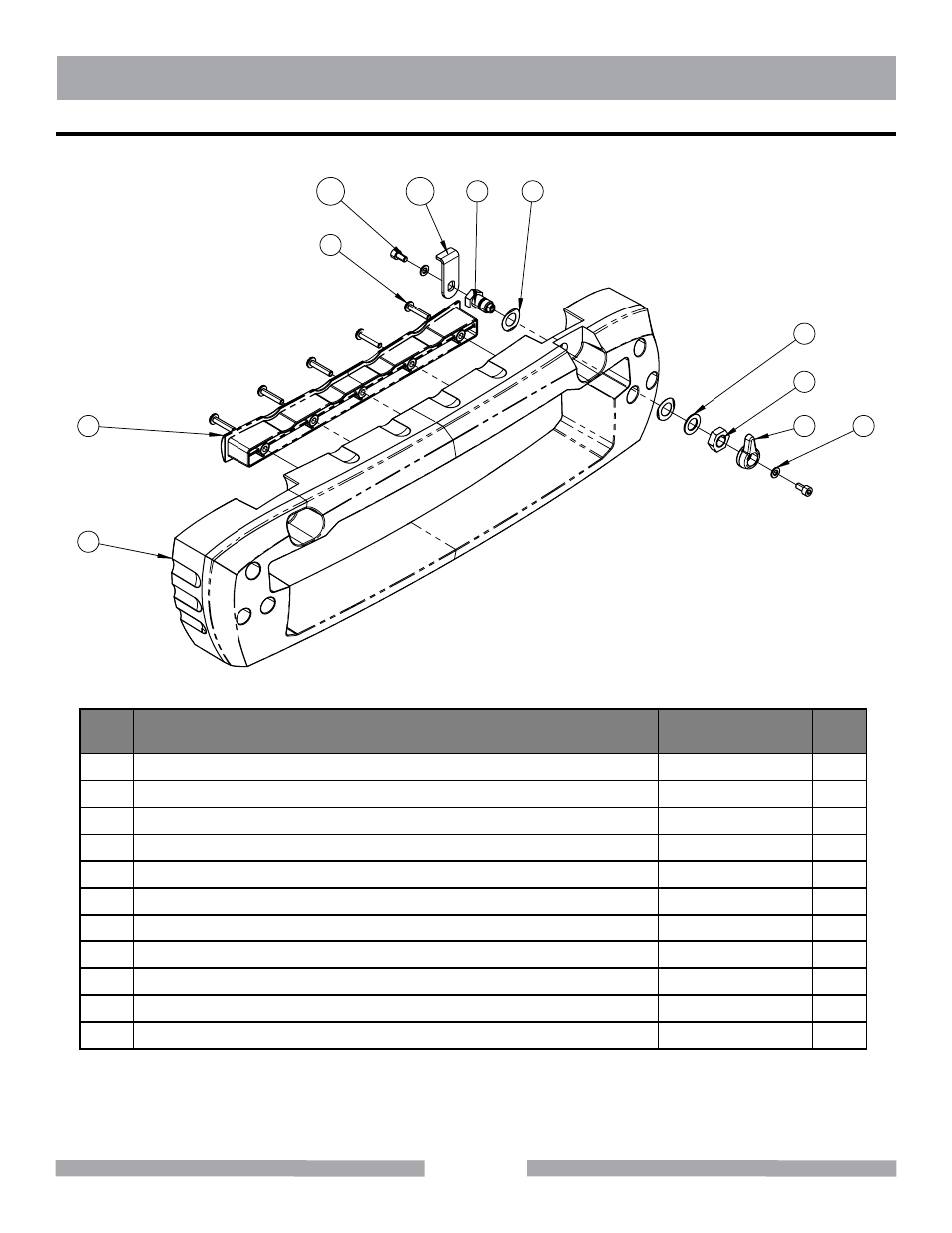

PARTS LIST - ASSY, FRONT ENDCAP - P/N 164854
3
1 1 0 1 4 5
6
8
7
9
1
2
ITEM
NO.
DESCRIPTION
PART OR
IDENTIFYING NO.
OTY.
REQ.
1 ENDCAP, FRONT 164802 1
2 COVER, ENDCAP 164846 1
3 SCREW, PAN HD PHILLIP, M5 X 25 MM 160557 5
4 CYLINDER, TABLE LOCK 164836 1
5 WASHER, WAVE, M12 164856 2
6 WASHER, FLAT, M12 166678 1
7 NUT, JAM, M12 164857 1
8 KNOB, TABLE LOCK 164835 1
9 WASHER, FLAT, M5 164858 2
10 LOCK, TABLE 164834 1
11 SCREW, SOCKET HD CAP, M5 X 10 MM 160567 2
