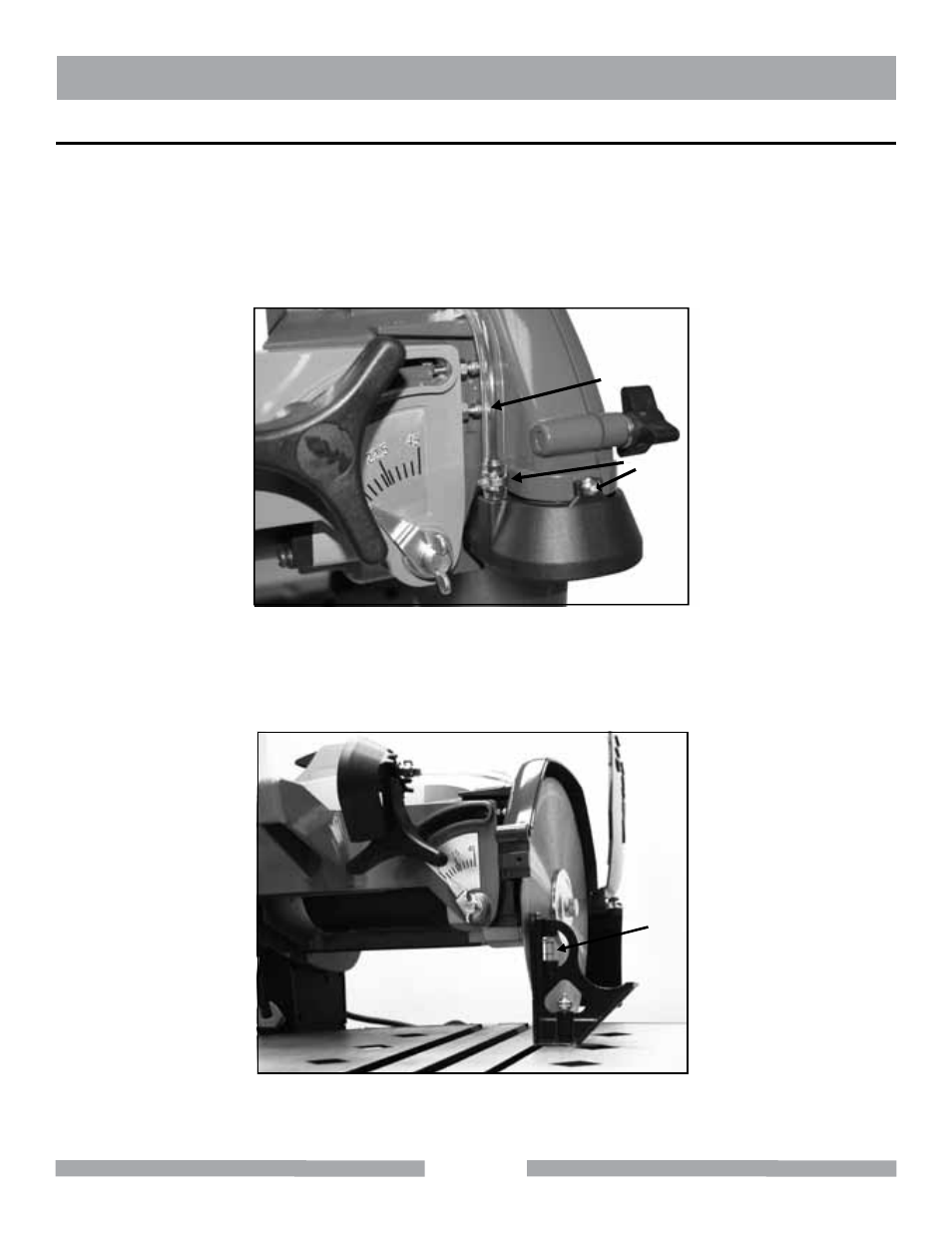

TX-3 INSPECTION & START-UP
4.
5.
Turning Vertical Adjustment Screw (L) until Blade is perpendicular with the top surface of the table by using
a square (H) as shown in figure below.
Tighten Hex Nut to secure Vertical Adjustment Screw (L) in place.
BLADE VERTICAL ADJUSTMENT
A combination square (H) is needed for 45º adjustment.
1.
2.
3.
Remove Outer Blade Guard by turning Outer Blade Guard Release Knob (J) and pushing Outer Blade
Guard back.
Remove Misting Module (M) by loosening the two Misting Module Screws (K).
Loosen the Hex Nut on the Vertical Adjustment Screw (L).
G
C
D
F
L
J
K
M
H
