MK Diamond TX-3 - Manual (Page 24)

24
TX-3 MAINTENANCE
A
B
WARNING
ALWAYS disconnect unit from power supply when performing changes or adjustments.

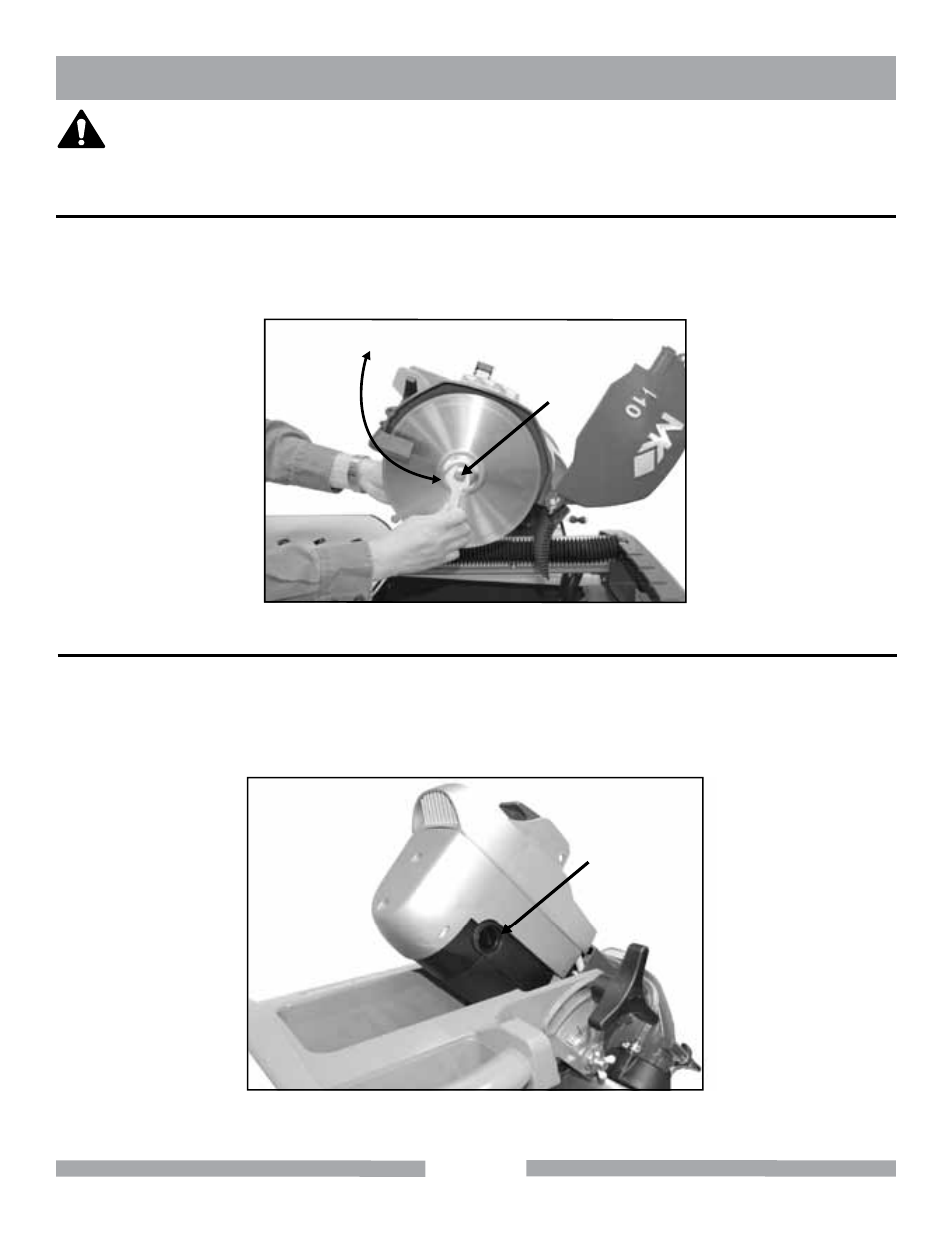

BLADE REPLACEMENT
1.
2. Hold Wrench over two flats on Motor Shaft on the inner side of the Blade.
Rotate Wrench (B) on the outer side of Blade counterclockwise to loosen and clockwise to tighten the
Blade Screw (A).
Q
MOTOR BRUSHES REPLACEMENT
1.
2.
3. Tilt Motor Assembly (Q) at 45º and tighten Miter Adjustment Knob (R) to hold Motor Assembly in place.
Remove Brush Caps (S) on both sides of Motor.
Replace Brushes and reinstall Brush Caps (S).
S
R
