MK Diamond TX-3 - Manual (Page 25)

25

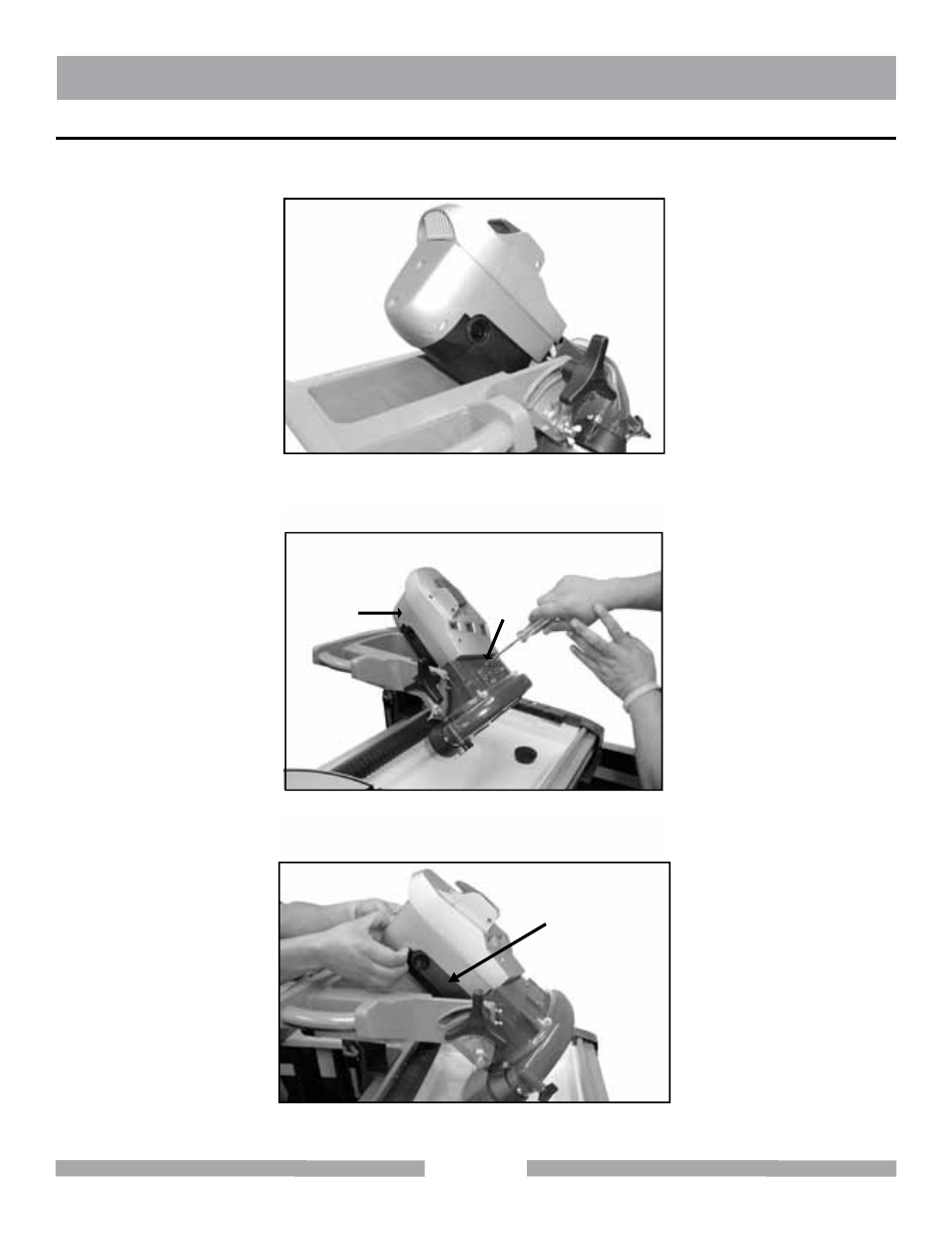

TX-3 MAINTENANCE
2. Remove one screw, which secures Lower Air Flow Module (E) through Inner Blade Guard (F) with a Phillips
screwdriver.
FILTER REPLACEMENT
C
Tilt Motor Assembly (C) at 45º and tighten Miter Adjustment Knob (D) to hold Motor Assembly (C) in place.
D
F
3.
Y
1.
E
Pull Lower Air Flow Module (H) backward to separate Upper and Lower Air Flow Module from Motor (I).
I
H
G
