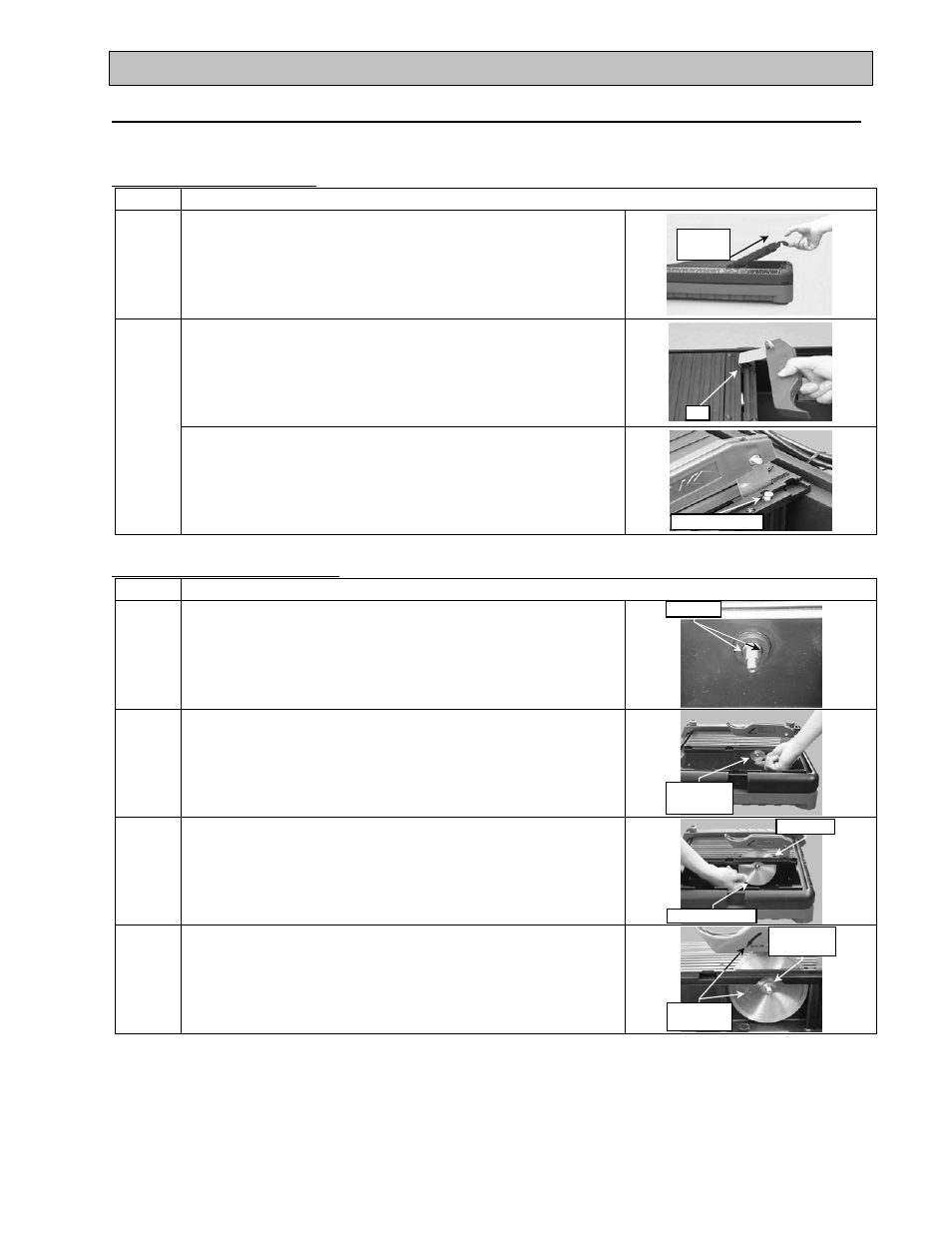

UNPACKING, TRANSPORT and ASSEMBLY:
ASSEMBLY:
Follow the assembly instructions to prepare your MK-145 for operation.
Blade Guard Installation:
STEP ACTION
1. Remove Water Basin Cover
a) Lift Water Basin Cover
b) Pull out on Water Basing Cover to Remove
2. Install Diamond Blade Guard
a) Insert Blade Guard into the small Slot of Cutting
Table
a) Rotate Blade Guard Upright
b) Insert Blade Guard Retaining Screw
Diamond Blade Installation:
STEP ACTION
1. Gear Shaft
a) Locate the flat sides of the Gear Shaft
2. Install Metal Inner Flange
a) Install the Metal Inner Flange onto the Gear
Shaft
b) Rotate the Metal Inner Flange until it is seated
on the flat sides of the Gear Shaft
3. Install Diamond Blade
a) Orient the Blade to the Gear Shaft with the
Directional Arrow facing out
b) Install the Blade through the Table Blade Slot
from below
4. Verify Blade Seated
a) Verify the Blade is seated on the Gear Shaft
b) Verify Blade Directional Arrow matches the
Directional Arrow on the Blade Guard
Removal
Direction
Slot
Retaining Screw
Flat Side
Metal Inner
Flange
Blade Slot
Diamond Blade
Installed on
Gear Shaft
Directional
Arrow
