16
(B)
Install the Thumbscrew
through the Washer and Splashguard
then align to the hole found on back
of the Blade Guard and tighten

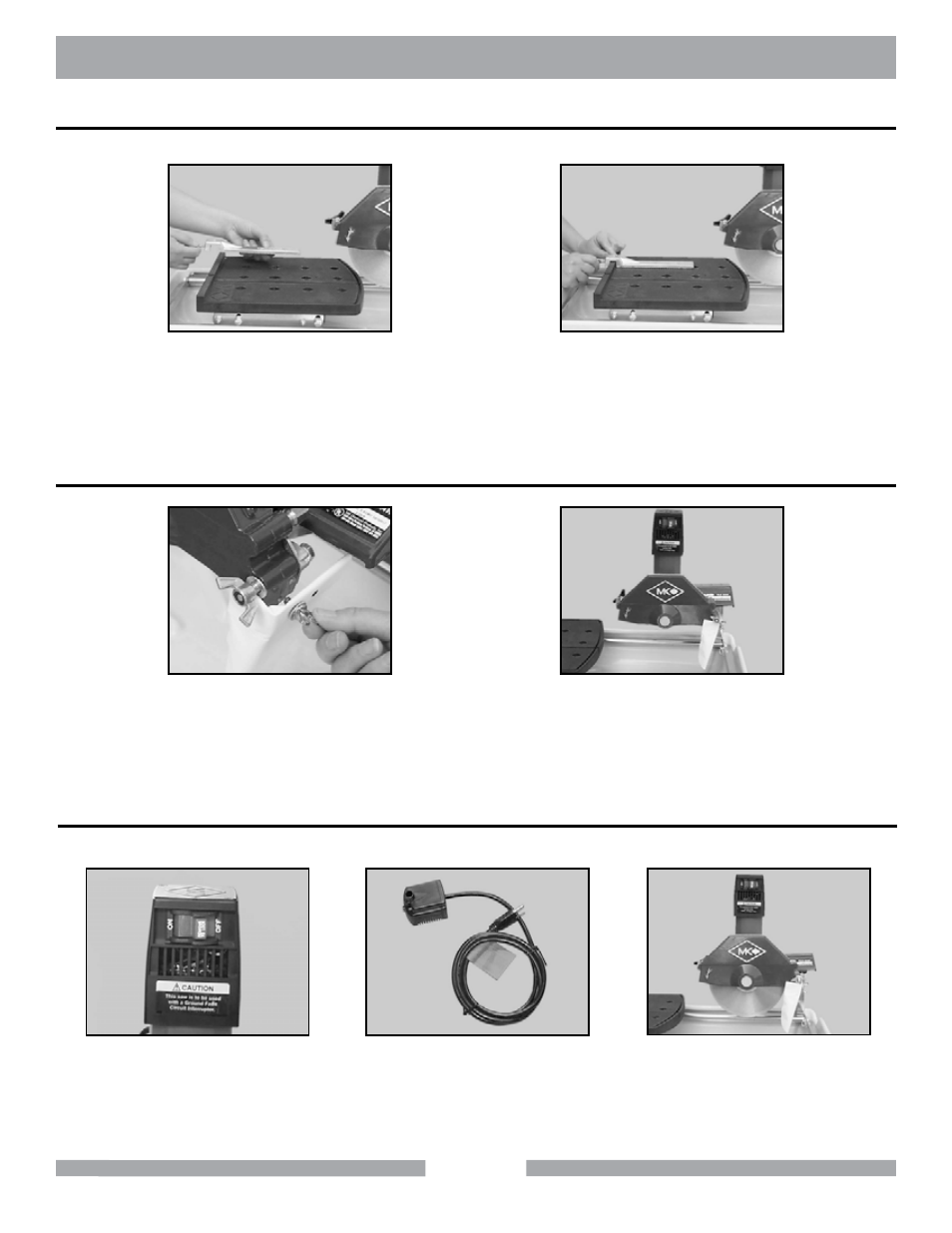

MK-370 SAW ASSEMBLY
ADJUSTABLE CUTTING GUIDE INSTALLATION
NOTE: The Adjustable Cutting Guide can be used on either side of the Diamond Blade.
(A)
Loosen Adjustable Cutting Guide
retaining thumbscrew and place it
over the Movable Cutting Table and
Ruler/Stop
(B)
Place the Adjustable Cutting Guide
onto the Ruler/Stop and tighten the
retaining thumbscrew
SPLASH GUARD INSTALLATION
(A)
Remove Thumbscrew and washer
from back of Blade Guard
PRE-START INSPECTION
Prior to beginning work, a pre-start inspection of the saw should be performed.
(B)
Inspect the Pump Assembly for
damage - ensure the cord is
free of cracks or cuts
(A)
Ensure the ON/OFF Switch
is in the OFF position
(C)
Inspect the Diamond Blade for
damage – verify the blade is
correct for the type of material
being cut
