Pump
Manual
04.2010
MK-370
OWNERS MANUAL
PARTS LIST &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This parts list MUST
accompany the equipment at all times.
Revision 100
Manual Part# 156760

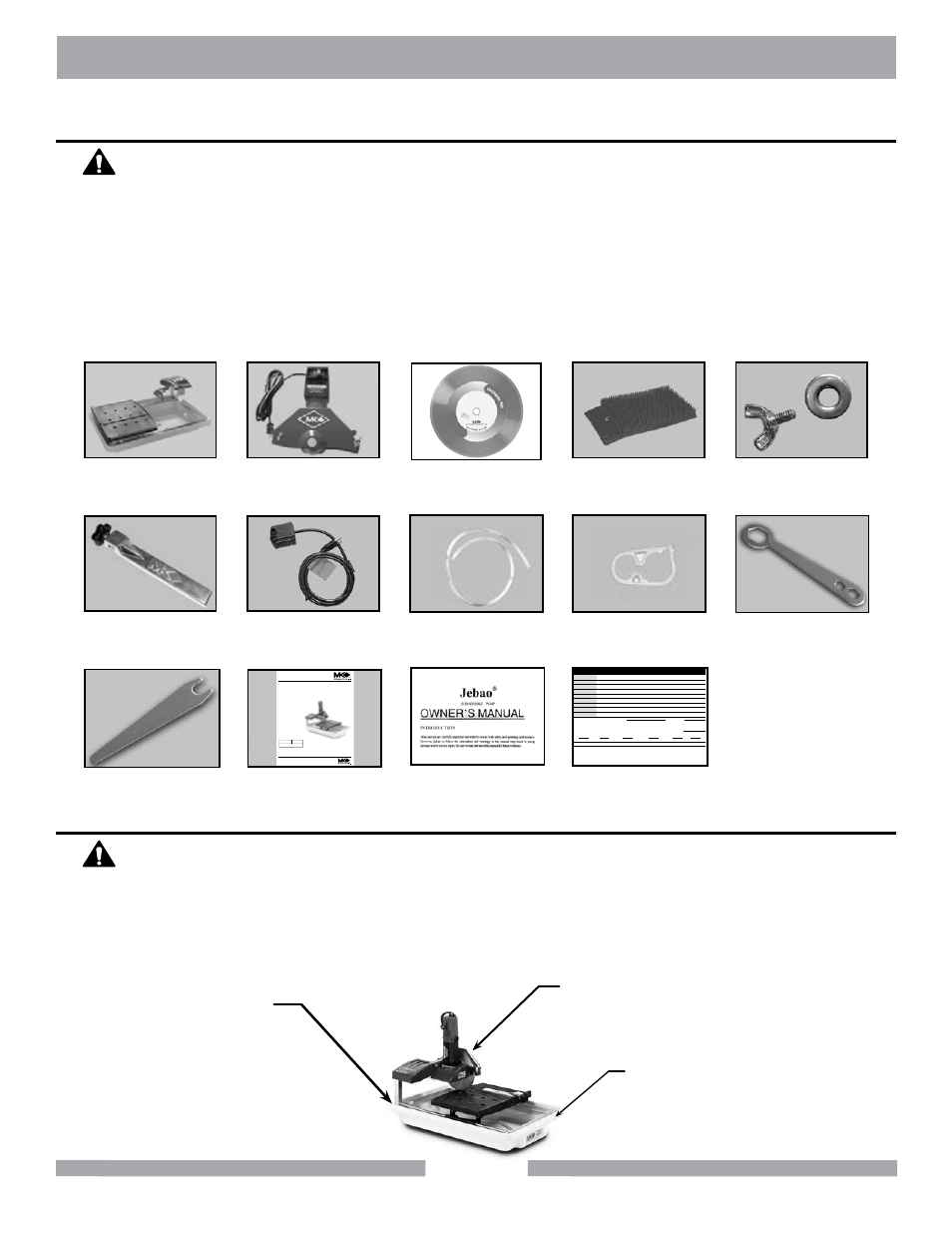

UNPACKING
Use proper lifting techniques when lifting the MK-370 Saw.
Remove the MK-370 and accessory box from the carton.
CONTENTS
MK-370
Cutting Surface
MK-370
Cutting Head
Splash Guard
Splash Guard
Wing Nut & Washer
Cooling
Transfer Tube
Blade Nut
Wrench
Shaft
Wrench
Rip Guide
Electric
Water Pump
Flow
Adjusting Clamp
Warranty
Card
Owners
Manual
Diamond Blade
One (1) MK-370 cutting surface &
water pan
One (1) MK-370 cutting head
One (1) 7-inch wet cutting blade
One (1) splash guard
One (1) splash guard wing nut & washer
One (1) extended rip guide
One (1) electric water pump
One (1) cooling transfer tube
One (1) flow adjusting clamp
One (1) blade wrench
One (1) shaft wrench,
One (1) owners manual
One (1) pump manual
One (1) warranty card
CAUTION
MK-370 SAW UNPACKING
TRANSPORT
The MK-370 Saw is designed with a rigid frame and removable Cutting Head making the saw
easily transportable. To lift the saw, grasp the front and back of the frame at the lift points shown
below.
Cutting
Head
Lift Point
Lift Point
1. The MK-370 Saw weighs approximately thirty (30) pounds; use care when transporting.
2. Never transport the MK-370 Saw with water in the Water Pan.
CAUTION
