anel
o
verview
ROOF PROFILE
SLOPE
SUBSTRATE
COVERAGE
LENGTH
AVAILABILITY
APPLICATION
FASTENING SYSTEM
FASTENERS
MATERIALS
FINISH
The minimum recommended slope for any IC72-Panel roofing panel is 1:12.
IC72-Panel is designed to be utilized over open structural framing, but can easily be used wth a solid substrate.
For solid substrate applications, the recommended substrate is
5
/
8
" plywood with a 30 pound felt moisture bar-
rier. To avoid panel distortion, use a properly aligned and uniform substructure.
IC72-Panel has a coverage of 36" with a 1
1
/
2
" Rib Height.
Lengths under 5'-0" are available with some cutting restrictions. Maximum recommended panel length is 45'-
0". Longer panels require additional consideration in packaging, shipping, and erection. Please consult your
Metal Sales branch for recommendations (see PGI-2 and 3 for locations).
26 and 24 Gauge standard, 22 Ga. optional (Minimum quantities may apply).
Commercial, Industrial panel.
Direct fastened (exposed).
The fastener selection guide should be consulted for choosing proper fasteners for specific applications. Quan-
tity and type of fastener must meet necessary loading and code requirements (see PGI-12-14).
Steel grade 80 for 26 Gauge, Grade 50 for 24 and 22 Gauge, per ASTM A-792
*
Acrylic Coated Galvalume
®
(ACG) / ASTM A-792 - AZ55
Prepainted Galvalume / ASTM A-792 - AZ50
**
Fluorocarbon (PVDF)
*
Differential appearance of Acrylic Coated Galvalume roofing materials is not a cause for rejection.
**
Meets both Kynar 500 and Hylar 5000 specifications.

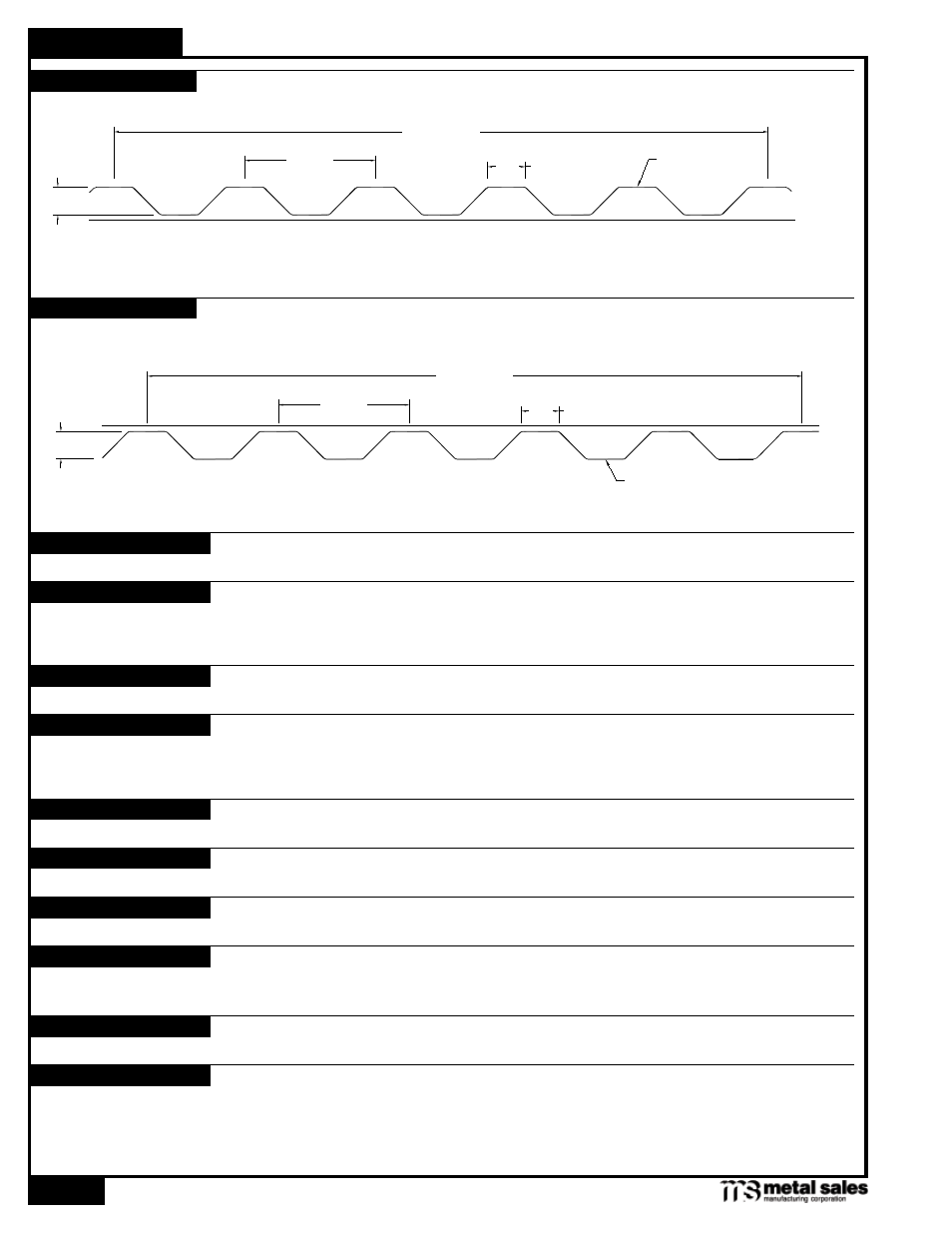

1.5"
7.2"
2.1"
