Metal Sales IC72-Panel - Manual (Page 14)

PIC-14
IC72-PANEL
© Metal Sales Manufacturing Corporation/ Subject to change without notice/ Effective Date 9/11
800.406.7387 (Corporate Office) • www.metalsales.us.com

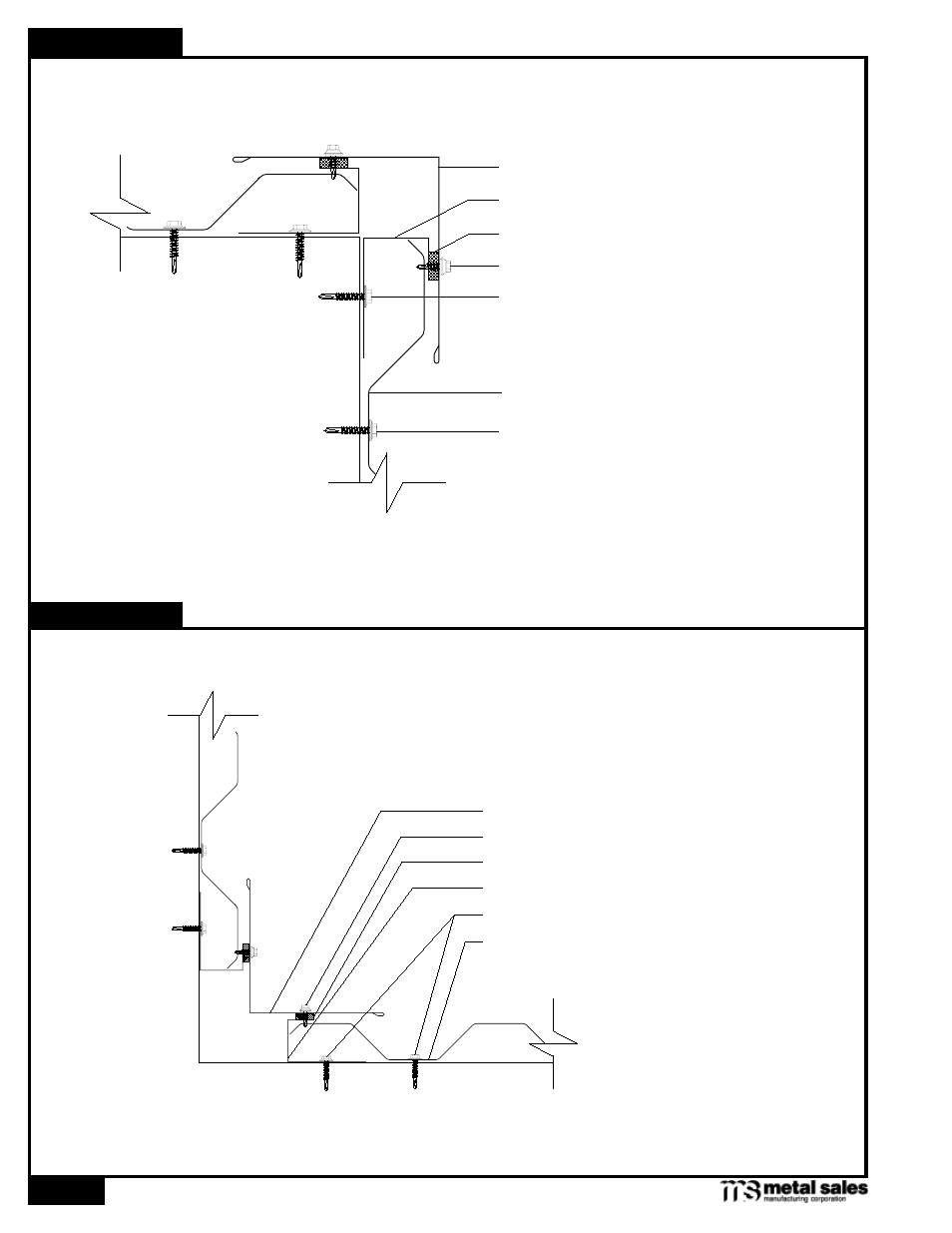

o
uTside
C
orner
d
eTail
i
nside
C
orner
d
eTail
iC72-Panel
Outside Corner
Tape Sealant
#12-14 x 1 1 /
4
" SD (1'-0" o.c.)
IC72-Panel C-Closure
IC72 Wall Panel
1 /
4
"-14 x 7 /
8
" Stitch Screw (1'-0" o.c.)
#12-14 x 1 1 /
4
" SD (1'-0" o.c.)
Inside Corner
Tape Sealant
IC72-Panel C-Closure
IC72 Wall Panel
1 /
4
"-14 x 7 /
8
" Stitch Screw (1'-0" o.c.)
#12-14 x 1 1 /
4
" SD (1'-0" o.c.)
