7. ) :Disables all channel outputs. Black out
8. ) :To activate the program mode.Display blinks when activated. Program
9. ) : To control MIDI operation or activates save function. MIDI/Add
10. ) :To select Auto run in chase mode or delete scenes and/or Auto/Del
chases.
11. ) :To trigger sound activation in Chase mode or to Music/Bank Copy
copy a bank of scenes from one to another in program mode.
12. ) :In Auto Chase mode used to change the rate of Tap SYNC/Display
chase and in program mode change LCD display value.
13. ) : To adjust the Fade Time.Fade Time is the time it Fade Time Slider
take s the DMXMaster to completely change from one scene to another.
14. ) :To adjust the rate of chase speed in Auto Mode. Speed Slider
15. ) :To adjust the output level from 0~255 or the intensity Faders(1~8)
from 0%~100% of each channel.
16 17 18 19

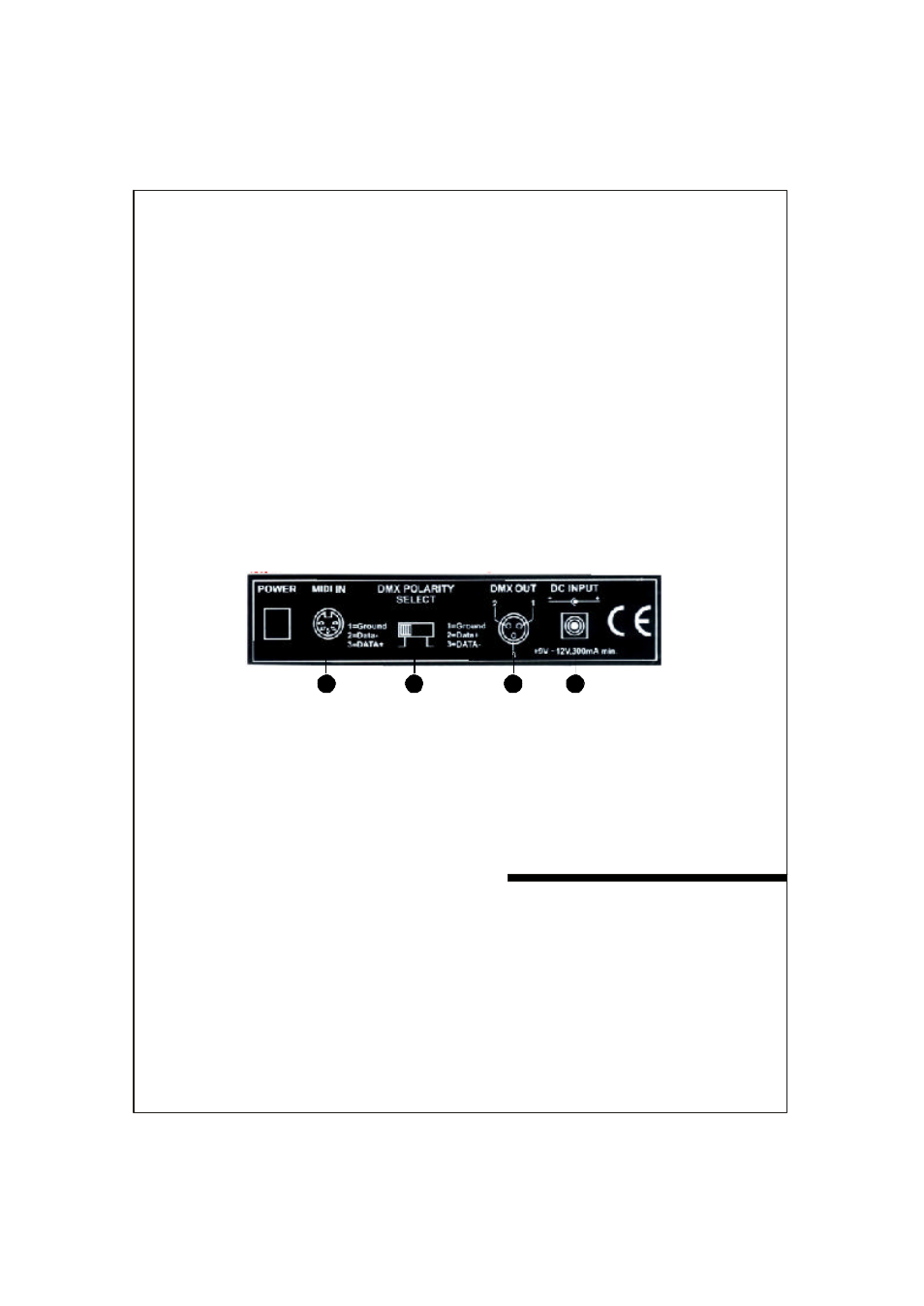

Rear Control Panel
16. ) To receive MIDI data. MIDI in:
17. ) :Make sure the polarity of your fixture and setthe DMX Polarity Select
DMX Master to the properpolarity.
18. ) :To send DMXsignal to fixtures or packs. DM XOutput
19. ) :To supply a DC9~12V power,300mA minimum. DC Input
3.OPERATION INSTRUCTIONS
DMX 512 Addressing
Dip Switch setting:Each Dipswit cheas an address based on binary mode.
Dip Switch No.
Value
1 2 3 4 5 6 7 8 9
1 2 4 8 16 32 64 128 256
Select the address wanted by adding the total of Dip switches on.
