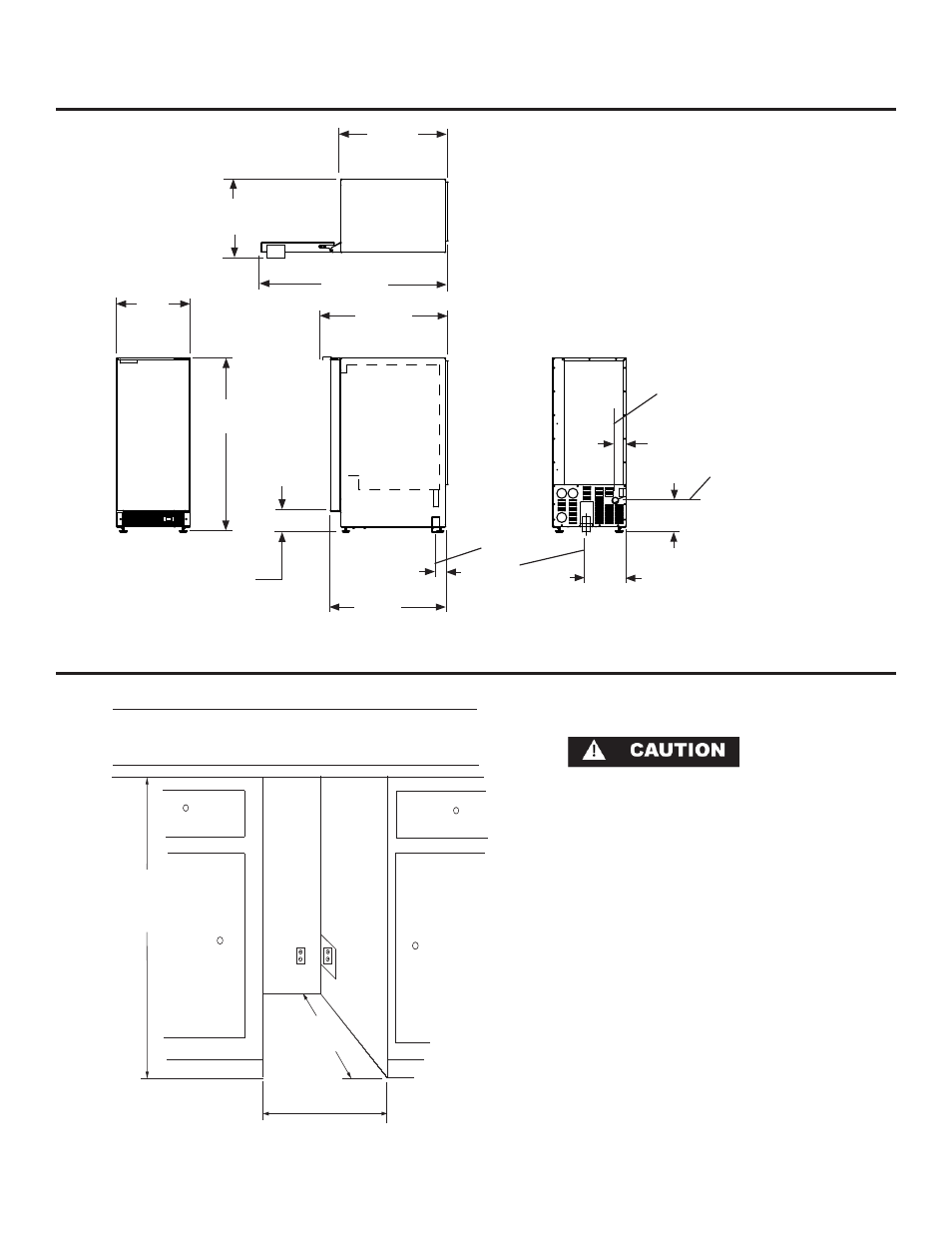

DIMENSIONS FOR 6ADI SOLID DOOR
ROUGH IN OPENING DIMENSIONS, FOR 6ADI SOLID DOOR
15” (38.1 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
Electrical Requirements: A 115 volt, 15 amp dedicated circuit is
required. A 3 prong grounded receptacle is required.
Power outlet can be located in the back wall behind unit. Add 1”
to depth for thickness of plug, or recess outlet 1” into the wall.
Power outlet can also be installed in adjacent cabinetry with a
cutout for routing of power cord. Follow all local building codes
when installing electrical and unit.
Product weight = 100 lbs. (45.5 kg.)
21-1/2”
(54.61cm)
14-7/8”
(37.8cm)
31-1/8” to 32-1/8”
(79.05 to 81.60cm)
3” to 4”
(7.62 to 10.2cm)
CL water supply
CL water supply
2” (5.08cm)
6” (15.24cm)
8” (20.32cm)
CL gravity
drain
2” (5.08cm)
37-13/32”
(95.02cm)
24-37/8”
(63.2cm)
23-5/8”
(60cm)
15-7/8”
(40.34cm)
12
** Minimum rough in opening required is to be
larger than the adjusted height of the cabinet.
** 31-3/8” to 32-3/8”
(79.71 to 82.25cm)
