MARVEL Scientific 6ADi User Manual
Page 11

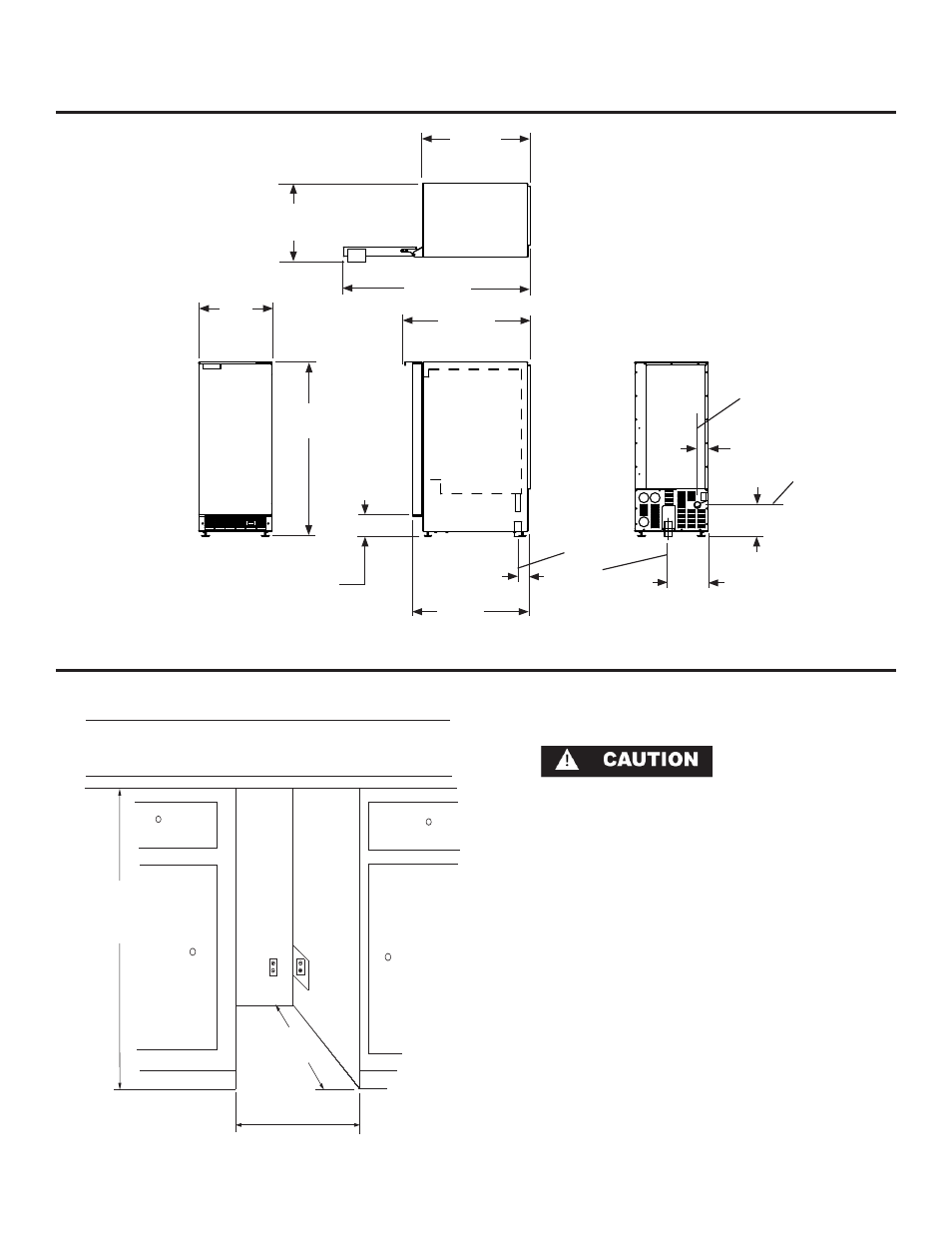

DIMENSIONS FOR 30CM SOLID DOOR
ROUGH IN OPENING DIMENSIONS, FOR 30CM SOLID DOOR
15” (38.1 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installation.
Electrical Requirements: A 115 volt, 15 amp dedicated circuit is re-
quired. A 3 prong grounded receptacle is required.
Power outlet can be located in the back wall behind unit. Add 1” to
depth for thickness of plug, or recess outlet 1” into the wall. Power out-
let can also be installed in adjacent cabinetry with a cutout for routing
of power cord. Follow all local building codes when installing electrical
and unit.
Product weight = 100 lbs. (45.5 kg.)
21-1/2”
(54.61cm)
14-7/8”
(37.8cm)
33-3/4” to 34-3/4”
(85.7 to 88.3cm)
3” to 4”
(7.62 to 10.2cm)
CL water supply
CL water supply
2” (5.08cm)
6” (15.24cm)
8” (20.32cm)
CL gravity
drain
2” (5.08cm)
37-13/32”
(95.02cm)
24-7/8”
(63.2cm)
23-5/8”
(60cm)
15-7/8”
(40.34cm)
11
** Minimum rough in opening required is to be
larger than the adjusted height of the cabinet.
** 34” to 35”
(86.36 to 88.9cm)
