Bits, Slotting/arbor cutters, Router bit components – Bosch PR20EVSK User Manual

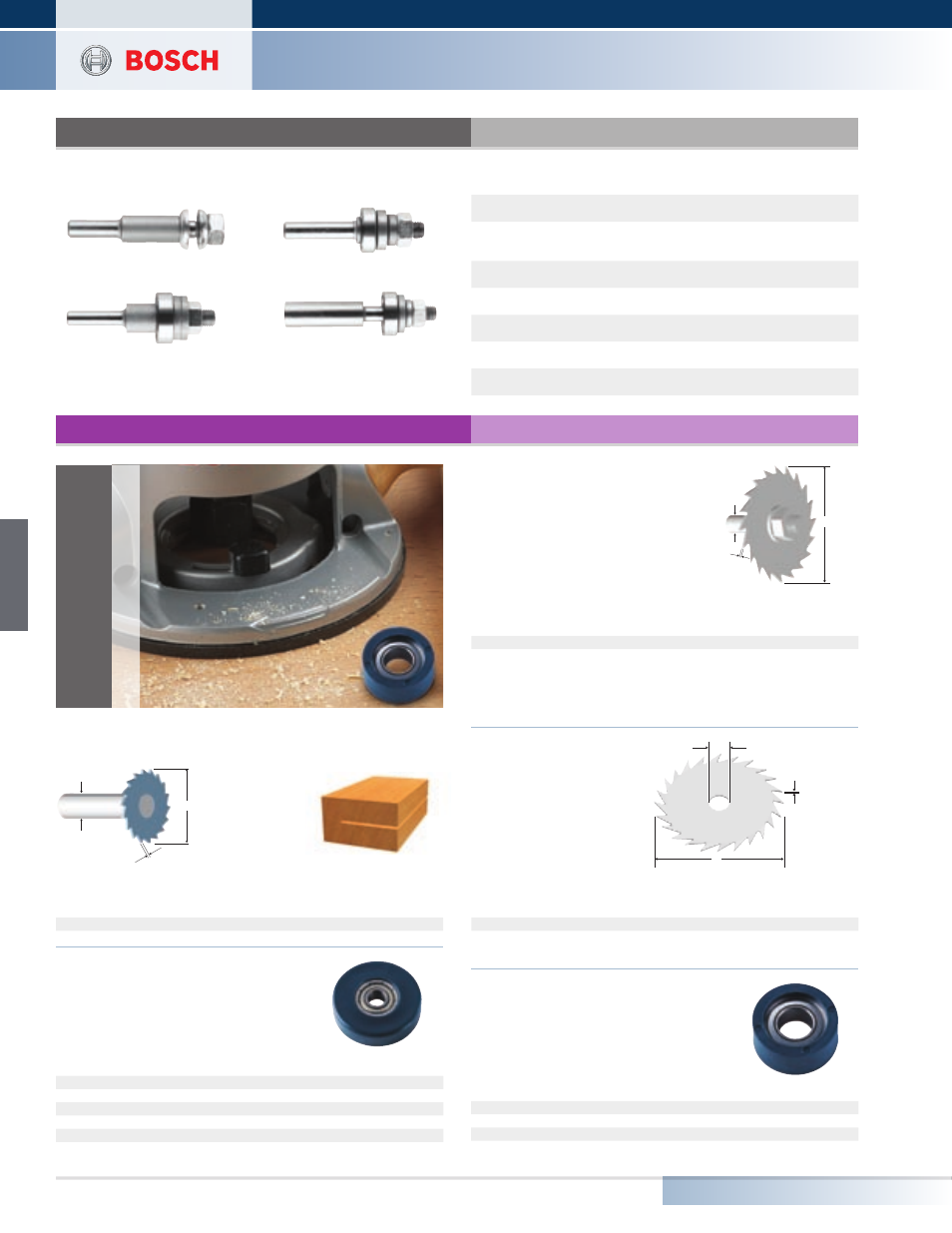

Page 34: Router, Arbors for slotting cutters, Flush-cutting trim saw, Flush-cutting trim saw blades, Trim saw blade, Non-marring bearings, Bearing enlargers
138
Boschtools.com
Toll Free: 877-BOSCH-99
Arbors for Slotting Cutters
For use with 2-wing and 3-wing slotting cutters.
82805
82808
82810
82811
Item #
Arbor
Dia.
Bearing
Dia.
Length
Shank
Dia.
For Use
With
Used on
Part No.
82811
5/16"
7/8"
3"
1/2"
3-wing
slotting cutters
85520M, 85609M,
85610M
92813
5/16"
N/A
1-23/32"
1/4"
3-wing
slotting cutters
85526M, 85527M,
85528M, 85529M,
92837
82815
8 mm
7/8"
(22 mm)
3"
1/2"
2-wing
slotting cutters
85520M
82805
1/4"
N/A
2"
1/4"
2-wing
slotting cutters
85505M, 85506M,
85507M, 85508M
82808
1/4"
5/8"
1-29/32"
1/4"
2-wing
slotting cutters
85505M, 85506M,
85507M, 85508M
82810
5/16"
7/8"
2-5/8"
1/4"
2-wing
slotting cutters
85517M, 85520M,
92837
92812
1/4"
N/A
1-3/4"
1/4"
2-wing
slotting cutters
85506M, 85507M,
85508M
Slotting/Arbor Cutters
Flush-cutting Trim Saw
Solid carbide blade permanently mounted on a shank.
A
C
B
Item #
A.
Cutter
Diameter
B.
Cutter
Thickness
C.
Shank
Diameter
D.
Overall
Length
Number
of Teeth
82800
3/4"
1/32"
1/4"
1-3/32"
18
Router bit Components
A
C
B
Flush-cutting Trim Saw Blades
Complete assembly for flush trimming.
Replaceable blade. 92834 can be converted
to self piloting saw by replacing assembly
spacer with item# 3 600 900 514 or item#
3 600 900 525 ball bearing. It will not cut
flush when self piloted.
Item #
A.
Cutter
Diameter
B.
Cutter
Thickness
C.
Shank
Diameter
D.
Overall
Length
Number
of Teeth
92834
1-5/8"
3/64"
1/4"
N/A
20
92836**
1-5/8"
3/64"
1/4"
N/A
20
Replacement spacer 3 600 200 505
Replacement arbor 3 603 050 518
Replacement nut 3 603 345 501
**Replacement blade
A
C
B
Trim Saw Blade
High speed steel assembly.
Non-marring Bearings
Non-marring high precision bearings are specially
engineered and fitted with sleeves to prevent
scratching on all surfaces. Use with piloted router
bits including laminate trim and edge forming bits.
Item #
A.
Cutter
Diameter
B.
Cutter
Thickness
C.
Shank
Diameter
D.
Overall
Length
Number
of Teeth
92837*
2"
5/64"
5/16"†
N/A
24
*Use with arbor 92813 or 82810
†Arbor size
Item #
Inside Diameter
Outside Diameter
NMB004
3/16"
1/2"
NMB005
1/4"
5/8"
NMB006
1/4"
3/4"
NMB300
One each of NMB004, NMB005 and NMB006
Bearing Enlargers
Use Bosch bearing enlargers for changing profiles,
widths and rabbeting depths of ball bearing-piloted
router bits with 3/16" O.D. pilots.
Item #
Inside Diameter
Outside Diameter
BE006
3/16"
3/4"
BE007
3/16"
7/8"
BE008
3/16"
1"
BE009
3/16"
1-1/8"
BE400
One each of BE006, BE007, BE008 and BE009
Router
bits
