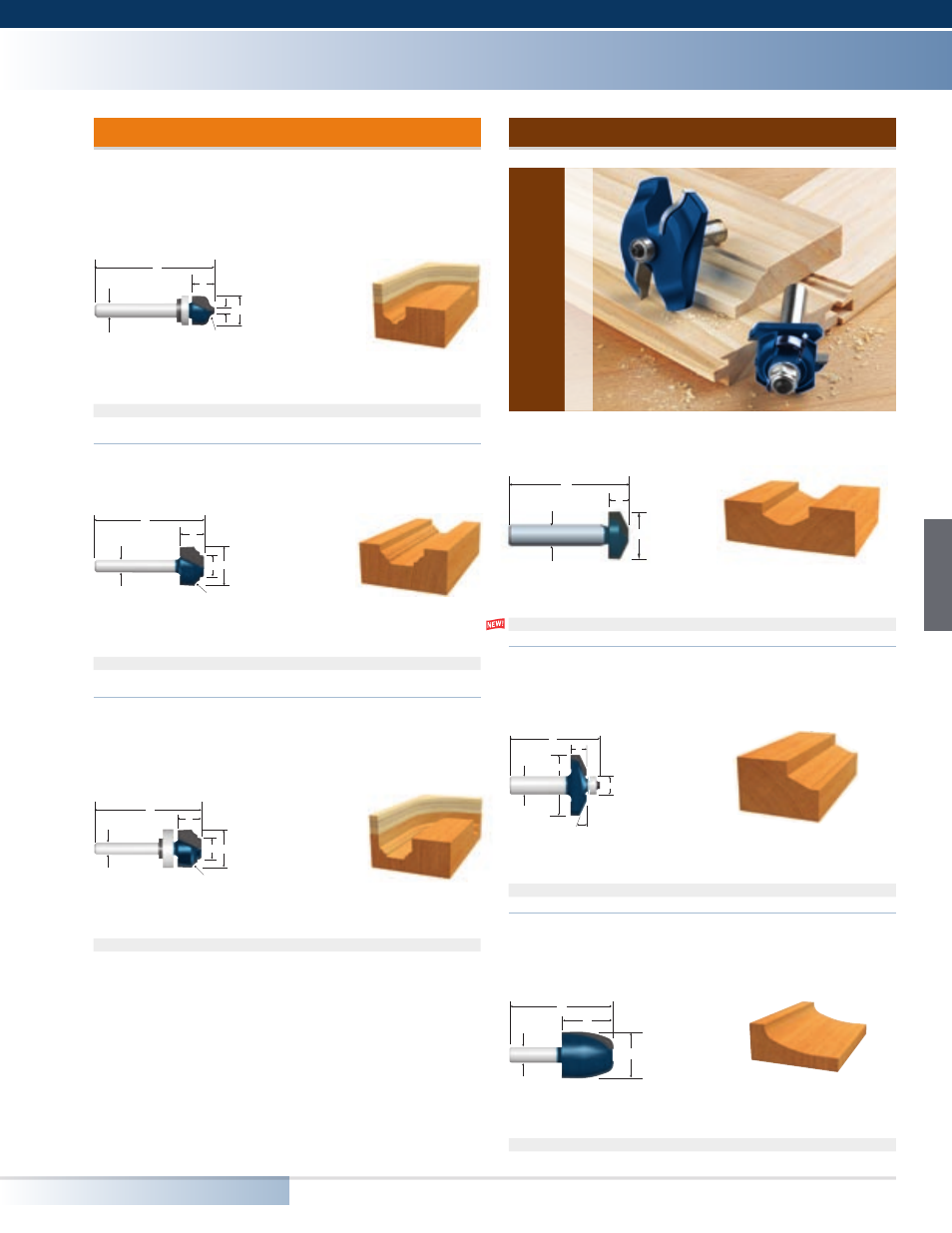

Router
bits
Surface Forming Bits
A
D
E
F
C
B
Top Bearing Mounted – Carbide Tipped Ogee Bits
Top bearing mounted bits are ideal for templet cutting, grooving,
lettering and plunge cutting from above and below the workpiece.
• Replacement collar 3 600 231 500
• Replacement set screw 3 603 401 506
A
D
E
F
C
B
Carbide Tipped Traditional Bits
Micrograin bits ideal for wide, shallow, decorative cuts. The flat
bottom gives a raised effect. Also recommended for edge forming.
A
D
E
F
C
B
Top Bearing Mounted – Carbide Tipped Traditional Bits
Ideal for templet cutting, grooving, lettering and plunge cutting
from above and below the workpiece.
• Replacement collar 3 600 231 500
• Replacement set screw 3 603 401 506
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Small
Diameter
F.
Radius
85686M
1/2"
3/8"
1/4"
2"
.157
5/64"
85687M
3/4"
1/2"
1/4"
2-1/8"
.249
9/64"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Small
Diameter
F.
Radius
85474M
1/2"
13/32"
1/4"
2-1/16"
.270
5/64"
85475M
3/4"
7/16"
1/4"
2-1/16"
.338
9/64"
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Small
Diameter
F.
Radius
85690M
1/2"
13/32"
1/4"
2-1/16"
.270
5/64"
85691M
3/4"
7/16"
1/4"
2-1/16"
.338
9/64"
cabinetry/Joinery Bits
D
A
C
B
Carbide Tipped Raised Panel Bit
Use a raised panel bit for cutting wide, shallow grooves in one pass for a raised
panel effect.
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85480M
1-1/8"
1/2"
1/2"
2-3/4"
Carbide Tipped Raised Panel Bit with Bearing
Micrograin control cut bit used to create clean, simple lines to accentuate a surface.
• Recommended for use with a router table. Minimum recommended
panel thickness is 3/4"
A
D
E
F
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Lgth.
C.
Shank
Diameter
D.
Overall
Length
E.
Bearing
Diameter
F.
Angle
85583M
1-5/8"
1/2"
1/2"
2-3/8"
1/2"
25°
Carbide Tipped Cove Vertical Panel Raiser Bit
Micrograin bit with a long, swooping radius (1/4" - 2-1/2") for creating beautiful panels.
• Recommended for use with a router table. Minimum recommended
panel thickness is 3/4"
A
D
C
B
Item #
A.
Overall
Diameter
B.
Cutting
Edge Length
C.
Shank
Diameter
D.
Overall
Length
85708M
1-1/8"
1-5/8"
1/2"
3-1/8"
