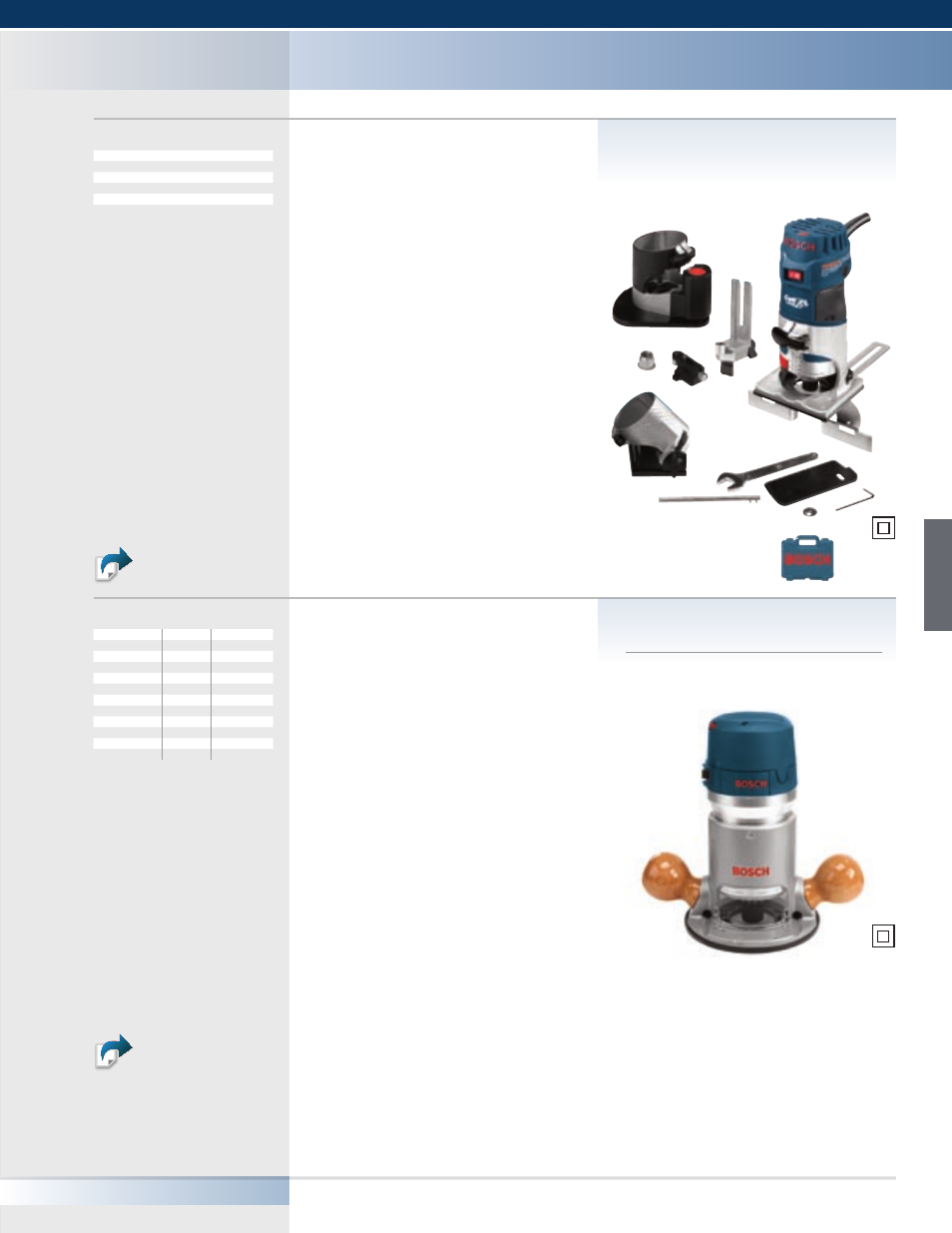

Fixed Base
Routers
See pages 110, 114, 116–138 for
router accessories.
BOSCH
See pages 111–138 for
router accessories.
BOSCH
Carrying Case
Included
Specifications
Amperage 5.6
Max. Tool HP 1 HP
Collet Capacity 1/4"
No Load RPM 16,000 - 35,000
Weight (lbs.) 3.3
Includes
PR20EVS Motor
Fixed Base ............................................PR001
1/4" Self-Releasing Collet (2) .. 2 609 160 084
Drop-Forged Wrench ............ 2 609 110 438
Straight Edge Guide ............................PR002
Roller Guide .........................................PR003
Offset Base with Roller Guide ...........PR004
Tilt Base ................................................PR005
Underscribe Plate with Wrenches ....PR006
Carrying Case ..................................Included
Features
• Great for rounding-over deck planks and railings,
hinge mortising, decorative edge forming, slot
cutting, dovetailing, window cutouts, decorative
inlays, laminate trimming and more.
• Rugged Aluminum Fixed Base - Durable, solid
and precise
• Fast & Precise Depth Adjustment System - Allows
both macro and micro adjustment
• Unique Finger Support Pockets - For additional
stability, especially when trimming edges
• Enhanced Bit Capacity - Fixed Base accepts bits
up to 1-5/16” in diameter
• Soft-start - Reduces start-up torque
• Constant Response™ Circuitry - Monitors and
maintains speed under load for consistent
performance and provides overload protection
• Quick-clamp System - Allows motor to be easily
adjusted or moved from base to base
• Angled cord exit - Helps keep cord out of the way
• Palm-grip design with Soft Grip - The most
comfortable router in its class.
• Offset Base with Spindle Lock - Allows routing near
vertical surfaces, such as when trimming laminate
applied to top of countertop backsplash
• Tilt Base with Detents at Key Angles - Allows
routing at special angles and in hard-to-reach areas
• Underscribe Attachment - Mounts to fixed base for
creating precise seams between sheets of laminates
• Straight Edge Guide - Guides router along edges
of workpiece or up to 3-5/8" from edge
• Roller Guide - Guides router when non-bearing bit
or unpiloted bit is used
• Rugged carrying case
PR20EVSNK
Colt™ Variable-Speed Electronic
Palm Router Installer's Kit
Specifications
1617 1617EVS
Rating 120V AC 120V AC
Amperage 11 12
Max. Motor HP 2 2.25
Collet Capacity 1/4", 3/8", 1/4", 3/8",
1/2", 8mm 1/2", 8mm
No Load RPM 25,000 8,000 - 25,000
Base
Opening (in.) 3-3/4" 3-3/4"
Diameter (in.) 6" 6"
Cord Length (ft.) 10 10
Weight (lbs.) 8.1 8.3
Includes
1/4" S. R. Collet Chuck ......... 2 610 906 283
1/2" S. R. Collet Chuck ......... 2 610 906 284
16mm Shaft Wrench ............. 2 610 991 388
24mm Collet Nut Wrench ..... 2 610 992 417
Chip Shield ............................. 2 610 991 389
Tool-Free Templet
Guide Adapter.................... 2 610 991 370
Optional Equipment
3/8" S. R. Collet Chuck ......... 2 610 906 287
8mm S. R. Collet Chuck ........ 3 607 000 645
Carrying Case ........................ 2 610 996 005
Features
• Macro and microfine bit depth adjustment system
with resettable depth indicator - For fast, precise
depth adjustment
• Quick-clamp System - Allows motor to be easily
adjusted or moved from base to base
• Precision Centering Design - Makes it easy to keep
bit on intended cutline when using jigs, templets,
dovetail fixtures and similar guidance devices
• Large 3-3/4" base opening plus 2" subbase opening
- Accepts large bits
• Tool-free templet guide adapter - For fast and easy
RA-Series templet guide changes
• Right or left switch location - For user preference
and consistency (motor does not rotate during
depth adjustment)
• One-piece armature shaft - For accuracy and long
bit shank capacity
• Classic hardwood handles - For comfort and beauty
• Now includes RA1161 Fixed-Base with system for
adjusting bit height from above a router table!
• T-Handle Adjustment Wrench sold separately
• Base has threaded holes for mounting to router
table positioned in Bosch 4-hole pattern and
common 3-hole pattern.
• Dust-sealed power switch
1617EVS
also features
• Variable speed dial - For matching speed
to workpiece and task
• Constant Response™ Circuitry - Maintains constant
speed under load, provides overload protection
• Soft-start - Reduces start-up torque
• T-Handle Hex Above-Table Depth
Adjustment Wrench — 2610923193
1617
2 HP Fixed-Base Router
1617EVS
2.25 HP Fixed-Base Electronic Router (shown)
