4 Electrical installation
Important notes
EDKLM3−XXX−001 DE/EN/FR 1.1
32
l
H1_E_INST−Hin_Inbetr_ELM3
4 Electrical installation
Important notes
ƒ Installation must
– always be in accordance with the operating conditions specified in the Technical
data ( ^ 26).
– be carried out to EN 60204−1.
ƒ Please observe the following when selecting the cable type:
– The cables used must comply with the approvals required for the application (e. g.
VDE, UL etc.).
– Fuses and cable cross−sections must be dimensioned in accordance with the
specifications in the documentation for the basic device.
ƒ Please observe the following when laying the PE cable:
– The PE connection must comply with EN 61800−5−1.

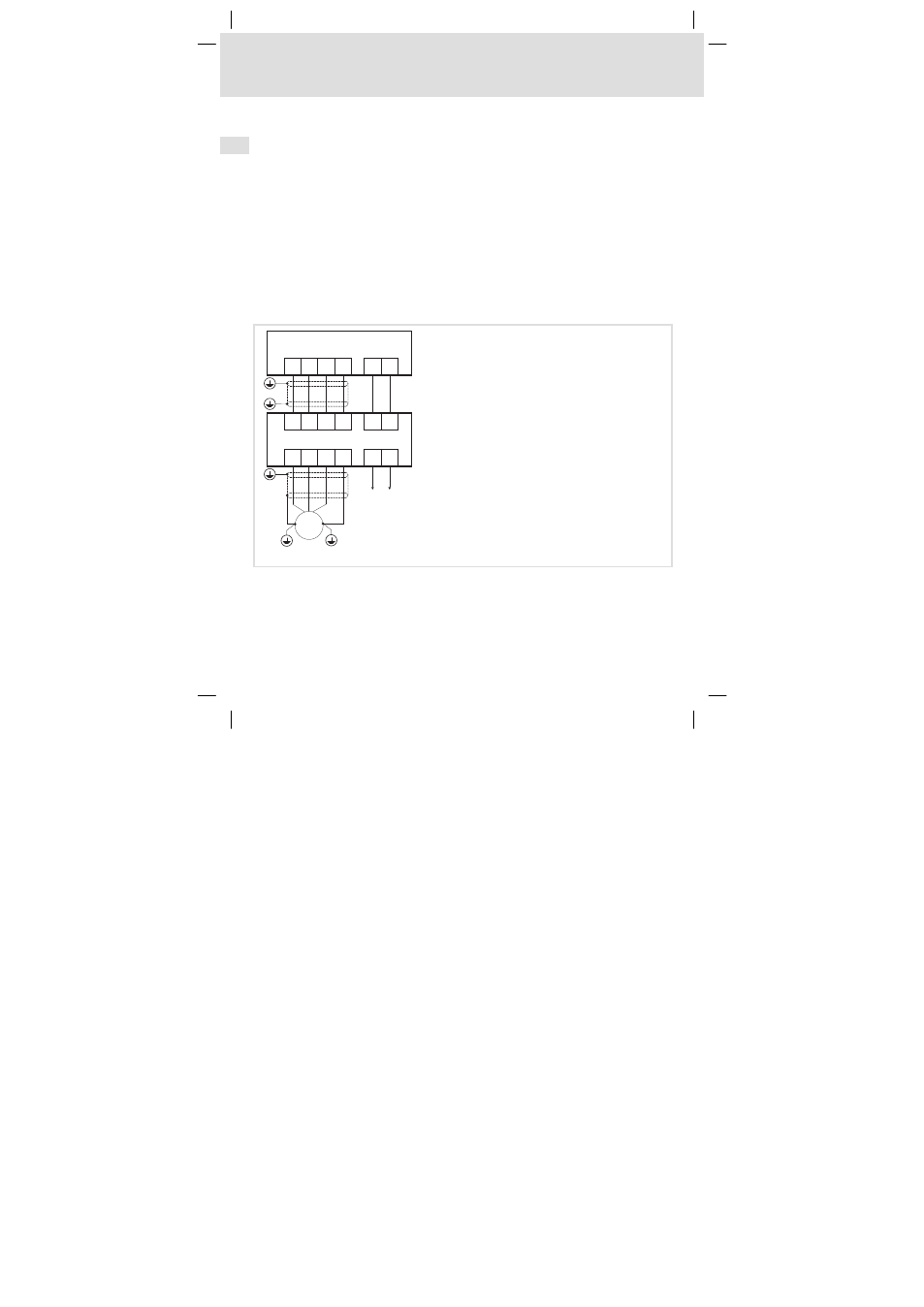

Connection plan
M
3~
U
U1
V
V1
W
W1
ELM3...
0
1
U V W +UG
+UG
T1
PE
PE -UG
-UG
T2 PE
ELM3−004
0 Controller
1 Connection of the thermal contact (not for all types available)
Use twisted cables
