Program structure
MA8201BB 2.0
l
- 3 -

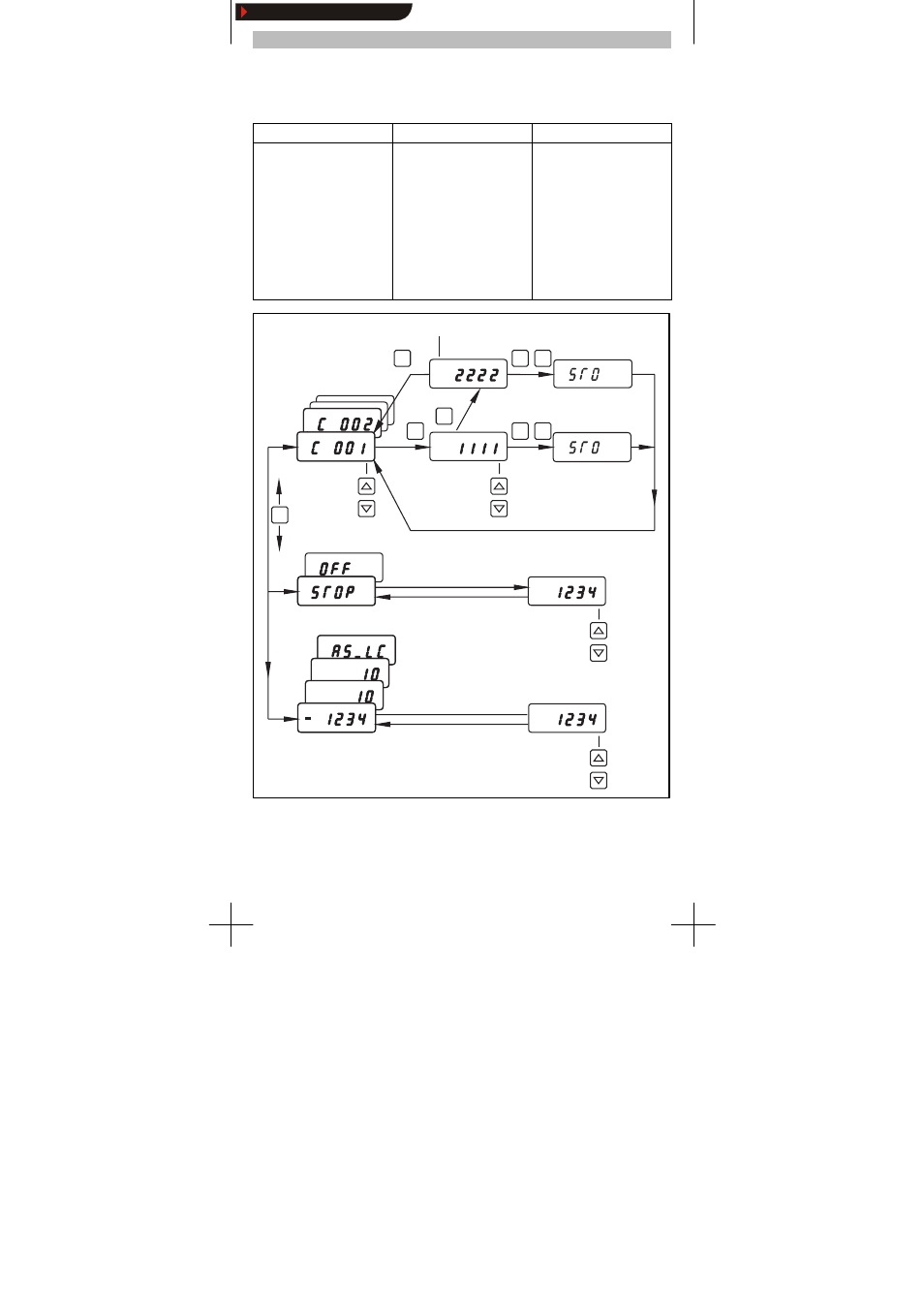

Program structure
The program consists of three levels. The frequency inverter is parameterized in the code
level and the parameter level:
Operating level
Code level
Parameter level
The frequency inverter is in
the operating level after
every mains connection.
The switch-on display (C004)
is displayed.
Change to the code level
using the PRG key.
Select a code by pressing ▲
or
▼ in the code level.
Change to the parameter
level using the SH key.
The parameter level contains
two parameter sets, PAR1
and PAR2. You can change
from PAR1 to PAR2 using the
SH key.
Every code contains para-
meters using which you can
parameterize your drive.
The flashing of ’PAR1’ or
’PAR2’ indicates in which
parameter set you are
current working.
P A R 1
H z
S E T
.
H z
S E T
.
S H
S H
P R G
%
A
H z
.
S H
S H
S H
P R G
P R G
D i s p l a y v a l u e
C h a n g e v a l u e
S a v e v a l u e
1 s
C o d e l e v e l
P A R 1 o r P A R 2 b l i n k i n g ,
w h e n c h a n g e a b l e
C o n t r o l l e r
i m h i b i t e d
S e t p o i n t
c h a n g e d i f
C 0 0 1 = 1
C o n t r o l l e r
e n a b l e d
1 s
1 s
P a r a m e t e r l e v e l
O p e r a t i n g l e v e l
S e l e c t
c o d e
P A R 2
P A R 1
P A R 2
S e t p o i n t
c h a n g e d i f
C 0 0 1 = 1
