Display elements and function keys
MA8201BB 2.0
l
- 2 -
Display elements and function keys
S H P R G
S T P
R U N
P A R 2 0 V L V I M A X D B T E M P
P A R 1
L O A D
S E T
A
%
H z
L O A D
L O A D
L O A D
L O A D
L O A D g e n e r a t i v e
n o
2 0 %
4 0 %
1 0 0 %
8 0 %
6 0 %
1 6 0 %
L O A D
L O A D
L O A D
l o a d
o v e r l o a d
l o a d
l o a d
l o a d
l o a d
l o a d
l o a d

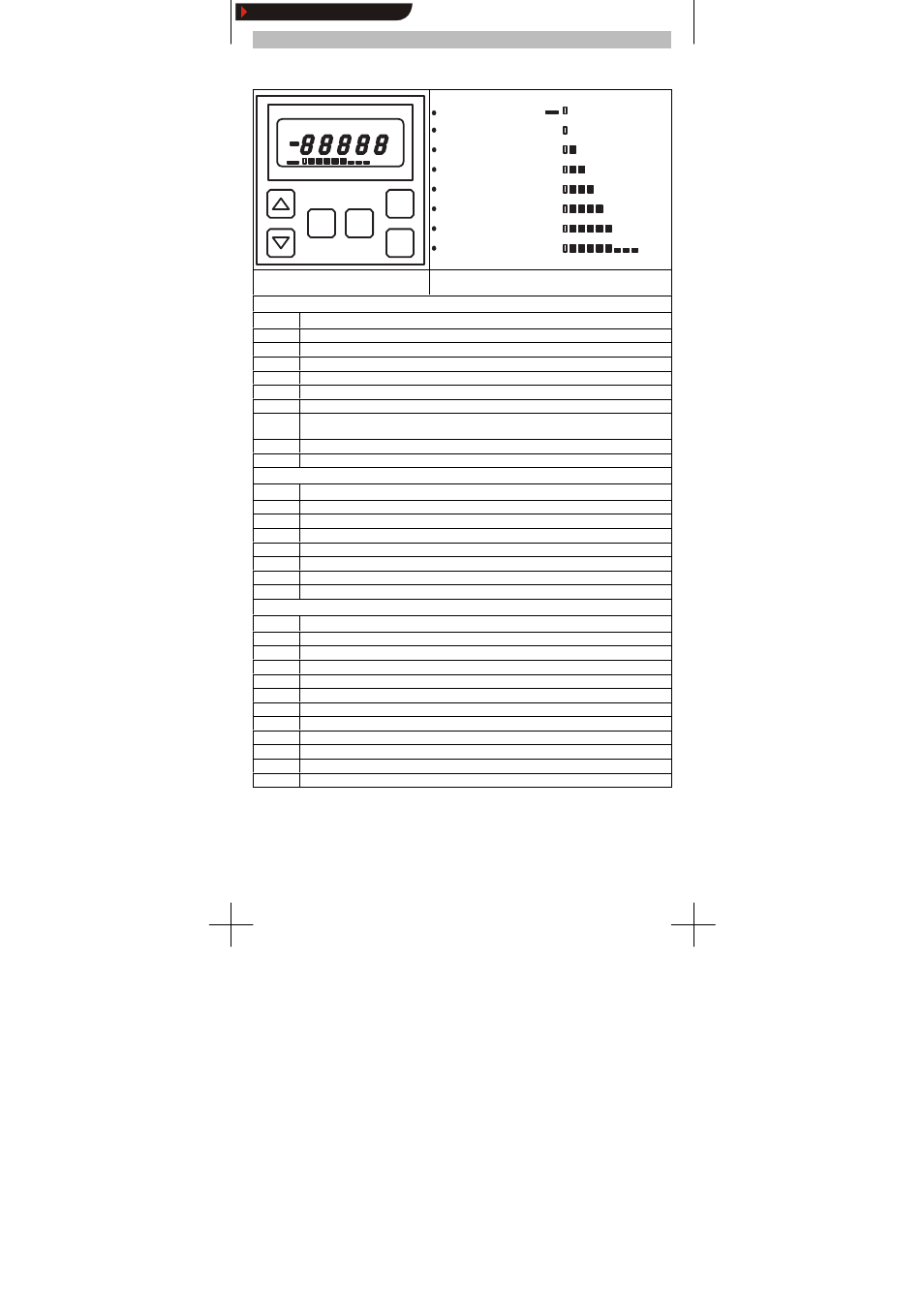

8201BB operating module Bargraph display
The last line of the LCD display shows the inverter load:
Key functions
Key
Function
PRG Change between operating level and code level
SH Change between code level and parameter level
▲ Increase displayed value
▼ Reduce displayed value
SH + ▲ Scroll up displayed value
SH + ▼ Scroll down displayed value
SH + PRG Save modification (save every parameter individually before disconnecting the controller
from the mains)
STP Inhibit frequency inverter
RUN Enable frequency inverter
Status displays
Display
Meaning
OV Overvoltage
LV Undervoltage
IMAX Set current limit exceeded
TEMP Heatsink temperature immediately before disconnection ( J
max
-10 °C)
PAR1 Parameter set 1 active, PAR1 flashing: programming is possible
PAR2 Parameter set 2 active, PAR2 flashing: programming is possible
SET Setpoint input via keypad
Five-digit 7-segment display
Display
Meaning
OFF Frequency inverter inhibited by a LOW signal at terminal 28
STOP Frequency inverter inhibited (by STP key or quick stop function or field frequencyf
d
= 0Hz)
AS_LC Autostart lockout, controller will only be enabled after a low-high signal at terminal 28
STO The parameter is saved
dC_b DC injection braking active
LU Undervoltage
SET1 Parameter set 1 is overwritten with the factory setting
SET2 Parameter set 2 is overwritten with the factory setting
rEAd1 Parameter set 1 is overwritten with the operating module data
rEAd2 Parameter set 2 is overwritten with the operating module data
STOE Parameter sets PAR1 and PAR2 are transmitted to the operating module
