Lenze 13466147 EDBSM01 v19 EN 21
Installation 3
3.6 SCL/SCM Control Wiring Diagrams
3.6.1 SCL/SCM Terminal Strip

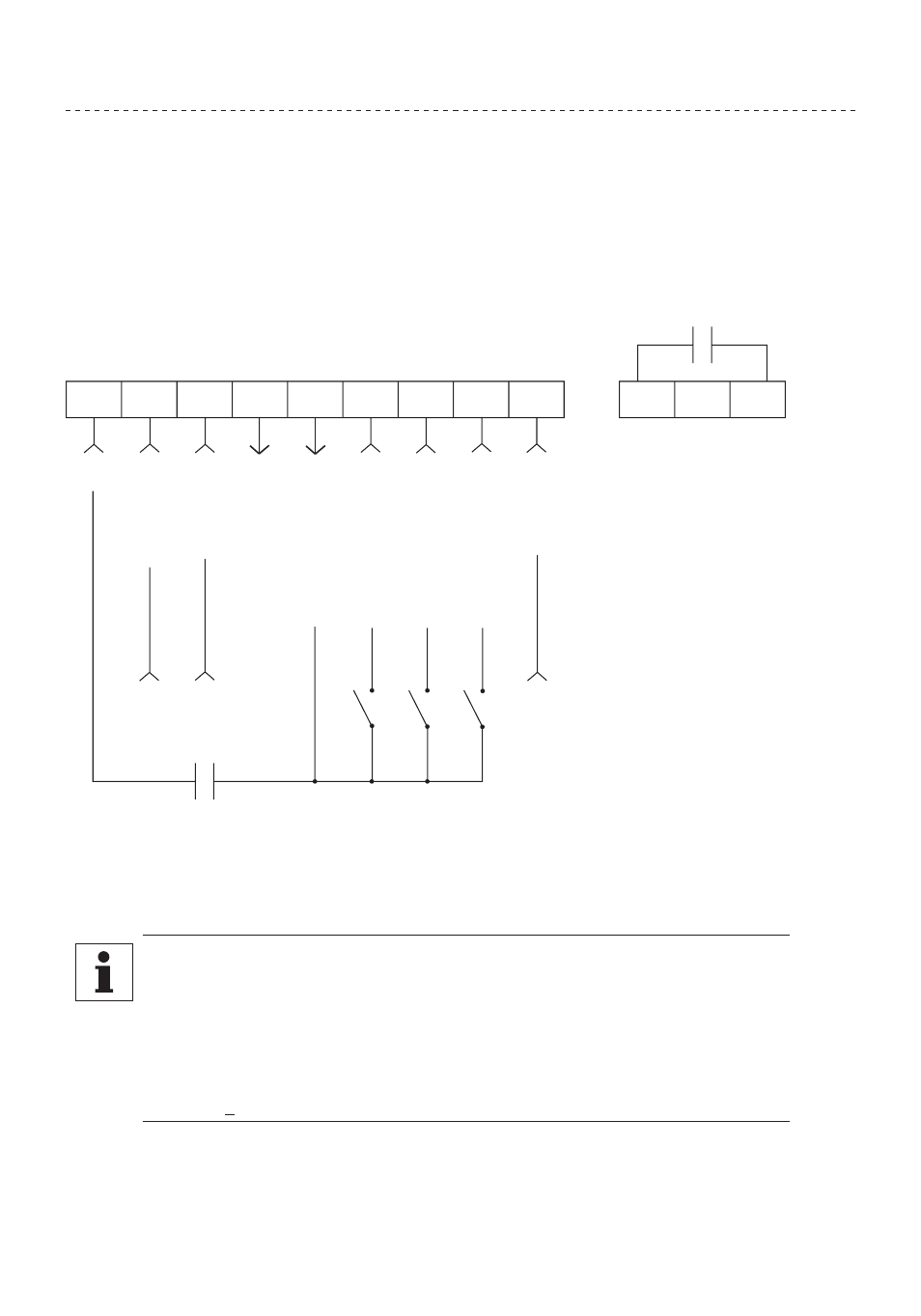

Shown below is the control terminal strip, along with a brief description of the function of each
terminal. The following wiring diagram examples provide a quick reference to wire the drive for the
most common configurations.
Maintained
RUN/STOP
Contact
1 2 25 13A 13E 13B
RUN
5 6 11 16 17
SIGNAL COMMON
0-10V DC INPUT
TB-13A FUNCTION SELECT TB-13B FUNCTION SELECT TB-13E FUNCTION SELECT
4-20mA INPUT
FORM A RELAY
- + +
SPEED POT POWER SUPPLY
DIGITAL INPUT REFERENCE
SCL/SCM Terminal Strip
NOTE
•
The function of terminals TB-13A, 13B, 13E and the Form A relay at terminals 16
and 17 are dependent on the programming of certain parameters.
Refer to Section 4.4 Description of Parameters.
• The digital inputs (terminals 1, 13A, 13B, and 13E) are active-high. They can
be activated using terminal 11 (which is +12 VDC) as shown in the following
diagrams, or by using an external voltage source with a range of +12 VDC to +28
VDC (+ 10%).
