Troubleshooting and fault elimination

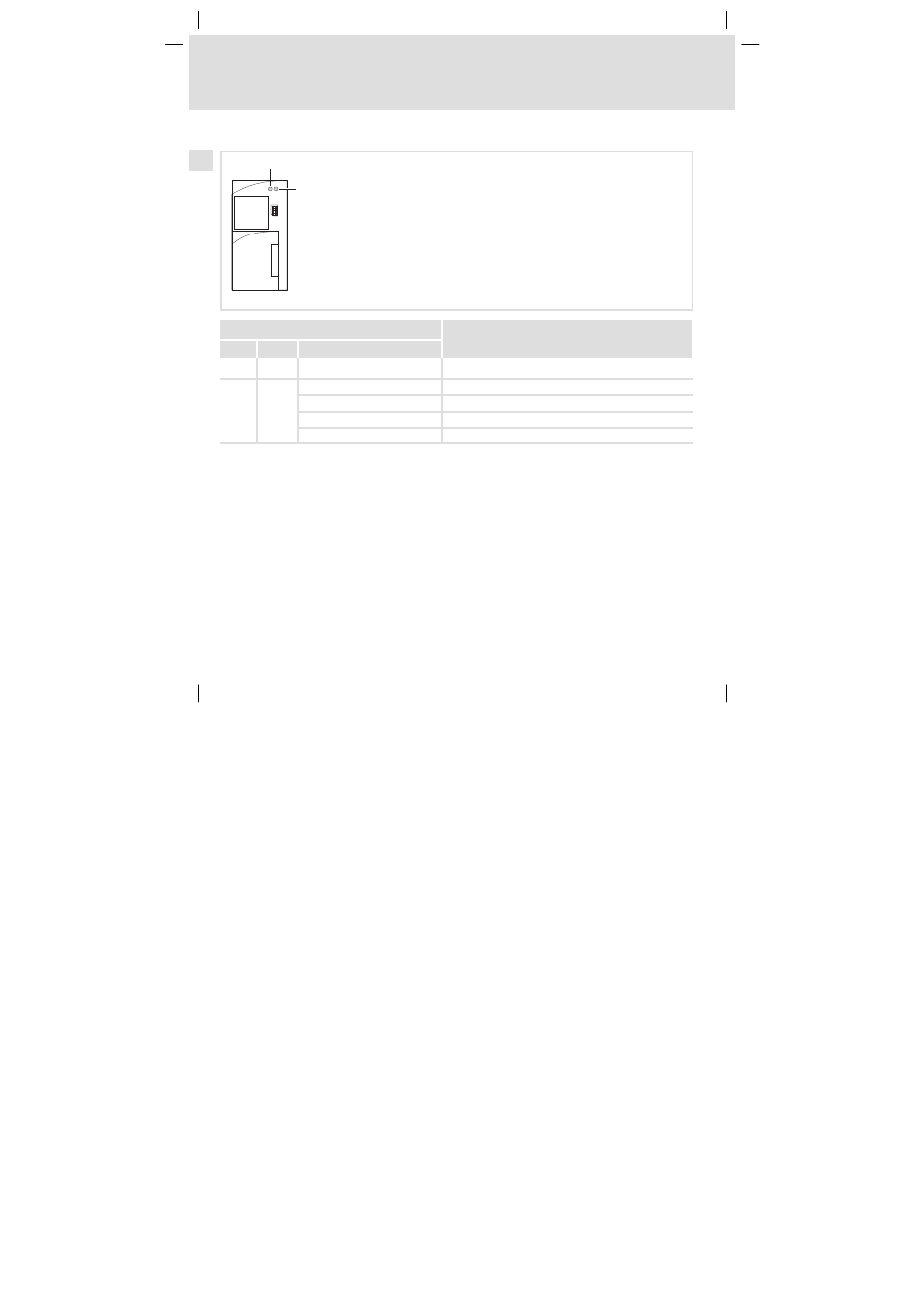

LED status displays
8
l
68
EDK10200EV3 DE/EN/FR 7.1
8
Troubleshooting and fault elimination
LED status displays
0
1
plc023
LED
Description
Pos.
Colour
Status
0
red
blinking
Fault: TRIP
1
green
blinking every 0.5 seconds
PLC program not loaded
on
PLC program is running
off
PLC program loaded
blinking every second
PLC program loaded but stopped
