Lenze E82ZAFCC200 - Manual (Page 51)

Electrical installation
Assignment of the terminals
6
EDK82ZAFCC-200 DE/EN/FR 4.0
51

H2_BelegungAnschlKlemmen-INS_Klembesch
Assignment of the terminals

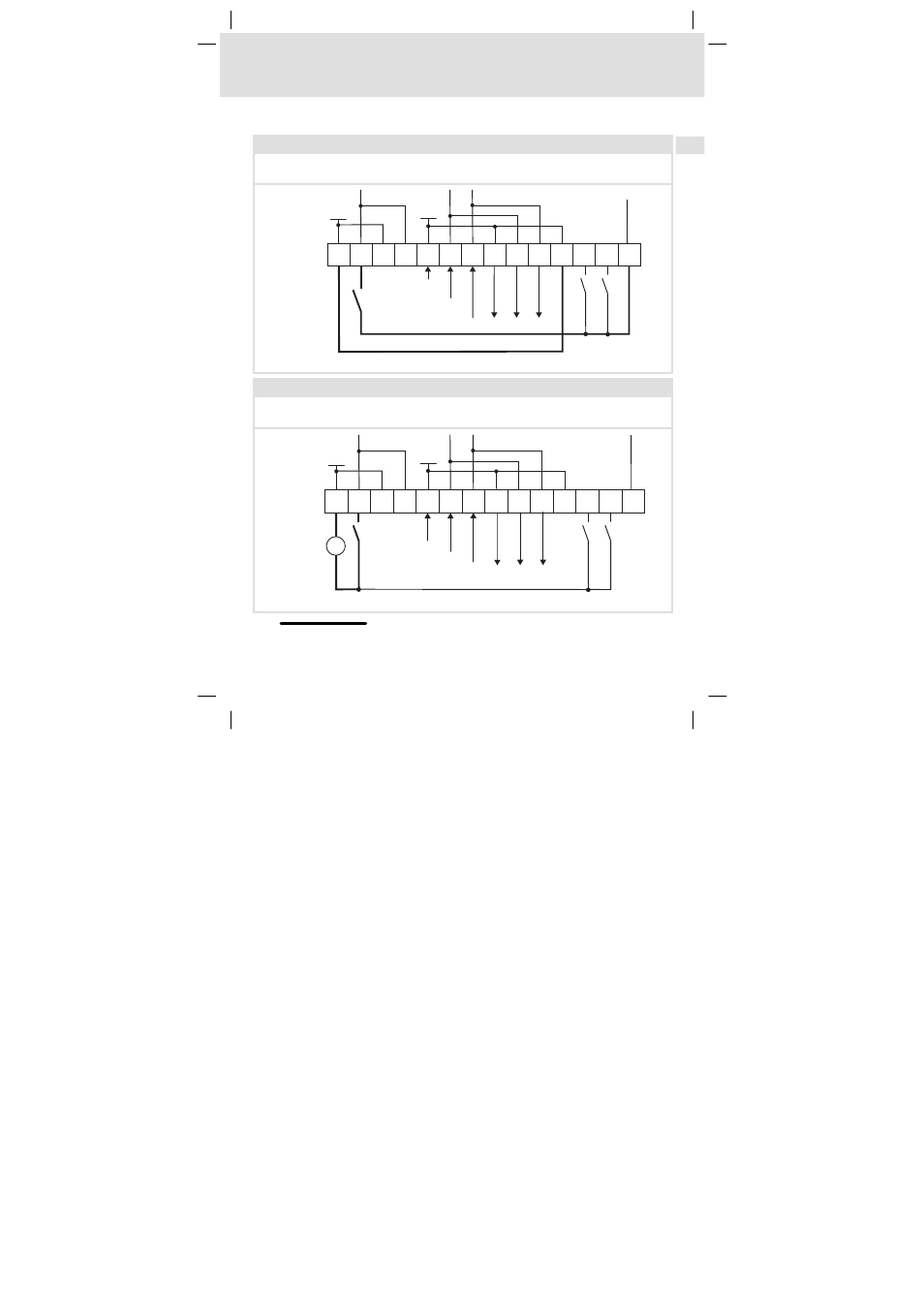

Supply via the internal voltage source (X3/20)
X3/28, controller inhibit (CINH)
X3/E1 and X3/E2, digital inputs
GND1 +20V
39 28 39 28 7 LO HI 7 LO HI 7 E1 E2 20
CAN-GND
CAN-LOW
CAN-HIGH
X3
GND2
E82ZAFC235
Supply via an external voltage source
X3/28, controller inhibit (CINH)
X3/E1 and X3/E2, digital inputs
CAN-GND
CAN-LOW
CAN-HIGH
+
_
24V
ext.
+20V
GND2
39 28 39 28 7 LO HI 7 LO HI 7 20
X3
E1 E2
GND1
E82ZAFC231
Minimum wiring required for operation
