Product description
Connections and interfaces
3
l
11 EDS82ZAFIC EN 2.0

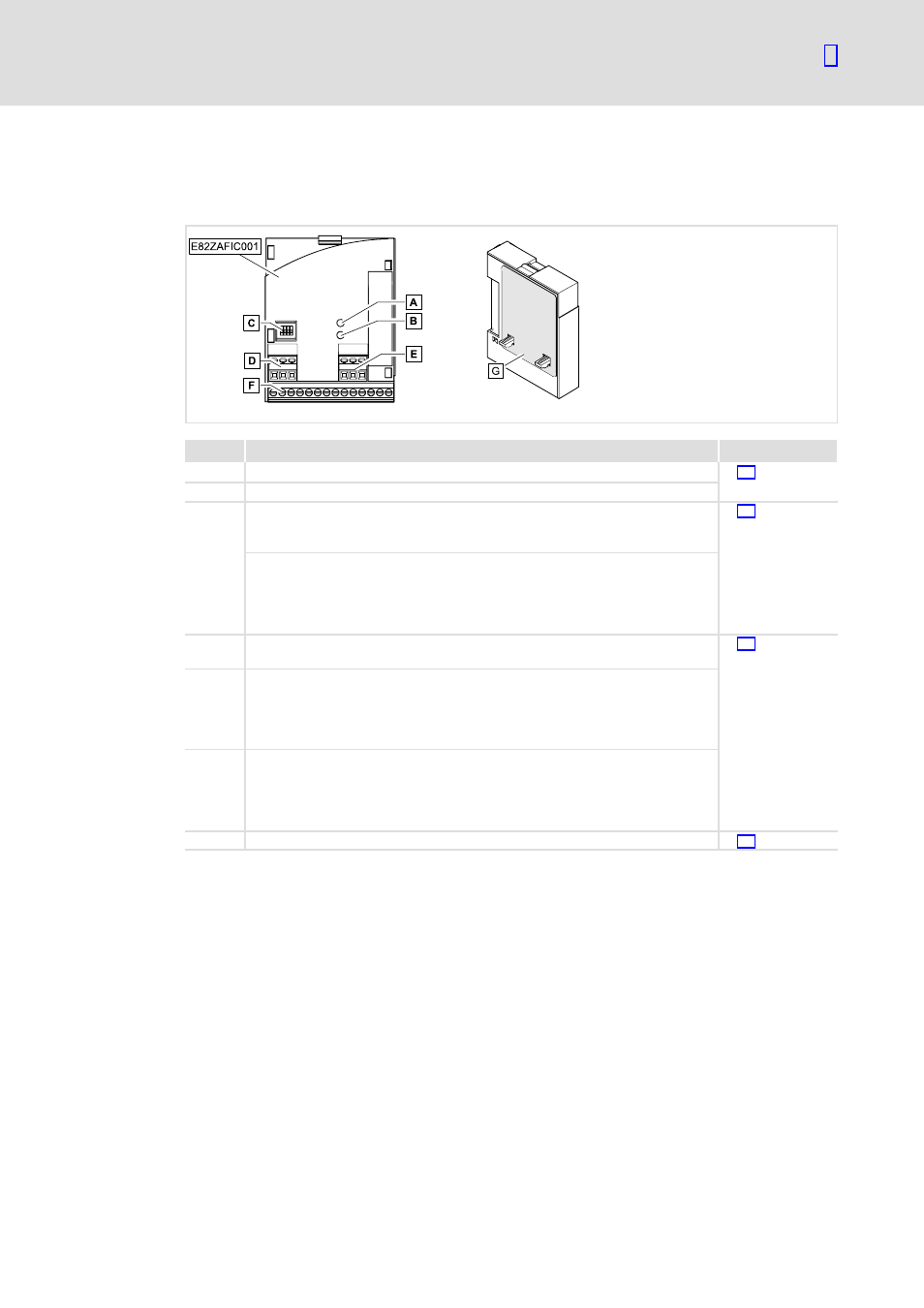

3.3 Connections and interfaces
E82ZAFIC001function module
E82ZAFI004B
Pos. Description See
A LED (yellow): Status of the INTERBUS communication
^ 54
B LED (green): Connection status to the controller
C DIP switch S1
l Setting for the last node = OFF
l Setting for all other nodes = ON
^ 29
DIP switches S2 ... S4
l Configuration of
– the process data words (PCD)
– the parameter data words (PCP)
– the ID codes
D Plug connector X3.1
l Connection for external voltage supply of the function module
^ 15
E Plug connector X3.2
l Reference terminal GND1, e.g. for external voltage supply of the function
module
l Reference terminal GND2, e.g. for external supply of the controller inhibit
(CINH)
F Plug connector X3.3
l Connection for
– INTERBUS
– controller inhibit (CINH)
– internal supply of the controller inhibit (CINH)
G Nameplate ^ 10
