6.3 Configuring Host (master)
For communication via the function module, first the host (master) must be configured.
Master settings
The configuration of the INTERBUS requires the device description file (EDS file) for the
communication module to be imported to the master configuration software.
The EDS file can be downloaded in the download area on http://www.Lenze.com.

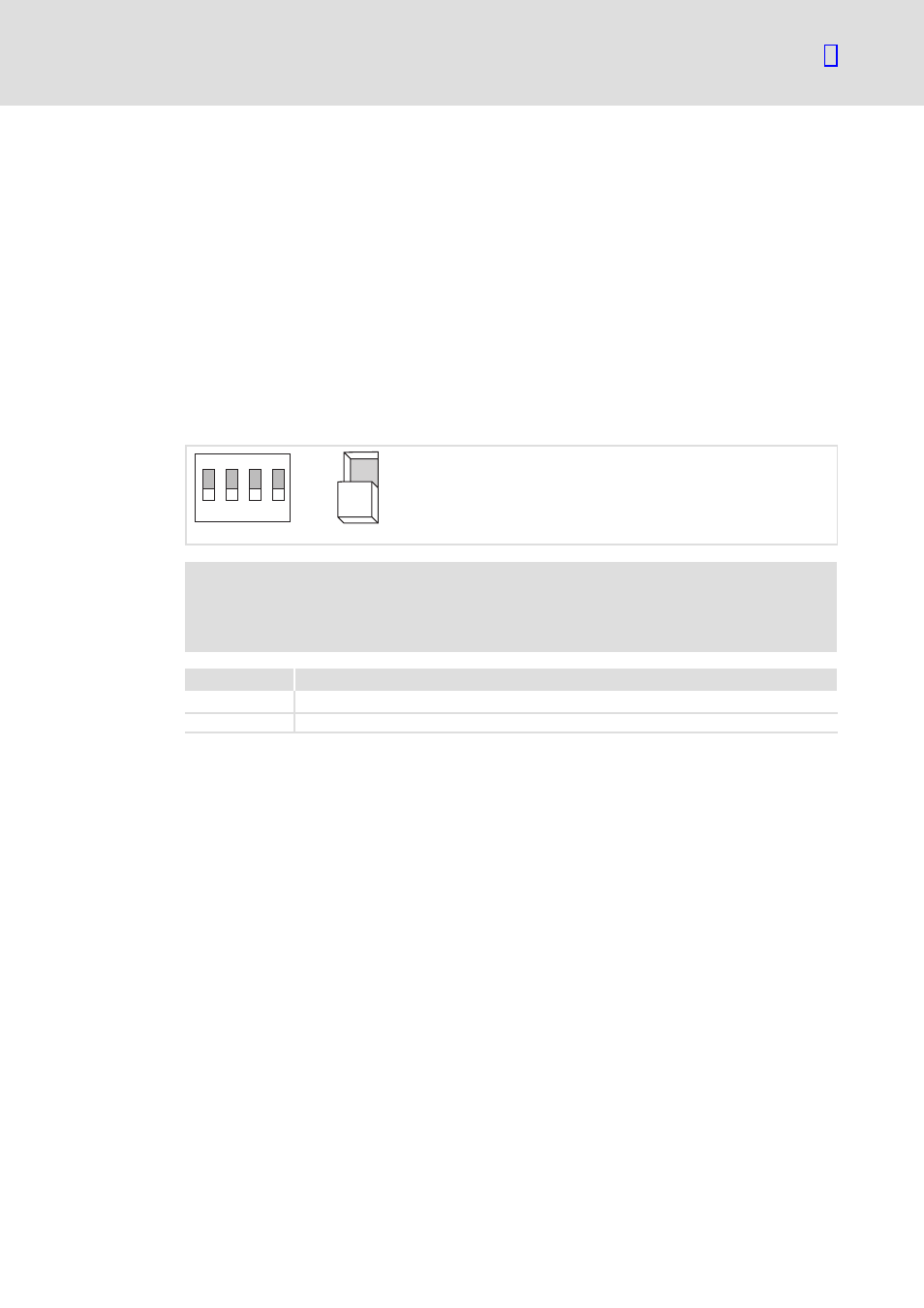

6.4 Setting for last bus node
DIP switch 1
ON
OFF
1
ON
2 3 4
E82ZAFI009
)
Note!
ƒ DIP switch 1 must only be set to OFF for the last physical node.
ƒ Lenze setting: all switches OFF
Position Notes
OFF Standard device with function module is the last bus node
ON Standard device with function module is not the last bus node.
