Diagnostics
LED status displays
9
l
54
EDS82ZAFIC EN 2.0
9
Diagnostics

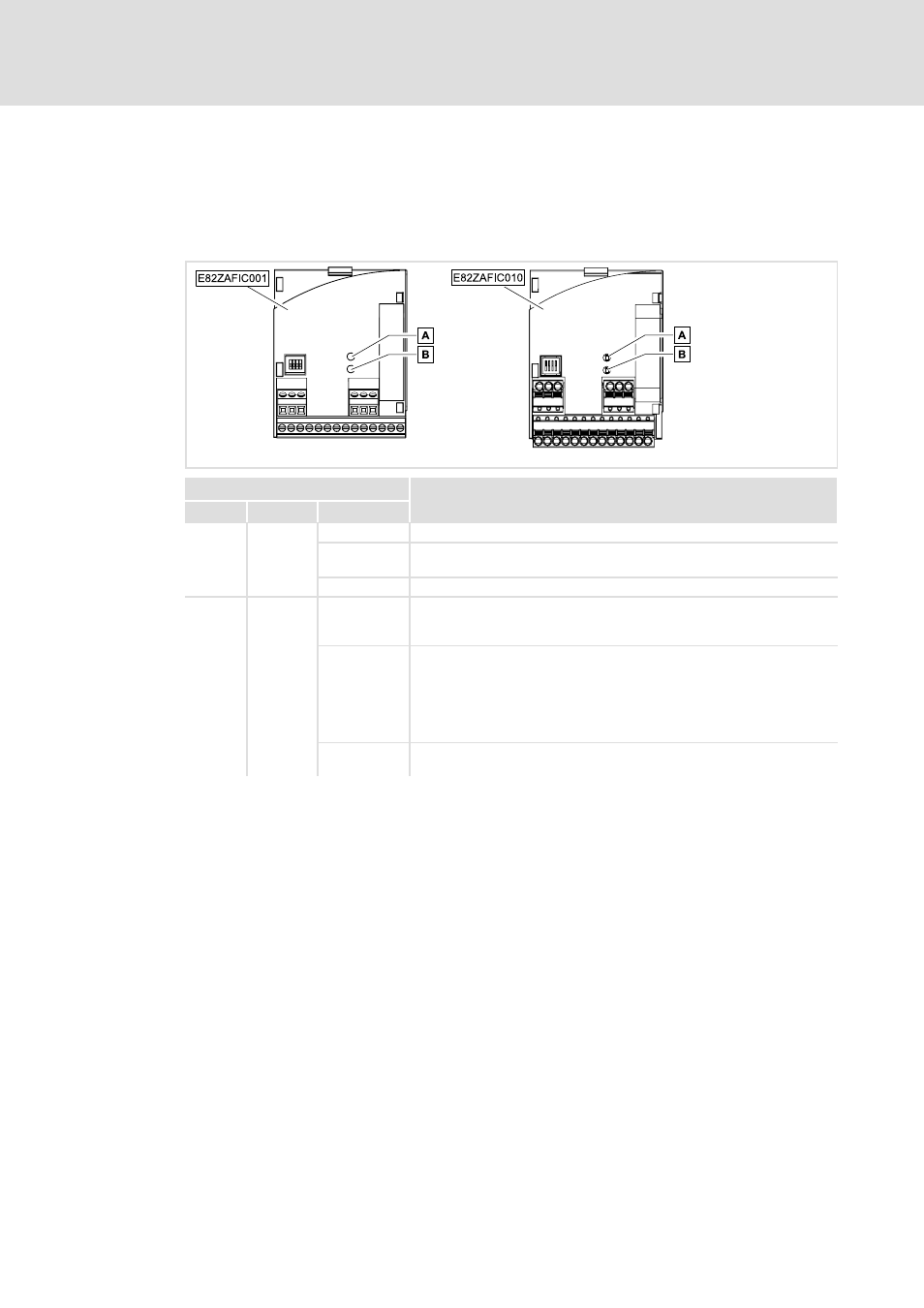

9.1
LED status displays
E82ZAFIxxx, E82ZAFI014B
LED
Description
Pos.
Colour
Condition
A
Yellow
Off
No communication with the INTERBUS master.
Blinking
Communication to the INTERBUS master via the function module is
established.
On
Internal error in the function module
B
Green
Off
l
The function module is not supplied with voltage.
l
The standard device and/or the external voltage supply is/are
switched off.
Blinking
The function module is supplied with voltage but not connected to the
standard device.
Causes:
l
The standard device is switched off.
l
The standard device is in the initialisation phase.
l
The standard device is not available.
On
The function module is supplied with voltage and is connected to the
standard device.
