8 Diagnostics
LED status displays
EDK82ZAFPC-201 DE/EN/FR 6.0
78

H1_Diagnose-Statusanzeige

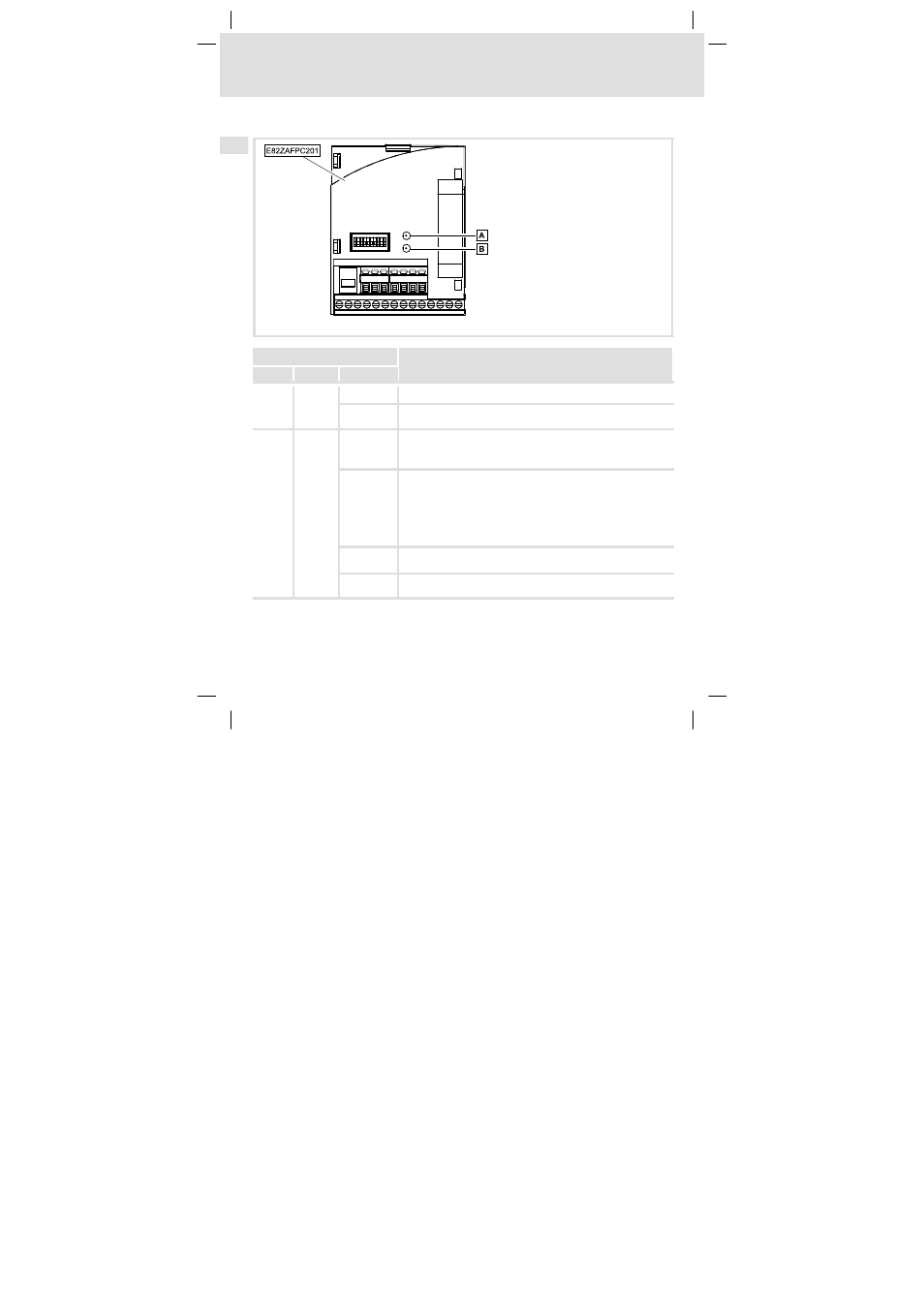

8 Diagnostics LED status displays
E82ZAFP020B
LED
Description Pos. Colour Condition
 Yellow Off No communication with the PROFIBUS master.
Blinking Communication with the PROFIBUS master has been established
via the function module.
 Green Off The function module is not supplied with voltage.
The standard device and/or the external voltage supply is/are
switched off.
Blinking
(const.) The function module is supplied with voltage but has not
established a connection to the standard device.
Causes:
The standard device is switched off.
The standard device is in the initialisation phase.
The standard device is not available.
Blinking
(3x short) Internal error of the function module
On The function module is supplied with voltage and has established
a connection to the standard device.
